Ⅱ. Attachment Ⅰ Equipment Configuration and Relevant Technical Parameters

1. Main Technical Parameters of the Equipment

1.1 Title of the equipment: Water-cooled Strand Pelletizing Plastic Extrusion Granulation Line

1.2 Model of the equipment: HXSJ160-DN

1.3 Applicable raw material: Suitable for the crush material recycling and pelletizing of PP PE HDPE ABS PS, etc.

1.4 Production capacity: 600-850 kg/h depending on the raw material formula

1.5 Equipment installation mode: 'Straight' type or 'T' type.

Ⅲ. Main Technical Features of the Equipment

This machine is special for the crush material recycling and pelletizing of LDPE, HDPE, PP ABS, PS, etc. It can handle convey, crush and granulate altogether which saves a lot of labor during the process. And the film will be heated when crushed which is good for the plasticity of the material and thus good for the quality of the final granule and the capacity. The crusher uses a large power AC motor and thus, even large block material can put into the feeder; And the screw of the main extruder is uniquely designed to facilitate the compressing of the film, the conveying, the plasticity and the venting process. For the temperature control of the barrel, it uses an accurate data temperature controller, large power iron-casting heater, and low noise cooling fan. And this three cooperate together perfectly to control the temperature of the barrel and insure the quality of the granules. Equipped with an advanced low noise reduction gearbox whose gear teeth is very hard and with forced feed lubrication, this can let the machine adapt to high-speed and continuous running.

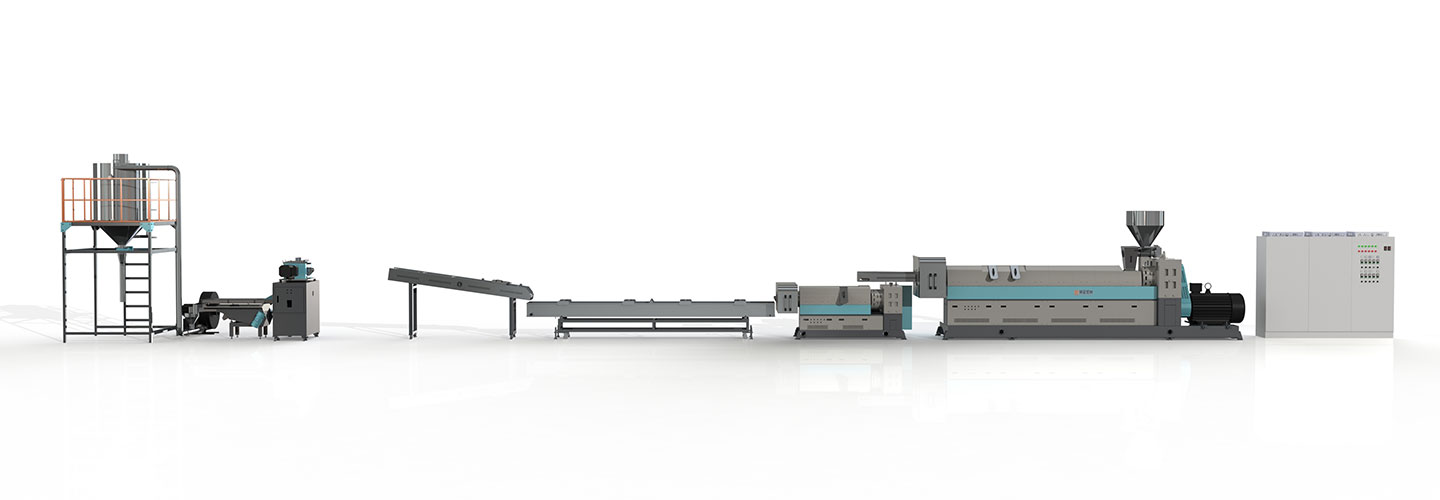

Ⅳ. Appearance Schematic of the Equipment

Ⅴ. Main Technical Parameters of each Part of the Machine and the Configuration

1) Main Extruder

1.1) Main machine: Ø160/30:1 extruder 1 set

1.1.1) Dia of main screw: Ø160mm

1.1.2) L/D: 30:1

1.1.3) Theoretical length of the screw: 4800mm

Effective length of the screw: 4480mm

1.1.4) Exhausting hole: Double venting holes

1.1.5) Material of screw: 38CrMoALA high-quality nitriding steel, with quenching and nitriding treatment, the thickness of nitrogen layer is 0.4-0.7mm, stiffness ≥940HV, brittleness is level two. Feeding opening sprayed with alloy.

1.2) Main barrel

This barrel uses sectional style of connecting, which makes the dismantle much easier and thus, makes it very convenient if need some maintenance.

1.2.1) Material of the barrel: 38CrMoALA high-quality nitriding steel, with quenching and nitriding treatment, the thickness of nitrogen layer is 0.4-0.7mm, stiffness ≥940HV, brittleness is level two. Feeding part sprayed with alloy.

1.2.2) Heating zones: 10 zone

1.2.3) Heating power: 180kw heater voltage is 220V

1.2.4) Heating method: 1-5 zone with high-power electromagnetic heating

1.2.5) Cooling method: feeding part add open hole, barrel with fan cooling

1.3) Reduction gearbox

1.3.1) Model No of gearbox: 395 low noise gearbox

1.3.2) Features of gearbox:

This gearbox boasts the characteristic of stable running, low noise, high bearing capacity, long life-span, easy to dismantle for checking use and so on. The material of the reduction box gear is 20CrMnTi, with a process of forging, quenching, carburizing. And the hardness of the gear surface is up to HRC54~62. After digital grinding process, the gear’s size is with high accuracy, and the gears contact smoothly and therefore, with high transmission efficiency. There is a large-thrust self-aligning roller bearing which can bear the axial thrust from the working screw. It uses a lube pump to lubricate the place needed and meanwhile, use a high-efficiency water cooling system to cool the lube.

1.4) Changing mesh and Die head

The die panel has been treated by high-frequency quenching. And then, ground to make it level.

1.4.1) Operating means: Hydraulic double mesh, can be changed with the machine running.

1.4.2) Size of the mesh: dia 350mm, round shape.

1.4.3) Heating zone: 2 zone

1.4.4) Die power: 14kw heater voltage is 220V

1.4.5) Heating means: With heating tube and pressure sensor

1.5) Main Motor

1.5.1) Watt of main motor: 200kw-4 poles,

1.5.2) Control means: with 200kw inverter

Ⅵ. Auxiliary extruder Ø160/12:1 extruder 1 set

2.1) Auxi Screw

2.1.1) Dia of Auxi Screw: Ø160mm

2.1.2) L/D: 12:1

2.1.3) Theoretical length of the screw: 2000mm

Effective length of the screw: 1780mm

2.1.4) Venting type: single venting hole

2.1.5) Material of screw: 38CrMoALA high-quality nitriding steel, with quenching and nitriding treatment, the thickness of nitrogen layer is 0.4-0.7mm, stiffness ≥940HV, brittleness is level two.

2.2) Auxi Barrel

2.2.1) Heating zones: 3 zone

2.2.2) Heating power: 22kw heater voltage is 220V

2.2.3) Heating means: Stainless steel-quartz heater

2.2.4) Barrel cooling method: copper tube winding water cooling (electromagnetic valve automatic control)

1.2) Auxi barrel

This barrel uses sectional style of connecting, which makes the dismantle much easier and thus, makes it very convenient if need some maintenance.

1.2.1) Material of the barrel: 38CrMoALA high-quality nitriding steel, with quenching and nitriding treatment, the thickness of nitrogen layer is 0.4-0.7mm, stiffness ≥940HV, brittleness is level two.

3) Reduction gearbox

3.1) Model No of gearbox: 280 low noise

3.2) Features of gearbox:

This gearbox boasts the characteristic of stable running, low noise, high bearing capacity, long life-span, easy to dismantle for checking use and so on. The material of the reduction box gear is 20CrMnTi, with a process of forging, quenching, carburizing. And the hardness of the gear surface is up to HRC54~62. After digital grinding process, the gear’s size is with high accuracy, and the gears contact smoothly and therefore, with high transmission efficiency. There is a large-thrust self-aligning roller bearing which can bear the axial thrust from the working screw. It uses a lube pump to lubricate the place needed and meanwhile, use a high-efficiency water cooling system to cool the lube.

4) Changing mesh and Die head

4.1. Operating means: 180*250 two channel mesh changer, filtering area is 3000cm²

4.2. Size of the mesh: dia 180 mm, width 250mm, depth 10mm

4.3. Heating zone: 2 zone

4.4. Die power: 12KW 220 V

4.5. Heating means: stainless steel heating rod, specification φ19.8×430mm
