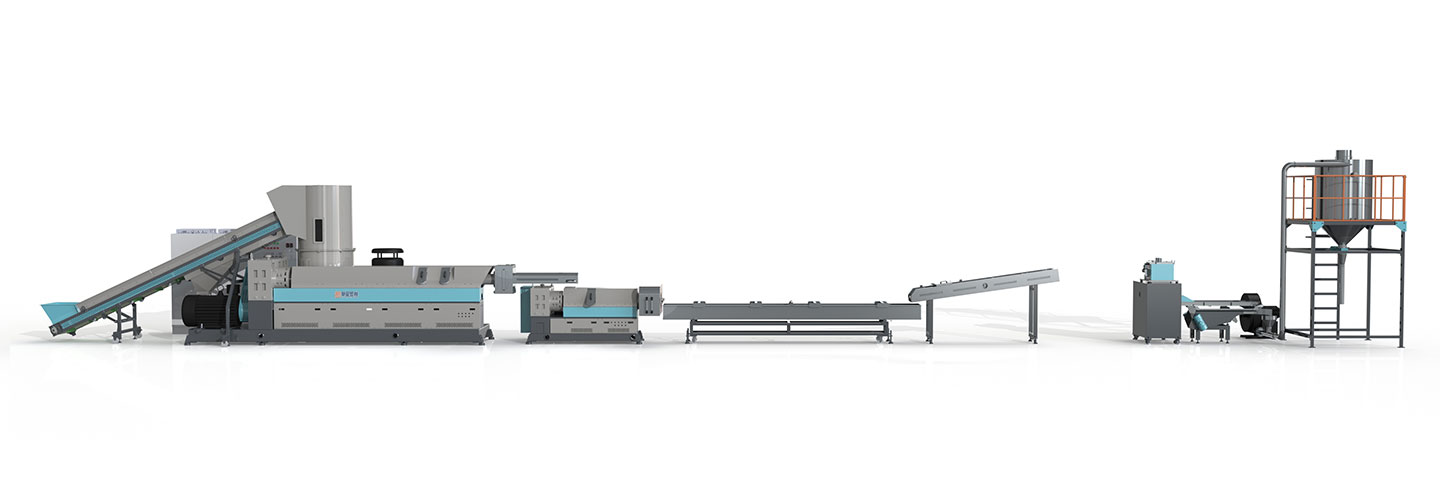

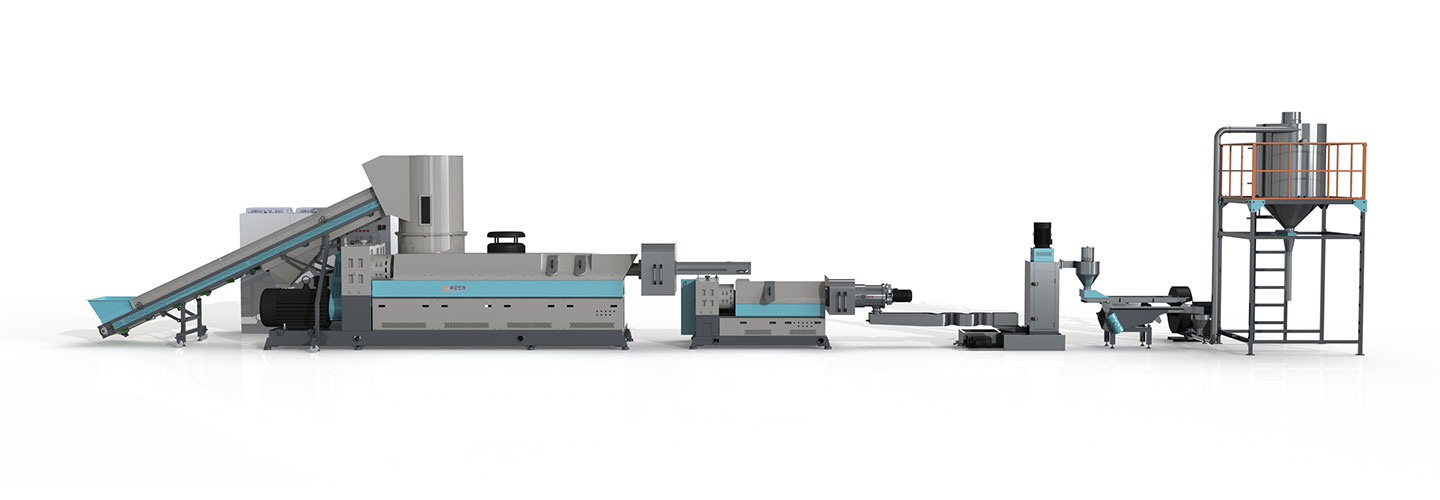

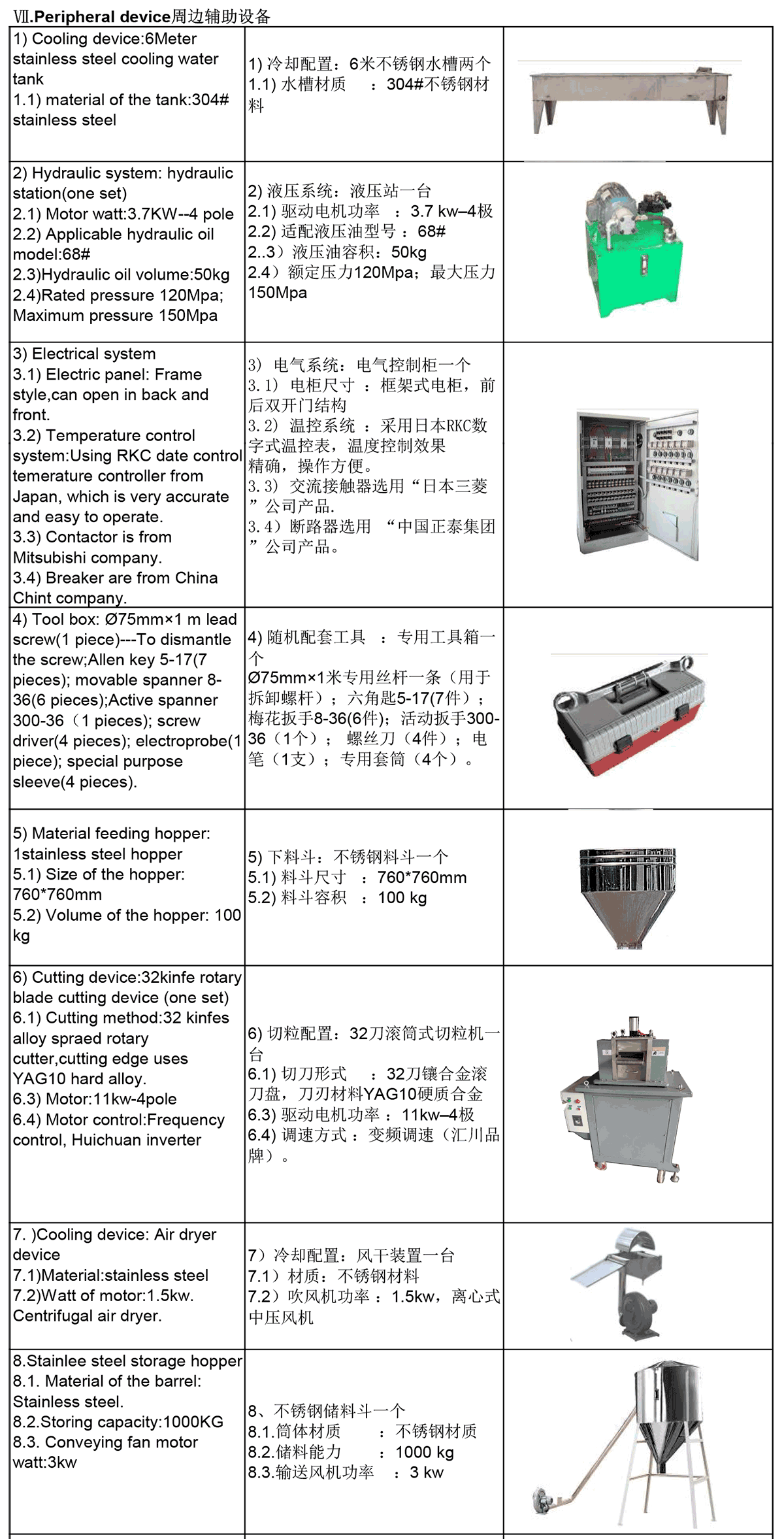

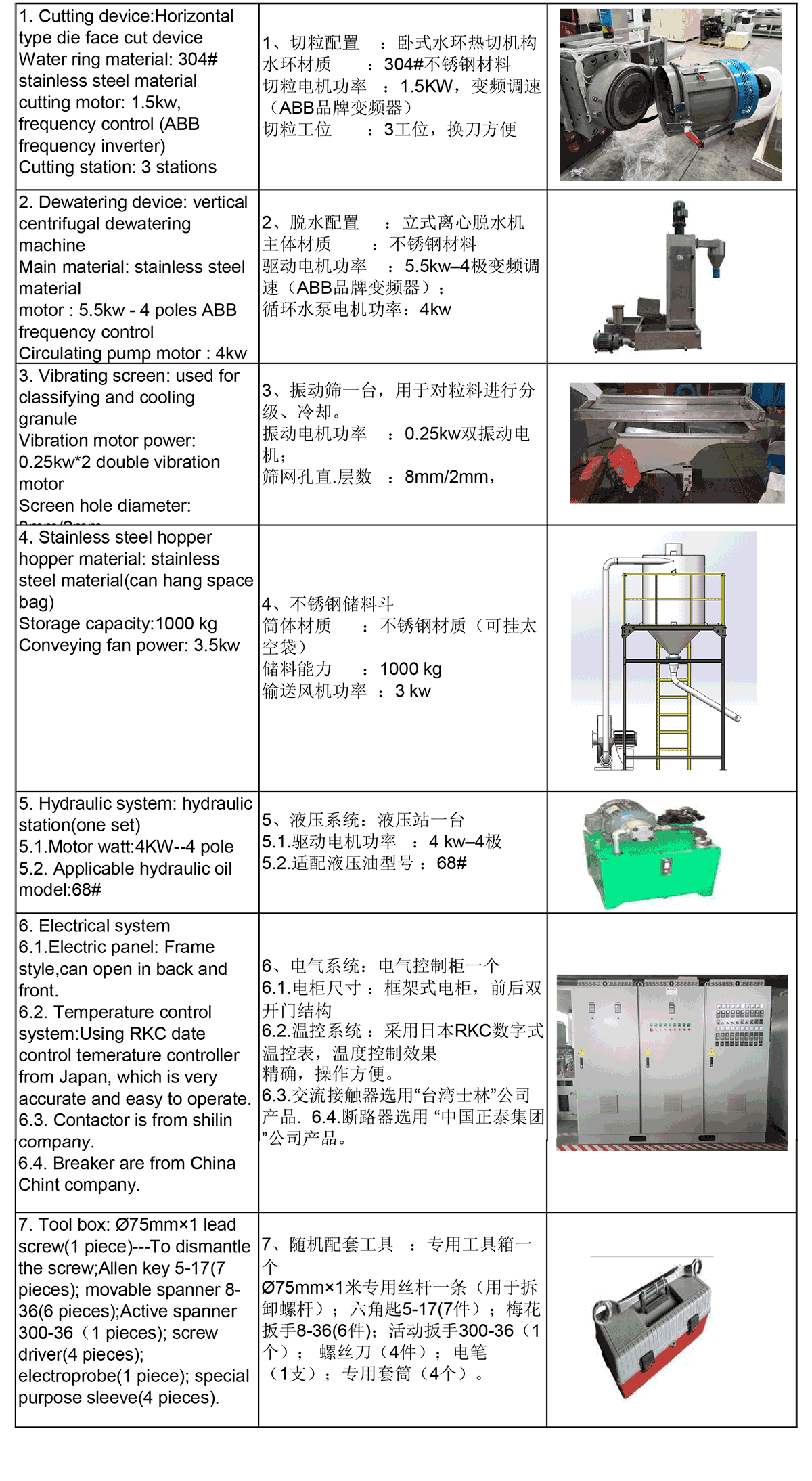

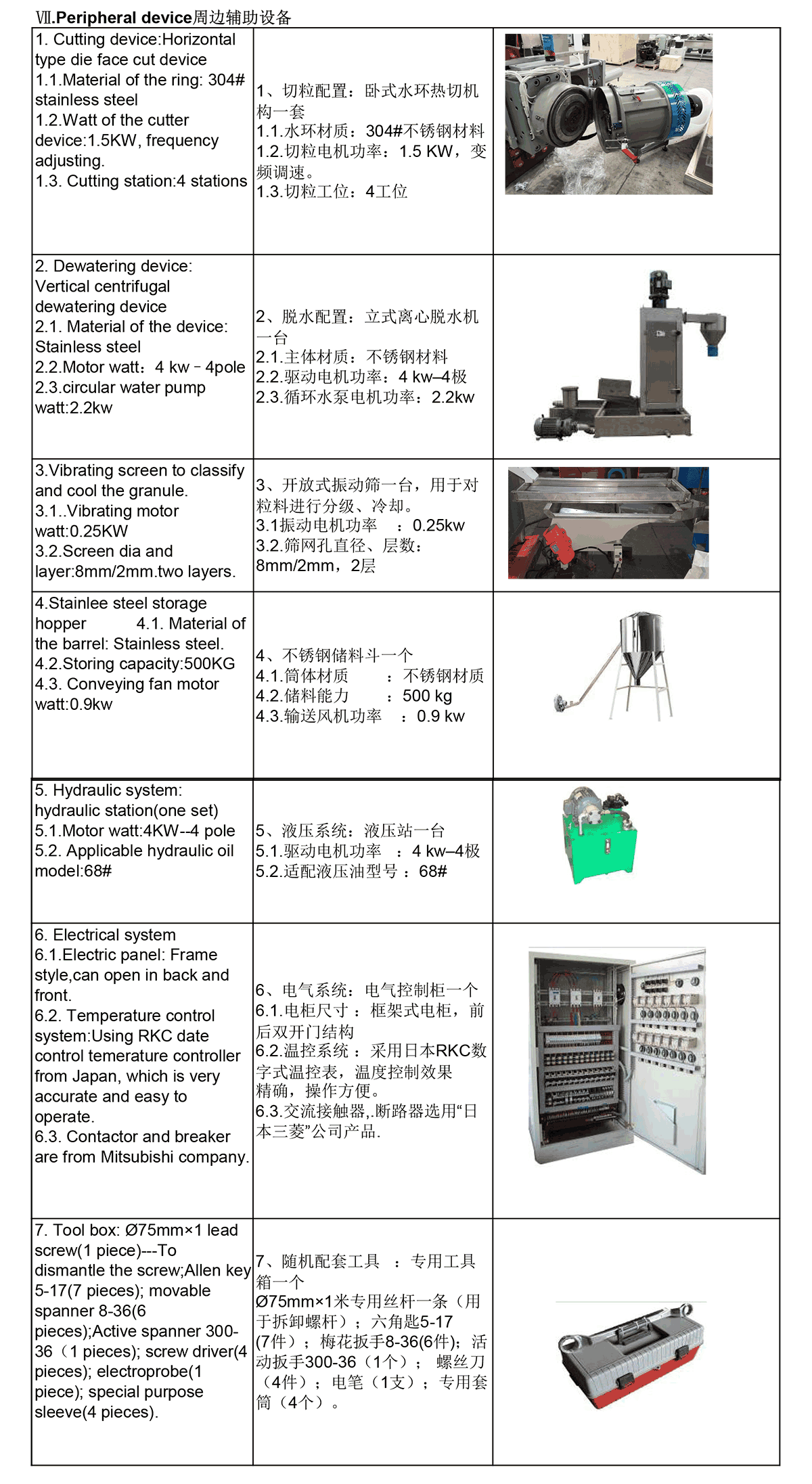

II. Equipment Configuration and Relevant Technical Parameters I. Main Technical Parameters of the Equipment 1. Equipment Title: Three-in-One Function Film Recycling Granulation Extrusion Line 2. Model of the Equipment: HXSJ150DWM11 3. Applicable Raw Material: Suitable for the recycling and pelletizing of PE, LDPE, HDPE films 4. Production Capacity: 500-680 kg/h, depending on the raw material formula III. Main Technical Features of the Equipment This machine is specialized in the recycling and granulating of HDPE, LDPE, etc. It can handle conveying, crushing, and granulating all at once, saving a lot of labor during the process. The film is heated when crushed, which is beneficial for the plasticity of the material and thus enhances the quality of the final granules and production capacity. The crusher uses a large-power AC motor, allowing even large pieces of material to be fed directly; the main extruder's screw is uniquely designed to facilitate the compression, conveying, plasticizing, and venting of film scraps. For barrel temperature control, it uses an accurate digital temperature controller, large-power cast iron heater, and low-noise cooling fan, working together perfectly to control the barrel temperature and ensure granule quality. Equipped with advanced low-noise reduction gearboxes with hardened gears and forced lubrication, this allows the machine to adapt to high-speed continuous operation. IV. Appearance Schematic of the Equipment (Equipment Image) V. Main Technical Parameters of Each Part of the Machine and Configuration 1. Full Automatic Conveying Belt: 1 set - Belt Width: 650mm - Belt Length: 4000mm - Motor Power: 0.75kw, using cycloid pinwheel reduction method - Motor Control: Coordinated control with the main machine and crusher; operates or stops according to the load of the main machine and crusher 2. Crusher-feeder: 1 set - Barrel Material: Stainless steel - Fixed Blade: 9 pieces - Rotary Blade: 6 pieces - Blade Material: 9SiCr alloy - Motor Power: 90KW-6 poles - Motor Control: ABB inverter 3. Main Extruder - Main Machine: Ø150/30:1 extruder, 1 set - Diameter of Main Screw: Ø150 - L/D: 28:1 - Theoretical Length of Screw: 4500mm - Exhausting Hole: Single - Screw Material: 38CrMoALA high-quality nitriding steel, quenched and nitrided, nitrogen layer thickness is 0.4-0.7mm, hardness more than 940HV, brittleness level 2. The edge of the screw at the feed opening is sprayed with alloy. - Main Barrel: - Barrel Material: 38CrMoALA high-quality nitriding steel, quenched and nitrided, nitrogen layer thickness is 0.4-0.7mm, hardness more than 940HV, brittleness level 2 - Heating Zones: 9 zones - Heating Power: 93kw - Heating Method: Large power iron-casting heater for zones 2-5; ceramic heaters with fins for heat dissipation are used in other temperature zones, independent air box and fan cooling - Cooling Method: Water ring cooling system installed at the feed opening, high-efficiency low-noise fan automatic cooling for the barrel - Cooling Power: 0.18KW × 7 zones = 1.3KW - Reduction Gearbox: - Gearbox Model: 375 gearbox - Features: Stable running, low noise, high bearing capacity, long lifespan, easy to dismantle for checking use, etc. Gear material is 20CrMnTi, forged, quenched, carburized, surface hardness up to HRC54~62. After digital grinding, the gear size has high accuracy, smooth contact, and high transmission efficiency. There is a large-thrust self-aligning roller bearing that can bear axial thrust from the working screw. Uses a lube pump to lubricate needed areas and simultaneously uses a high-efficiency water cooling system to cool the lube. - Changing Mesh and Die Head: - Die Panel: Thickened and treated by high-frequency quenching, then ground to make it level - Operating Means: Hydraulic double mesh, can be changed while the machine is running - Mesh Size: 350×350mm, square shape - Heating Zone: 2 zones - Die Power: 22KW - Heating Means: High-watt iron-casting heating panel - Main Motor: - Motor Power: 132kw-4 poles - Control Means: ABB inverter VI. Auxiliary Extruder: Ø150/12:1 extruder, 1 set - Auxiliary Screw: - Diameter of Auxiliary Screw: Ø150mm - L/D: 12:1 - Theoretical Length of Screw: 1800mm - Venting Type: Single type - Screw Material: 40Cr high-quality nitriding steel, nitrided treatment, nitrogen layer thickness is 0.4mm-0.7mm, hardness more than 740HV, brittleness level 2 - Auxiliary Barrel: - Heating Zones: 2 zones - Heating Power: 23kw - Heating Means: Ceramic heater with heat fin, independent air box and fan to cool - Cooling Method: Copper tube circling water to cool - Barrel Material: 40Cr high-quality nitriding steel, nitrided treatment, nitrogen layer thickness is 0.4mm-0.7mm, hardness more than 740HV, brittleness level 2 - Reduction Gearbox: - Gearbox Model: 250 type low-noise gearbox - Features: Stable running, low noise, high bearing capacity, long lifespan, easy to dismantle for checking use, etc. Gear material is 20CrMnTi, forged, quenched, carburized, surface hardness up to HRC54~62. After digital grinding, the gear size has high accuracy, smooth contact, and high transmission efficiency. There is a large-thrust self-aligning roller bearing that can bear axial thrust from the working screw. Uses a lube pump to lubricate needed areas and simultaneously uses a high-efficiency water cooling system to cool the lube. - Changing Mesh and Die Head: - Die Panel: Thickened and treated by high-frequency quenching, then ground to make it level - Operating Means: Hydraulic double mesh, can be changed while the machine is running - Mesh Size: 350×350mm, round shape - Material Outlet: 105 holes, ￠3.5mm - Heating Zone: 2 zones - Die Power: 14kw - Heating Means: High-watt iron-casting heating panel - Auxiliary Motor: - Motor Power: 37KW-4 poles - Control Means: Configured with ABB inverter Peripheral Auxiliary Equipment
