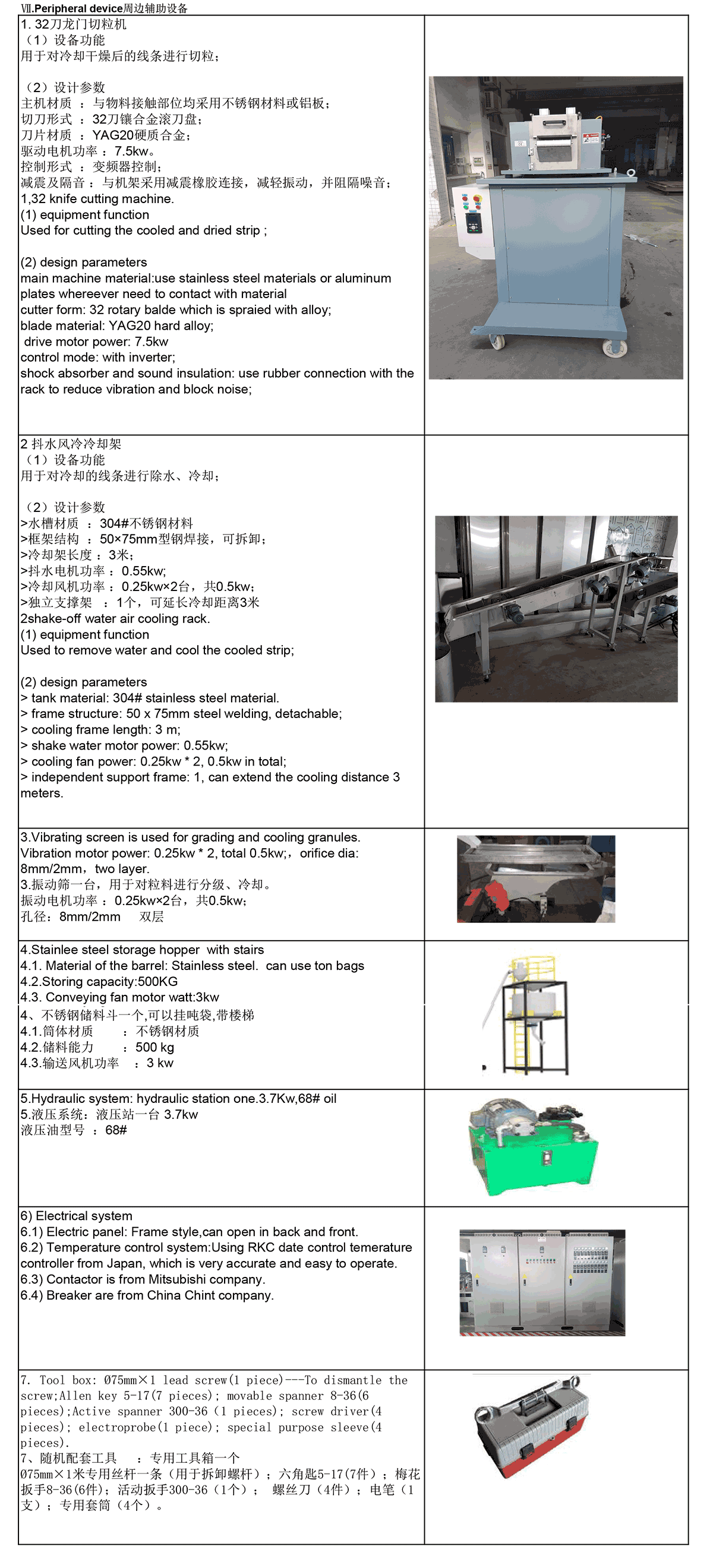

II. Equipment Configuration and Relevant Technical Parameters I. Main Technical Parameters of the Equipment 1. Title of the equipment: Three-in-One Function Film Recycling Granulation Extrusion Line 2. Model of the equipment: HXSJ150DNM11 3. Applicable raw material: Suitable for the recycling and pelletizing of PP film. 4. Production capacity: 500kg/h--650kg/h depending on the raw material formula. III. Main Technical Features of the Equipment This equipment is mainly used for (PE PP) film material regeneration granulation. The unit integrates raw material conveying, extrusion granulation, and other functions. The production process saves the labor of repeated transportation of raw materials, is conducive to compression plasticization, and greatly improves production capacity and plasticizing quality. The crushing barrel is driven by a high-power AC motor, allowing bulk materials to be directly fed without a crushing process. The screw structure of the main extruder is specially designed, which is conducive to the compression, transportation, plasticization, and exhaust of the film crushing materials, improving granulation quality. Barrel temperature control adopts digital high-precision temperature control meters, high-power cast iron heaters, and low-noise cooling fans to precisely control barrel temperature, ensuring material plasticizing quality. Equipped with an advanced hard-tooth surface with low noise and forced lubrication reducer to ensure the main machine is suitable for continuous running at high speed. V. Main Technical Parameters of Each Part of the Machine and Configuration 1. Full automatic conveying belt: 1 set - Belt's width: 650mm - Belt's length: 5000mm - Watt of belt's motor: 0.75kw, using cycloid curve pinwheel reduction method - Motor control ways: Coordinate control with the main machine and the crusher; work or stop according to the load of the main machine and the crusher. 2. Crusher-feeder: 1 set - Fixed blade: 9 pieces - Rotary blade: 9 pieces - Material of blade: 9SiCr alloy - Watt of Motor: 90KW-6 Pole - Motor control method: Huichuan inverter 3. Main extruder - Main machine: Ø150/30:1 extruder, 1 set - Dia of main screw: Ø150 - L/D: 30:1 - Theoretical length of the screw: 4500mm - Exhausting hole: Double - Material of screw: 38CrMoALA high-quality nitriding steel, along with quenching, nitriding, and the thickness of the nitrogen layer is 0.4-0.7MM, hardness is more than 940HV, brittleness is level 2. For the feed opening place, the edge of the screw is sprayed with alloy with thickness 1.5mm. - Main barrel: - Material of the barrel: 38CrMoALA high-quality nitriding steel, along with quenching, nitriding, and the thickness of the nitrogen layer is 0.4-0.7MM, hardness is more than 940HV, brittleness is level 2. - Heating zones: 10 zone 90kW - Area 2-6 uses cast iron to increase the power heating ring; (the first zone stainless steel quartz heater) the other area adopts ceramic heater with heat dissipation fins, independent air box, and fan cooling; - Cooling: water cooling for the feed opening part - Reduction gear box: - Model No of gear box: 375 national standard gear box - Features of gear box: This gear box boasts the characteristic of stable running, low noise, high bearing capacity, long life-span, easy to dismantle for checking use, etc. The material of the reduction box gear is 20CrMnTi, with the process of forging, quenching, carburizing. And the hardness of the gear surface is up to HRC54~62. After the digital grinding process, the gear’s size is with high accuracy, and the gears contact smoothly and therefore, with high transmission efficiency. There is a large-thrust self-aligning roller bearing which can bear the axial thrust from the working screw. It uses a lube pump to lubricate the place needed and meanwhile, use a high-efficiency water cooling system to cool the lube. 4. Changing mesh and Die head - The die panel has been thickened and treated by high-frequency quenching. And then, ground to make it level. - Operating means: Hydraulic double mesh, can be changed with the machine running. - Size of the mesh: 350mm, Round shape. - Heating zone: 2 zone - Die power: 12KW - Heating means: Stainless steel quartz heater 5. Main Motor - Watt of main motor: 132kw-4Pole, inverter control VI. Auxiliary extruder Ø150/12:1 extruder, 1 set - Auxi Screw - Dia of Auxi Screw: Ø150mm - L/D: 12:1 - Theoretical length of the screw: 1800mm - Venting type: Single type - Material of screw: Screw material is 38CrMoALA high-quality nitriding steel processed by adjusting, milling, nitrifying, polishing, and fine grinding. The depth of the nitride layer is 0.4-0.7mm, the hardness is greater than 940HV, and the brittleness level 2. - Auxi Barrel - Heating zones: 3 ZONES 22kw - Heating means: adopts ceramic heater with heat dissipation fins, independent air box, and fan cooling; - Material of barrel: 38CrMoALA high-quality nitriding steel, with nitriding treatment, the thickness of the nitrogen layer is 0.4mm-0.7mm, hardness is more than 740HV, brittleness is level 2. - Reduction gear box - Model No of gear box: 250 national standard gear box - Features of gear box: This gear box boasts the characteristic of stable running, low noise, high bearing capacity, long life-span, easy to dismantle for checking use, etc. The material of the reduction box gear is 20CrMnTi, with the process of forging, quenching, carburizing. And the hardness of the gear surface is up to HRC54~62. After the digital grinding process, the gear’s size is with high accuracy, and the gears contact smoothly and therefore, with high transmission efficiency. There is a large-thrust self-aligning roller bearing which can bear the axial thrust from the working screw. It uses a lube pump to lubricate the place needed and meanwhile, use a high-efficiency water cooling system to cool the lube. - Changing mesh and Die head - Product features: the plastic noodle will not break when changing the mesh. - Operating means: 180*250 two-channel mesh changer, filtering area is 3000cm² - Second machine Motor - Watt of main motor: 37kw-4Pole, With huichuan inverter
