Supply Asahi Organic Materials Valves, ASAHI AV Valves, RPP Pneumatic Diaphragm Valves

Supply Asahi Organic Materials Valves, ASAHI AV Valves, RPP Pneumatic Diaphragm Valves, RPP Diaphragm Valves

Product Tags: Asahi Organic Materials Valves ASAHI AV Valves RPP Plastic Diaphragm Valves Corrosion-Resistant Diaphragm Valves Pneumatic Diaphragm Valve Specifications

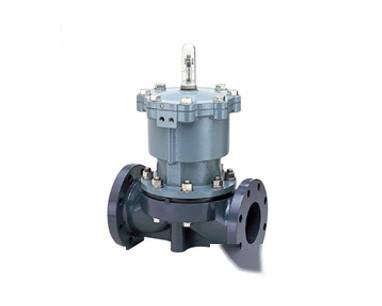

1. Introduction to Asahi Organic Materials Pneumatic Diaphragm Valve:

The Asahi Organic Materials Pneumatic Diaphragm Valve consists of a diaphragm valve and a pneumatic actuator. It uses compressed air as power to regulate the flow of fluid media in the process pipeline. Due to its structure, which features a valve body with corrosion-resistant lining and a corrosion-resistant diaphragm, as well as a structure without packing box and with elastic diaphragm as the throttling element, and a smooth valve body flow path, the pneumatic diaphragm valve has advantages such as low operating force, large flow capacity, no external leakage, convenience and reliability, fire and explosion resistance, making it widely applicable for flow regulation of strong acids, strong bases, highly corrosive, high viscosity, containing particles, fibrous, as well as toxic and non-polluting media in industrial automation systems.

2. Features of Asahi Organic Materials Pneumatic Diaphragm Valve:

The opening and closing of the pneumatic plastic diaphragm valve is achieved by the pressure from the pipeline acting on the reinforced rubber diaphragm. When the pressure medium enters the valve control chamber, the diaphragm is pressed down, closing the valve passage. When the control chamber pressure is released to the atmosphere or downstream, the diaphragm rises, opening the valve passage. The valve has no valve stem, seal pad, orientation seat, etc., and the only moving part in the passage is the diaphragm, so there is no risk of rusting or seizing, providing higher stability. Various structural forms and control forms can be adapted to different fluid control needs.

Asahi Organic Materials Valves, ASAHI AV Valves, Asahi Organic Materials Plastic Diaphragm Valves, Asahi Organic Materials Plastic Ball Valves, Asahi Organic Materials Plastic Shut-off Valves, Asahi Organic Materials Plastic Butterfly Valves, Asahi Organic Materials Plastic Check Valves, Asahi Organic Materials Plastic Bottom Valves, Asahi Organic Materials Plastic Sight Glasses, ASAHI AV Plastic Diaphragm Valves, ASAHI AV Plastic Ball Valves, ASAHI AV Plastic Shut-off Valves, ASAHI AV Plastic Butterfly Valves, ASAHI AV Plastic Check Valves, ASAHI AV Plastic Bottom Valves, ASAHI AV Plastic Sight Glasses

Asahi Organic Materials Valve Ordering Instructions:

1. ① Product Name ② Model ③ Diameter ④ Pressure ⑤ Valve Body Material ⑥ Connection Method ⑦ Applicable Temperature ⑧ Whether with Accessories

So that we can correctly select the model for you. For special sizes and specifications, please contact us, provide detailed parameters, and custom production is available.

2. If the model has been selected by the design unit, please order directly from our sales department according to the product model.

3. When the usage scenario is very important or the environment is complex, please provide design drawings and detailed parameters of the fluid medium.

Asahi Organic Materials Valve official website: www.asahi-valve.com Asahi Organic Materials corporate email: asahi-valve@foxmail.com

For inquiries, please call Asahi Organic Materials at 021-51870673, mobile 18916907316, and we will do our best to provide you with quality service.
