From Plastic Mixers to Closed-Loop Industrial Chain, Bell Machinery Crafts Excellence with Ingenuity

Jiangsu Bell Machinery Co., Ltd.It is a leading professional manufacturer of plastic machinery in China, a national-level specialized and innovative key "little giant" enterprise, a national high-tech enterprise, and a vice-chair unit of the China Plastic Machinery Industry Association. Bell’s product lines are rich and focused on core areas. The main products cover PET bottle washing production lines, PP/PE soft material washing production lines, ABS/PS/household appliance/battery shell and other engineering plastic washing production lines, as well as various shredding, granulating, and pelletizing equipment, supporting the resource recycling industry. The company continuously introduces high-end technologies and management talents from both domestic and international industries to solve key technical problems such as low output, high energy consumption, and short service life. It intensifies efforts to overcome the "bottleneck technologies" of core technologies and processes, with the development vision of becoming the most quality-oriented intelligent equipment leader, supporting China’s intelligent manufacturing.

The company's products have a wide export range, reaching countries and regions across Asia, Europe, America, South America, and Africa. The company has established overseas offices in more than ten countries, including Russia, the United States, Brazil, Turkey, and Saudi Arabia, to conveniently serve customers nearby. Several products have obtained international CE certification, American UL certification, and other authoritative certifications, with their quality being highly recognized by both domestic and international customers.

The company adheres to the values of "Quality First, Integrity as Trust, and Creating Win-Win Outcomes," with the vision of becoming "the leading provider of high-quality intelligent equipment." Focusing on energy conservation, environmental protection, and the dual-carbon goals, the company is committed to enhancing new productive forces through technological innovation, providing customers with tailored solutions, and contributing to the advancement of intelligent manufacturing in China and the low-carbon development of the global plastics industry.

— 1 —

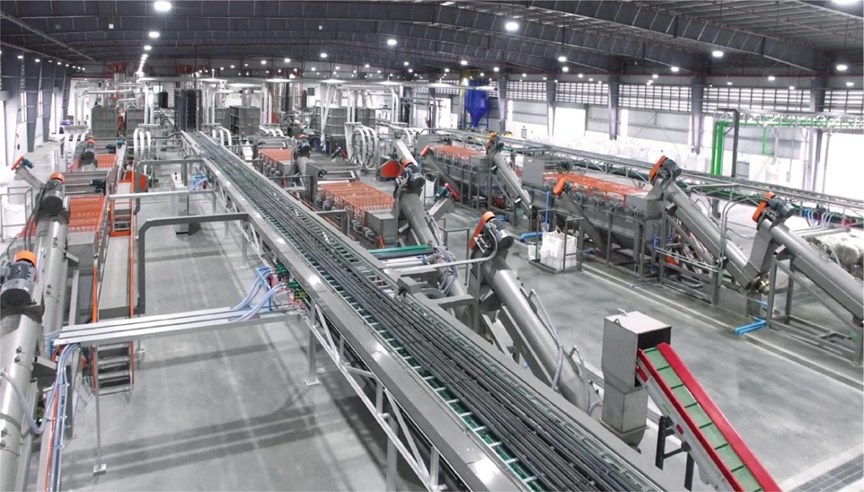

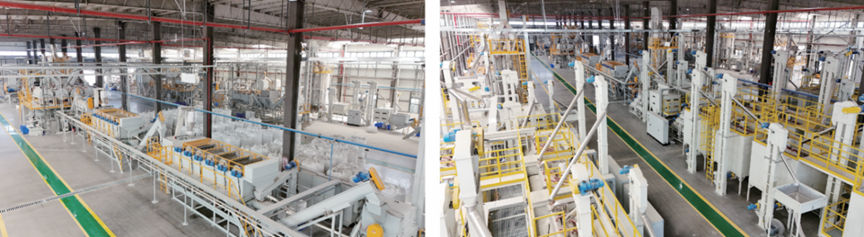

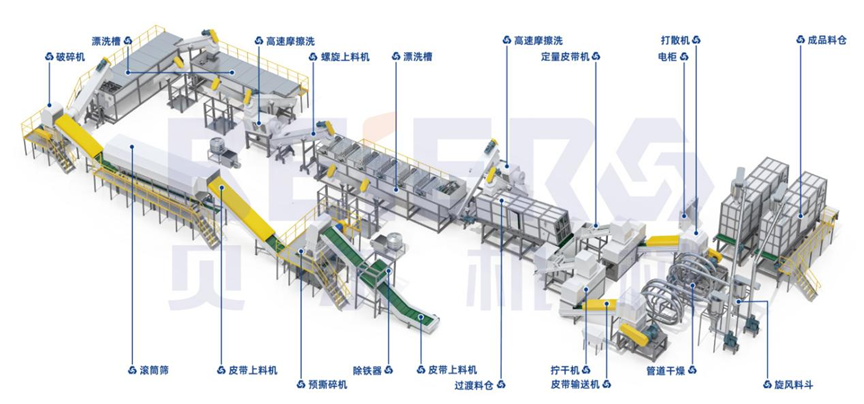

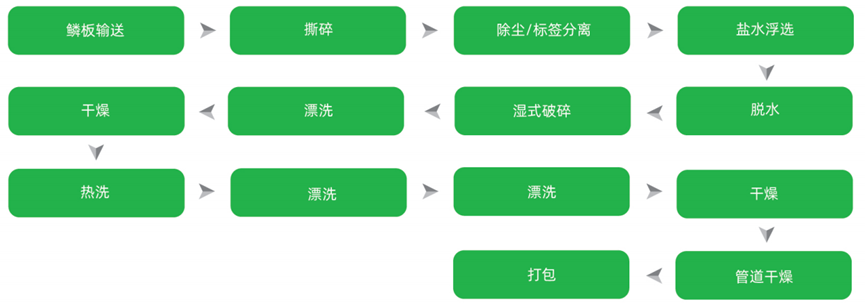

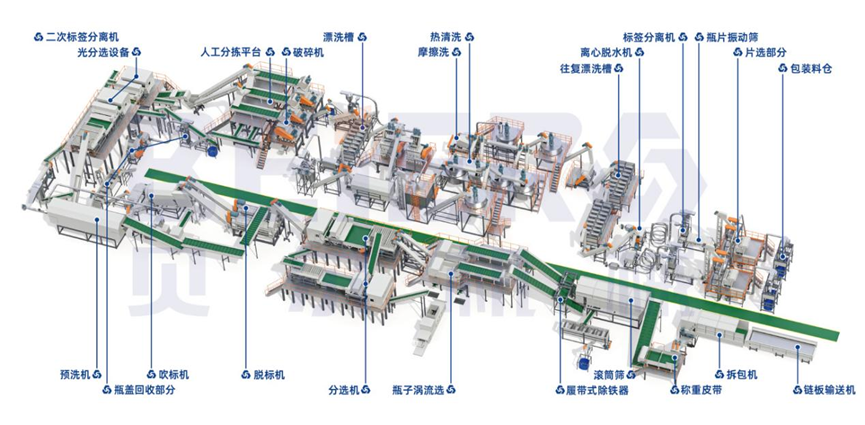

PET Bottle Washing Production Line

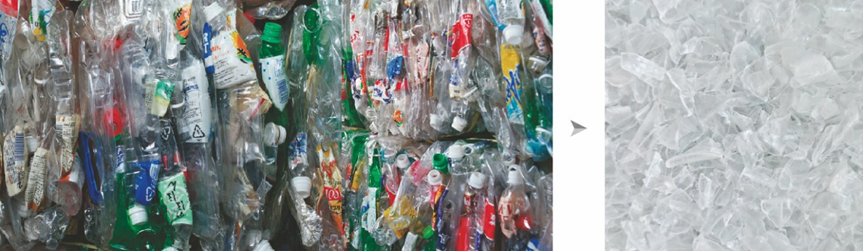

Waste PET bottles are an important raw material for global plastic recycling. After processing, they can be converted into various products, generating revenue for manufacturers. However, the quality of bottle materials varies greatly across regions, with some in poor condition, driving the continuous development of PET washing, recycling, and sorting technologies to maximize reuse.

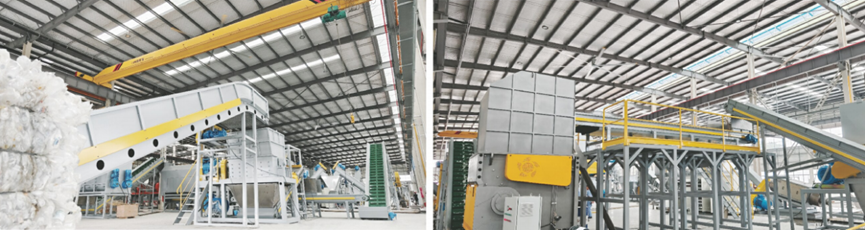

The recycling business division of Jiangsu Bell Machinery helps clients transform inferior raw materials into high-quality outcomes. Currently, 226 production lines serve 34 countries and regions. With extensive experience, advanced technology, sophisticated equipment, and comprehensive services, we meet the diverse needs of our customers.

— 2 —

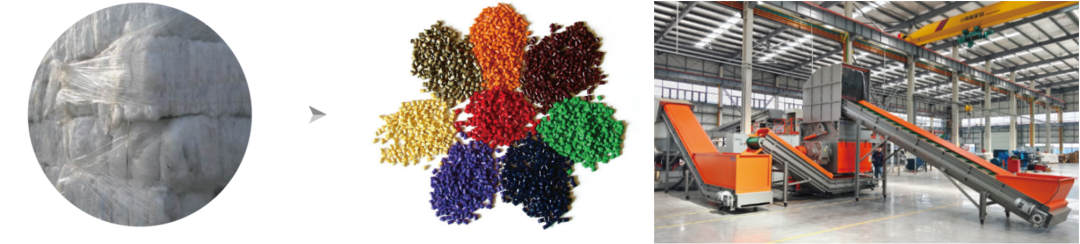

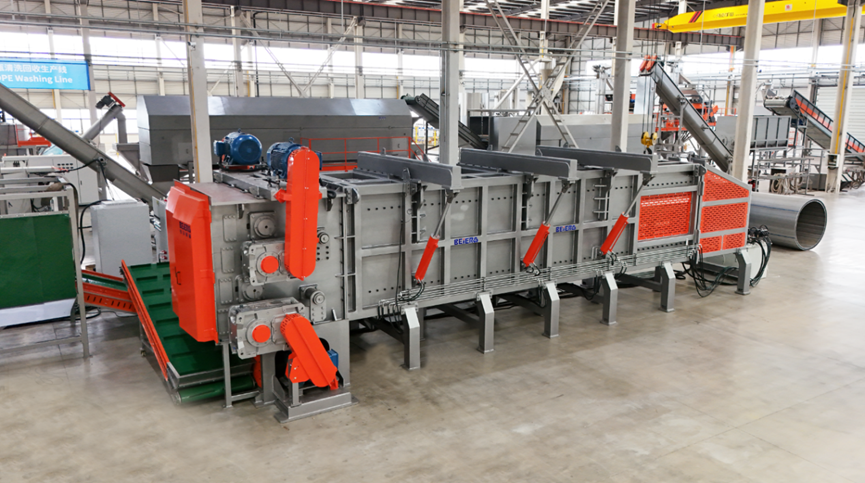

PP/PE Soft Material Cleaning Production Line

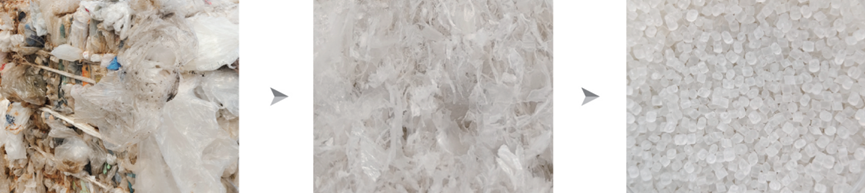

Consumer-grade film accounts for the majority of soft material recycling, including PE (packaging, garbage bags, etc.), PP (woven bags, etc.), and PET strapping, among others, with some being multilayer films. Due to different collection and storage methods, the state of waste film is complex. When recycling and washing, factors such as moisture content, impurities, and product requirements must be considered in order to design an appropriate solution.

Jiangsu Bell Machinery’s soft material cleaning solution adopts the latest achievements from a European team, enabling highly efficient cleaning of most soft materials. The equipment has a large processing capacity and can provide customized solutions tailored to clients, helping them turn waste into treasure, create profits, and achieve a win-win outcome.

— 3 —

PP/PE Hard Material Washing Production Line

The primary raw materials for hard material cleaning are various types of hollow-formed products, which are important applications for the return on investment and results of recycling companies. These include PE types (such as milk bottles, daily chemical bottles, and PET bottle caps and rings), as well as PP types.

Jiangsu Bell Machinery's cleaning equipment can handle bottles, packaging materials, etc., and after pre-cleaning, crushing, and hot cleaning, they can be directly conveyed to its granulation system for recycling. The company can provide overall solutions and turnkey projects.

— 4 —

Waste Home Appliance Plastic Crushing and Washing Line

The crushing, cleaning, and recycling operations for recycled waste household appliance plastic shells, such as hard plastics from TVs, refrigerators, and air conditioners.

According to the characteristics of hard plastic.(ABS/HIPS/PP) provides targeted recycling solutions for plastics from waste home appliances. It offers users various complete recycling solutions, such as crushing, washing, and granulating, from the perspectives of cost, output, and production process.

— 5 —

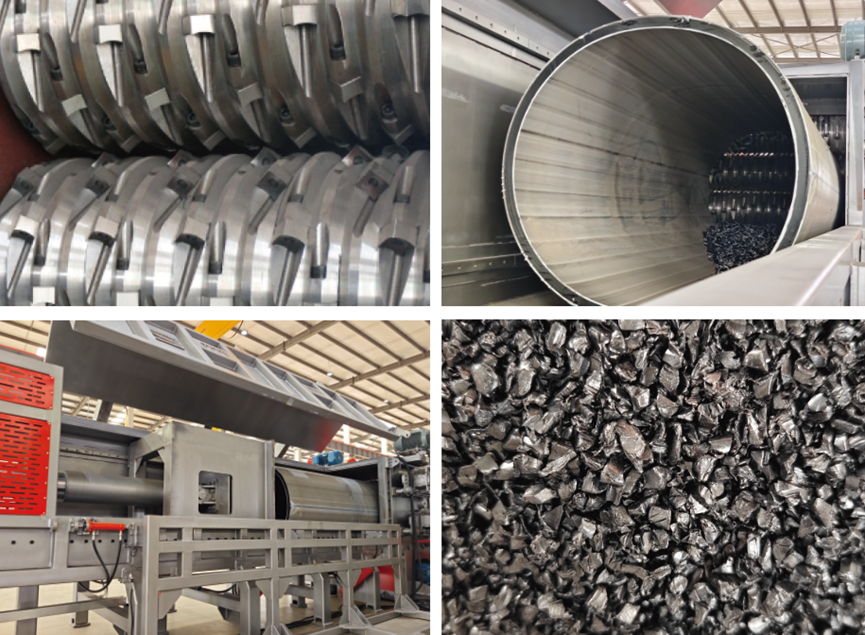

Waste Battery Shell Cleaning and Recycling Production Line

Used for crushing, cleaning, recycling, and regenerating battery cases, batteries are widely used in automobiles, electric vehicles, household lighting, and various other industries. Due to their service life, a large number of batteries are scrapped every year and need to be processed.

The Bell Machinery waste battery case recycling and cleaning line was developed for this purpose, crushing, separating, recycling, and granulating battery cases for regeneration and reuse.

— 6 —

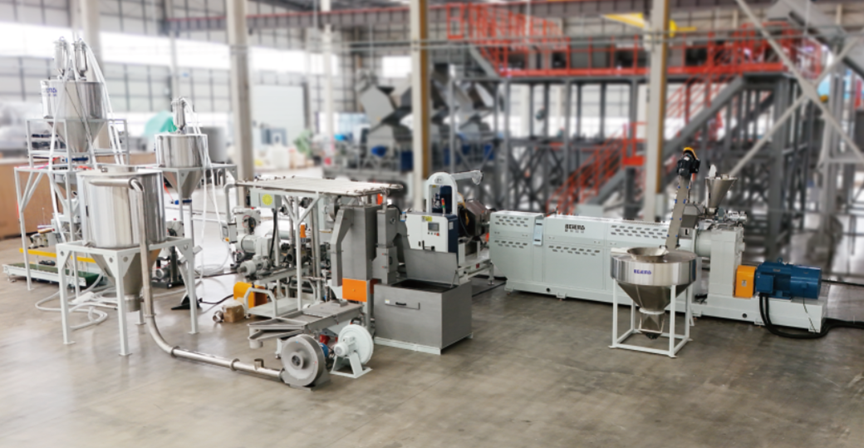

Pelletizing unit for crushed materials

The application of plastics is becoming increasingly widespread. Due to differing cost and performance requirements across various fields, the recycling and reuse of waste plastics has emerged accordingly. The single-screw extrusion pelletizing system integrates quantitative feeding, high-efficiency extruders, various types of filters, and modular pelletizing units to...PE, PP, PS, ABS, PET, PA and other types of rigid plastics, providing tailor-made optimal recycling solutions.

— 7 —

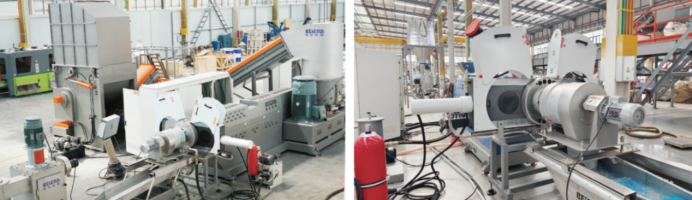

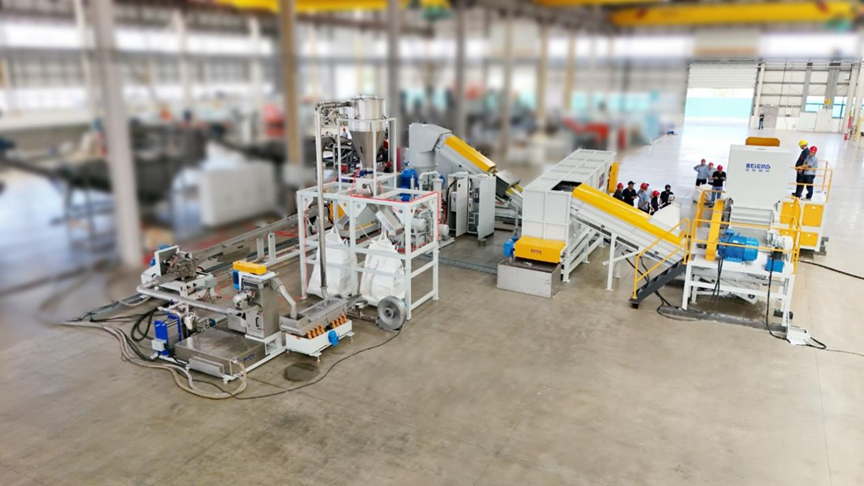

Automatic Granule Compaction Granulating Unit

The system applies toRecycling and pelletizing of various films such as PE, PP, woven bags, and non-woven fabrics. The conveyor feeding and agglomerator are controlled by PLC, which can automatically adjust the feeding speed in sections according to the current of the agglomerator. The agglomerator is equipped with a separate temperature control device and is force-cooled by a fan. The entire production line has a compact structure, featuring easy operation and stable performance.

— 8 —

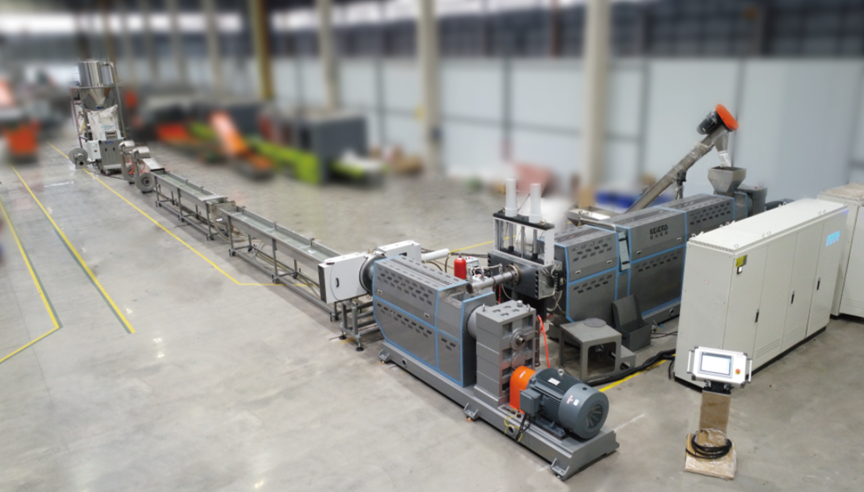

Drawing cold cutting machine unit

The device can be widely used in various operational scenarios, including enhancement and modification (such asPP, PA with added glass fiber or carbon fiber), alloy blends (such as PC+ABS, PA+ABS, etc.), filled modification (such as PE, PP with added calcium carbonate, talcum powder, etc.); also suitable for cable material production (covering LDPE, HDPE sheath materials, insulation materials, and radiation cross-linked materials, etc.), as well as masterbatches (such as PE, ABS with added pigments, additives), flame retardant masterbatches (such as PP, PA with added flame retardants, additives), and functional masterbatches (such as anti-drip masterbatches, antistatic masterbatches, and other types of functional masterbatches).

— 9 —

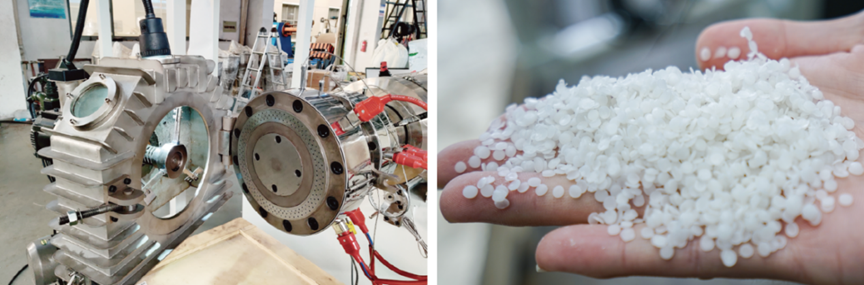

Underwater pelletizing unit

The underwater pelletizing system, with its advanced principles and technology, can handle pelletizing operations for almost all materials. It is particularly adept at processing materials that are difficult for traditional equipment to handle, such as those with low molten strength, high viscosity, and high thermal sensitivity. It can easily manage these challenges. The range of particle sizes it can process includes micro-particles (Fine particles (0.2mm-1.0mm), regular particles (1.0mm-5mm), and large particles (above 5mm).

— 10 —

Water ring heat cutting unit

This equipment is suitable for various operations, capable of performing filling modifications with PE, EVA, and calcium carbonate, talcum powder, etc. It can handle PPR pipe materials, PE cross-linked pipe materials; it can also process thermoplastic elastomers such as TPR, TPU, as well as EVA and hot melt adhesives. Additionally, it is suitable for the production of color masterbatches of PE, ABS, etc., and the production of functional masterbatches of ABS, PE, etc.

— 11 —

Mold surface hot cutting unit

The underwater pelletizing system is applicable to a wide range of materials across multiple fields, including reinforced and modified types such as PVC, PE, EVA combined with calcium carbonate, talc, titanium dioxide, and carbon black; biodegradable masterbatches such as PE, PS along with starch, additives, etc.; and flame retardant masterbatches such as PE, EVA mixed with flame retardants and others.

— 12 —

Twin-screw granulation unit

Modular Co-rotating Parallel Twin Screw Granulator ExtruderIt is used for granulation of various plastics, with good dispersibility, high output, good plasticization, and low energy consumption. It adopts involute gear transmission, characterized by low noise, stable operation, high load capacity, and long service life.

— 13 —

Pipe shredder

The single-shaft shredder is widely used and can handle large-diameter PE/PVC pipes and sheets, PP, PC, ABS block gold bars, pallets, waste wires and cables, as well as waste metals, fiberglass, carbon fiber, and other materials.

The horizontal shredder is suitable for shredding large-diameter PE and PVC pipes, as well as large-sized PP and PC sheets.
