Sewage Pump, Sewage Pump with Cutting Device, Submersible Sewage Pump
1. Overview

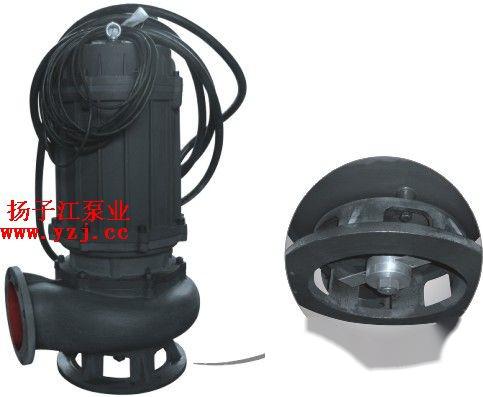

WQK/Sewage Pump with Cutting Device has a particularly strong sewage discharge capability and good cutting performance, capable of crushing and discharging impurities such as long fibers, plastics, paper, strips, cloth, straw, ropes, etc., from sewage. It adopts advanced methods and is designed with reasonable hydraulic characteristics, allowing the electric pump to operate at the full lift. The excellent combination of dry motor and pump achieves overall efficiency equivalent to the cutting device series products of ABS Company from Germany. The electric pump uses high-quality hard alloy, double-end mechanical seals, and skeleton oil seals at the assembly position, not exceeding half of the motor height, and the temperature of the pumped sewage should not exceed 40℃.
The WQX series sewage submersible pumps are mainly used for discharging domestic wastewater, sewage, human feces and urine, as well as solid suspensions and non-corrosive media containing short fiber paper scraps, wood chips, starch, sand, and ore particles. The temperature of the pumped liquid should not exceed 40℃, with a density not greater than 1200 kg/m3 and a pH value of approximately 9. This electric pump employs double-end mechanical seals and a rotating impeller, using stainless steel that is wear-resistant, non-clogging, and non-wrapping, with advantages such as compact size, convenient portability, etc.
2. Application Range
WQK/QGSewage Pump with Cutting Device is mainly used for engineering sewage and domestic sewage.
Examples include:
(1) Used in construction sites, engineering foundation construction, municipal facilities, and water treatment plants.
(2) Sewage discharge from basements of various high-rise buildings, civil defense pits, subways, and other underground levels.
(3) Sewage treatment and circulating water transportation for small and medium-sized enterprises.
(4) Discharge of slurry from factories and mines in the food, paper, brewing, steel and non-ferrous metal, leather, textile, pharmaceutical, and cement industries.
(5) Used in poultry farms, pig farms, various aquaculture industries, fish ponds for water pumping, oxygen enhancement, and for the discharge of human and animal feces in septic tanks, etc.
Note: The main performance and data of WQKSewage Pump with Cutting Device are identical to WQK/QG models except for the absence of the cutting device; their internal structure is the same.
3. Sewage Pump with Cutting Device Model Significance and Performance Parameters
|
Model
|
Flow Rate
m3/h |
Head
(m) |
Outlet Pipe Diameter
