Vortex Pump: W-type Vortex Pump|Stainless Steel Vortex Pump|Horizontal Vortex Pump

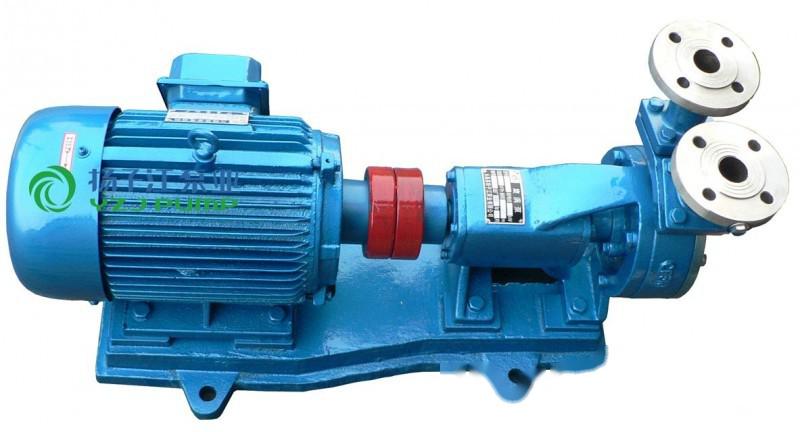

The **W-Type** vortex pump is a single-stage cantilever vortex pump with a vertical inlet and outlet direction. The vortex impeller can move freely along the axial direction on the shaft to ensure that the axial gaps between the impeller and the pump body, as well as the pump cover, are equal on both sides, allowing for the adjustment of the gap using paper gaskets. The pump has two types of shaft seals: packing and single-end mechanical seals, and the pump and motor are mounted on a common base. The **W-Type** vortex pump is used to transport liquids with a temperature range of -20℃ to +80℃, a viscosity not exceeding 5E, which are non-corrosive and contain no solid particles. This pump features a compact size, light weight, elegant appearance, and ease of maintenance, making it suitable for industrial production water in chemical, petroleum, light textile, electric power, and other factories, as well as for boiler feed water, heating water supply, high-rise building water supply, firefighting, heat removal circulation water supply, high-pressure water supply for manufacturing frozen drinks and cooling beverages, and disinfection of dining utensils in canteens and the catering industry. The pump has a maximum flow rate of 14.4 m³/h, a minimum flow rate of 0.7 m³/h; a maximum lift of 105 m, a minimum lift of 20 m; a matching power: maximum 11 kW, minimum 0.75 kW; with a rotational speed of 2900 r/min. | Model | Flow Rate (m³/h) | Lift (m) | Speed (r/min) | Power (kW) | |-------------------|-------------------|----------|----------------|------------| | 1W2.4-10.5 (Single-stage) | 2.4 | 105 | 2900 | 3 | | 1W2.5-12 (Single-stage) | 2.5 | 120 | 2900 | 3 | | 25W-25 (Single-stage) | 1.44 | 25 | 2900 | 0.75 | | 32W-30 (Single-stage) | 2.88 | 30 | 2900 | 1.5 | | 32W-75 (Single-stage) | 2.88 | 75 | 2900 | 4 | | 40W-40 (Single-stage) | 5.4 | 40 | 2900 | 4 | | 40W-90 (Single-stage) | 5.4 | 90 | 2900 | 7.5 | | 50W-45 (Single-stage) | 9 | 45 | 2900 | 5.5 | | 65W-50 (Single-stage) | 14.4 | 50 | 2900 | 11 | | 1.58D-0.7 (Single-stage) | 2.4 | 105 | 1450 | 3 |
