Variable Frequency Centrifugal Pump: IHW Type Stainless Steel Horizontal Pipeline Centrifugal Pump

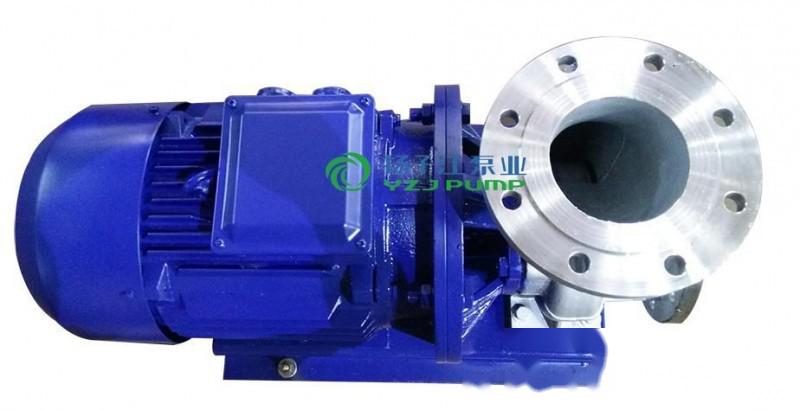

1. **IHW Type Horizontal Stainless Steel Pipeline Centrifugal Pump**, suitable for transporting clean water and other liquids with similar physical and chemical properties to clean water. It is applicable for industrial and urban water supply and drainage, high-rise building water supply and boosting, garden irrigation, fire-fighting pressure boosting, and equipment matching. Operating temperature T: ≤80℃.
2. **ISWR (WRG) Type Hot Water (High Temperature) Circulating Pump** is widely used in energy, metallurgy, chemical industry, textile, papermaking, and hotel boiler high-temperature hot water boosting and circulating delivery, as well as in urban heating system circulating pumps. ISWR operating temperature T: ≤120℃, WRG operating temperature T: ≤240℃.
3. **ISWH Type Horizontal Chemical Pump**, suitable for transporting liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. It is applicable in petroleum, chemical, metallurgy, electric power, papermaking, food, pharmaceutical, and synthetic fiber industries. Operating temperature T: -20℃ to 120℃.
4. **ISWB Type Horizontal Oil Pump**, suitable for transporting petroleum products such as gasoline, diesel, and kerosene. Operating temperature T: -20℃ to 120℃. **Working Conditions** 1. Suction pressure ≤1.0Mpa, or pump system maximum working pressure ≤1.6Mpa, which means pump suction inlet pressure + pump head ≤ 1.6Mpa. The static pressure test pressure of the pump is 2.5Mpa. Please specify the system working pressure when ordering. If the working pressure of the pump system exceeds 1.6Mpa, it should be specified separately at the time of ordering, so that cast steel materials can be used for the pump’s flow components and connections during manufacturing.
2. Ambient temperature <40℃, relative humidity <95%.
3. The volume content of solid particles in the conveyed medium does not exceed 0.1% per unit volume, with a particle size <0.2mm.
Note: If the conveying medium contains fine particles, please specify at the time of ordering for the use of wear-resistant mechanical seals.
