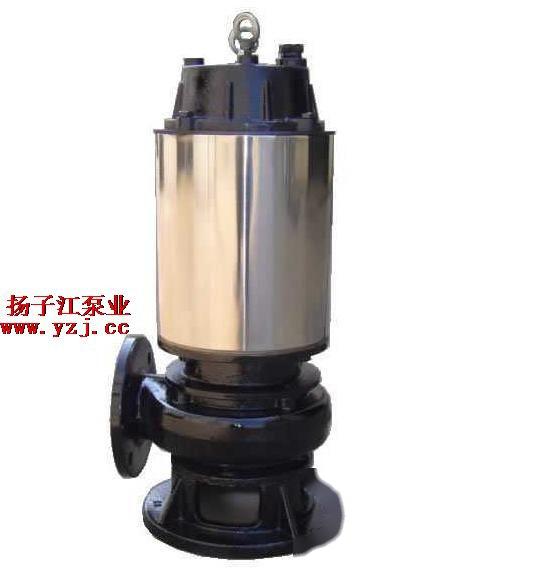

JYWQAutomatic Stirring Submersible Sewage Pump; stainless steel jacket stirring pump; automatic stirring pump; self-stirring sewage pump;Automatic Stirring Submersible Sewage Pump
1、Overview
JYWQ、JPWQ stainless steel jacket automatic stirring sewage pumpis based on a regular sewage pump, utilizing an automatic stirring device that rotates with the motor shaft, generating a strong stirring force to suspend the sediments in the sewage pit, drawing them into the pump for discharge, enhancing the pump's clog prevention and sewage discharge capabilities. It accomplishes drainage, cleaning, and silt removal in one go, saving operational costs, and is an environmentally friendly product with clear advancements and usability.
2、Main Features
1．During operation, it automatically stirs the sediment at the bottom of the pit, completely preventing the accumulation of waste, eliminating the need for manual cleaning;
2．Unique impeller design, capable of shredding and tearing fibrous materials and debris;
3．Utilizes an external circulation cooling system, allowing the sewage pump to operate at low water levels, reducing motor start-up frequency, and extending motor life;
4．Recommended product in the national standard atlas;
5．It is a product resulting from the transformation of high-tech achievements in Shanghai.
3、Main Applications
1．Used for the discharge of heavily polluted wastewater from factories and commercial establishments.
2．Used in the drainage systems of urban sewage treatment plants, hospitals, and hotels.
3．Used in sewage pumping stations in residential areas.
4．Used in drainage stations for civil defense systems and water supply facilities for water treatment plants.
5．Used in municipal engineering and construction sites.
6．Used in exploration, mining, and auxiliary machinery for power plants.
7．Used in rural biogas pools, agricultural irrigation, and river dredging.
JYWQAutomatic Stirring Submersible Sewage PumpTechnical Parameters
Flow Range: 7-900m3/h
Lift Range: 6-40M
Matching Power Range: 1.1-90KW
Discharge Diameter Range: 40-300MM
Stirring Range: 1200-3000MM
Medium Temperature: <60℃
Medium Density: 1-1.3KG/DM3
pH Range: 4-9
JYWQAutomatic Stirring Submersible Sewage PumpStructural Features
