1. Product Features
Simple structure, easy maintenance, small footprint, material-saving, safe and reliable, easy installation, simple to use, international standards,
2. Product Introduction

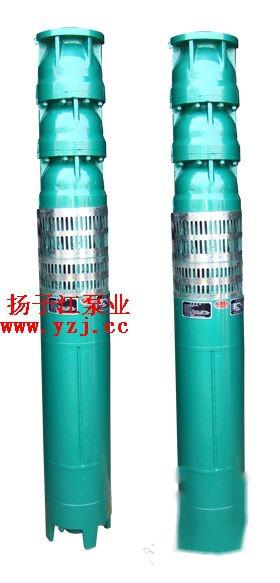

Stainless Steel Deep Well Pump is a high-performance wear-resistant electric pump produced by introducing pump manufacturing technology from foreign pump companies. The power part is equipped with a water-immersed stainless steel submersible motor produced with currently advanced international technology, ensuring no pollution to the water quality, making it a premium choice among deep well pumps both domestically and internationally. It uses stainless steel for the outer casing, shaft core, coupling, water inlet seat, and pump head (or copper alloy water inlet seat and pump head), high-strength and wear-resistant new composite polymer material for the impeller and stainless steel guide shell, with a brand new “floating” structure impeller that exerts no axial pressure on the motor during operation. It is particularly suitable for industrial and mining, agriculture, construction, aquaculture, food and beverage industries, and household (or high-rise water supply) use.
QJDeep Well Submersible Pump product features:
1. Deep Well Submersible Pump integrates the motor and water pump, operating submerged in water, ensuring safety and reliability.
2. Deep Well Pump does not have special requirements for well casing and discharge pipe (i.e., can be used with steel pipe wells, gray pipe wells, soil wells, etc.; under permissible pressure, steel pipes, rubber hoses, plastic pipes, etc. can be used as discharge pipes).
3. Deep Well Pump is easy to install, use, and maintain, occupies a small area, and does not require the construction of a pump house.
4. Deep Well Pump has a simple structure and saves raw materials.
The suitability of the conditions for using Deep Well Pump is directly related to proper management and service life.
QJ SeriesStainless Steel Deep Well Pump Submersible Pump Performance Parameters
|
Model |
Motor Power |
Flow Lift (m3/h) |
Discharge Pipe Diameter |
Applicable Well Diameter |
|||
|
HP |
KW |
||||||
|
100QJ1.5-40/7 |
0.5 |
0.37 |
1.5/40 |
2/35 |
3/25 |
40(1.5') |
100 |
|
100QJ1.5-50/9 |
0.75 |
0.55 |
1.5/50 |
2/43 |
3/35 |
40(1.5') |
100 |
|
100QJ1.5-70/12 |
1 |
0.75 |
1.5/70 |
2/63 |
3/50 |
40(1.5') |
100 |
|
100QJ1.5-98/17 |
1.5 |
1.1 |
1.5/98 |
2/87 |
3/70 |
40(1.5') |
100 |
|
100QJ1.5-127/23 |
2 |
1.5 |
1.5/127 |
2/115 |
3/92 |
40(1.5') |
100 |
|
100QJ1.5-168/30 |
3 |
2.2 |
1.5/168 |
2/145 |
3/115 |
40(1.5') |
100 |
|
100QJ1.5-260/45 |
5 |
3.7 |
1.5/260 |
2/245 |
3/200 |
40(1.5') |
100 |
|
100QJ2-45/8 |
0.75 |
0.55 |
2/45 |
3/40 |
4/33 |
40(1.5') |
100 |
|
100QJ2-63/11 |
1 |
0.75 |
2/63 |
3/57 |
4/48 |
40(1.5') |
100 |
|
100QJ2-85/15 |
1.5 |
1.1 |
2/85 |
3/73 |
4/60 |
40(1.5') |
100 |
|
100QJ2-115/21 |
2 |
1.5 |
2/115 |
3/100 |
4/85 |
40(1.5') |
100 |
|
100QJ2-155/28 |
3 |
2.2 |
2/155 |
3/138 |
4/112 |
40(1.5') |
100 |
|
100QJ2-235/42 |
5 |
3.7 |
2/235 |
3/205 |
4/170 |
40(1.5') |
100 |
|
100QJ3-40/7 |
0.75 |
0.55 |
3/40 |
4/33 |
5/25 |
40(1.5') |
100 |
|
100QJ3-55/10 |
1 |
0.75 |
3/55 |
4/43 |
5/35 |
40(1.5') |
100 |
|
100QJ3-70/13 |
1.5 |
1.1 |
3/70 |
4/59 |
5/48 |
40(1.5') |
100 |
|
100QJ3-100/18 |
2 |
1.5 |
3/100 |
4/87 |
5/65 |
40(1.5') |
100 |
