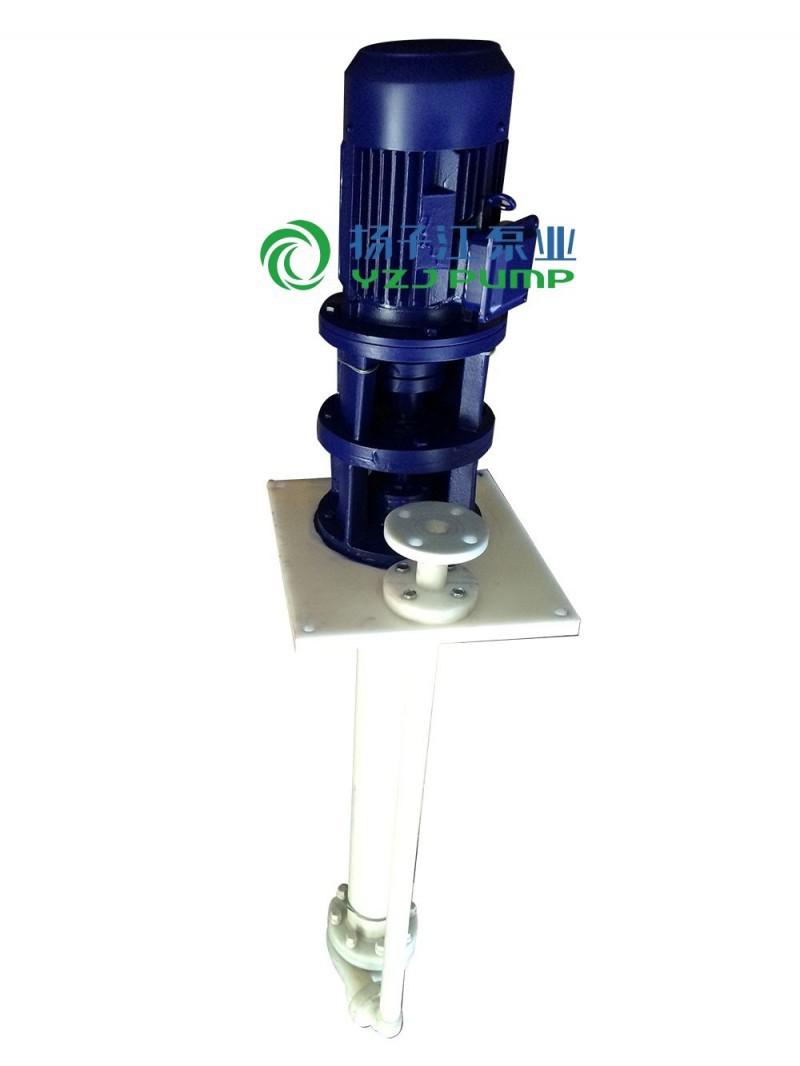

FYS Type Corrosion-ResistantSubmersible Pump Series Fluorine AlloyChemical Pump, designed for transporting corrosive liquids without solid particles and that do not easily crystallize. It mainly addresses the transportation of highly corrosive media.
ThisFluorine Alloy Chemical Pump features a vertical structure, with the pump body and impeller submerged in the liquid, thus occupying a smaller footprint. The shaft seal has no leakage, making it suitable for transporting corrosive liquids at temperatures ranging from -5℃ to 105℃. The pump's direction of rotation should follow the indicated direction; reversing the direction is not permitted, and the pump body must be submerged in the liquid during startup.
Corrosion-ResistantSubmersible Pump Structural Diagram:
FYSFluoroplastic Submersible PumpOperating Conditions:
1. Medium temperature -5℃ to 105℃
2. This pump can transport strongly corrosive chemical media, such as hydrofluoric acid, boric acid, butyric acid, caustic soda, soda ash... for specifics, please refer to the "Enhanced Polypropylene Coated
Submersible Pump Corrosion Resistance Performance Table"
3. If special media need to be transported, our factory can manufacture submersible pumps made of polyvinylidene fluoride (PVDF) or F-46 materials.
A: Enhanced Polypropylene. C: Polyvinylidene Fluoride. D: Fluoroplastic Alloy
Corrosion-Resistant Submersible Pump Selection Range:
Submersible Depth: Ｌ＝250－－-2500mm
Flow Rate: Ｑ＝1.5M3/H－－-400M3/H
Lift: Ｈ＝6m－－-50m
Speed: n ＝1450r/min－－-2900r/min
Operating Temperature: -5℃－－-105℃
A: Enhanced Polypropylene－－Corrosion-Resistant Stainless SteelFRPP-ICr18Ni9Ti
B: Enhanced Polypropylene－－TitaniumFRPP-Ti
C: Enhanced Polypropylene－－Zeolite Metal
D: Enhanced Polypropylene－－Fluoroplastic Box
E: Enhanced Polypropylene－－Polypropylene Coated
② Except for the shaft, the materials for parts in contact with the medium include the following: F-4, hydrogenated silicon, silicon carbide, drinking alloys, enhanced polypropylene.
③ To prevent problems caused by thermal expansion and contraction, the pump's connecting pipe is made of composite material steel pipe with internal and external coating.
④ The axial and radial forces generated during the operation of the FYS Type Corrosion-Resistant Submersible Pump are supported by adjustable central bearings to ensure stable operation and low noise.
⑤ The lower part of the pump is equipped with a water bearing, and for pumps with a submersible depth exceeding 1 meter, an intermediate water bearing is installed to ensure stable and reliable pump operation.
