PW TypeHorizontal Sewage Pump|Corrosion-Resistant Sewage Pump|Stainless Steel Sewage Pump|Stainless Steel Wastewater Pump
1. Stainless Steel Sewage Pump Product Overview:

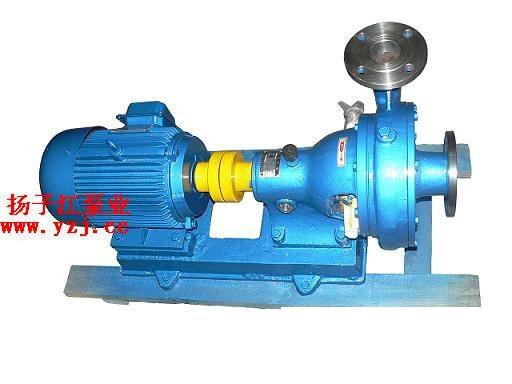

PW、PWF TypeSewage Pump is a single-stage, single-suction, cantilever centrifugalSewage Pump. The pump suction inlet is in the axial horizontal direction, and the pump discharge outlet can be installed horizontally or vertically as needed. It mainly consists of components such as pump cover, pump casing, impeller, shaft seal, shaft, and bracket. The shaft seal adopts a novel double-end mechanical seal structure, and the pump and motor are mounted on a common base, driven directly by the motor through an elastic coupling. This pump features high efficiency, significant energy savings, smooth operation, reliable performance, and convenient maintenance.
All of our products are designed and optimized using computer technology. The company has strong technical expertise, rich production experience, and complete testing methods to ensure the stability and reliability of product quality.(Material: Cast Iron, Stainless Steel)
2. Scope of Application:
1、PW OrdinarySewage Pump can transport sewage containing suspended solid particles, long fiber materials, and domestic wastewater. The pump body is made of cast iron, and the medium temperature should not exceed100℃.
2、PWF TypeCorrosion-Resistant Sewage Pump can transport sewage with acidic, alkaline, or other corrosive characteristics. It is widely used in the chemical, petroleum, light industry, food, pharmaceutical, brewing, environmental protection, and sewage treatment industries. The pump body and flow parts are made of304 stainless steel, and the medium temperature should not exceed100℃.
3. Technical Parameters:
Flow Rate:36-180m3/h；
Head:8.5-48.5m；
Motor Power:4-30KW；
Speed:960-2950r/min；
Caliber: φ65-φ100；
Medium Temperature: ≤100℃.
Sewage Pump Model Significance:
PW TypeHorizontal Sewage Pumpcan transport sewage with a temperature lower than80℃ that is acidic, alkaline, or other corrosive, and PW TypeHorizontal Sewage Pump is widely applicable in the chemical, petroleum, light industry, food, pharmaceutical, and environmental protection industries. PW TypeHorizontal Sewage Pump has a performance range: flow rateQ is10～125m3/h; headH is10～18m, and the materials for flow parts are made ofZG1Cr18Ni9 andHT200.
PW TypeHorizontal Sewage Pump is a single-stage, single-suction, cantilever corrosion-resistant centrifugal sewage pump. The pump suction inlet is in the axial horizontal direction, and the pump discharge outlet can be installed horizontally or vertically as needed.
