Performance Features: ◆ JG-MSC series wood-plastic board dedicated extrusion equipment, with stable performance, energy-saving, and high efficiency. ◆ Made of 38CrMoALA high-quality alloy steel, with a bimetallic coating on the surface. The screw barrel is designed with special mixing functions and high plasticizing capacity. ◆ The screw core cooling uses an automatic temperature-controlled oil constant temperature system to achieve good plasticization of the material. A vacuum exhaust screw barrel is used to fully evaporate the moisture in the material, ensuring product quality. ◆ Equipped with a DC motor that provides stable output and high torque, along with ABB or Eurotherm speed controllers from the UK, resulting in high extrusion output and efficiency.
Performance Characteristics:

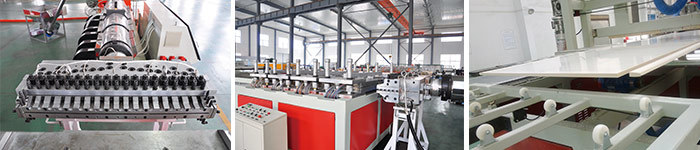

◆ TJ-MSC series wood-plastic board dedicated extrusion equipment, with stable performance and high energy efficiency.
◆ 38CrMoALA high-quality alloy steel material, with a bimetallic coating on the surface. Screw and barrel designed with special mixing functions and high plasticizing capacity.
The core of the screw adopts an automatic temperature-controlled oil constant temperature system, which brings the material to a good plasticization state. A vacuum exhaust barrel is used to ensure that the moisture in the material fully evaporates, guaranteeing product quality.
◆ Equipped with a DC motor that offers stable output and high torque, along with an ABB or Eurotherm speed controller from the UK, ensuring high extrusion output and efficiency.
Main Technical Parameters
Model | TJ-MSC80/156 | |
Screw diameter | mm | Φ80/156 |
Number of screws | 2 | |
rotational speed | r/min | 1-38 |
Main motor power | KW | 75 |
Heating power (approx.) | KW | 36 |
Extrusion output | kg/h | 150-350 |
Model | BF600 | BF1220 | |
Product dimensions | mm | 600 | 1220 |
Haul-off height | mm | 150 | 150 |
Traction | kn | 50 | 50 |
牵引速度 Haul-off speed | m/s | 0-3 | 0-2.5 |
Total Power of Auxiliary Machines | kw | 35 | 40 |
Cooling water capacity | m3/h | 9 | 12 |
