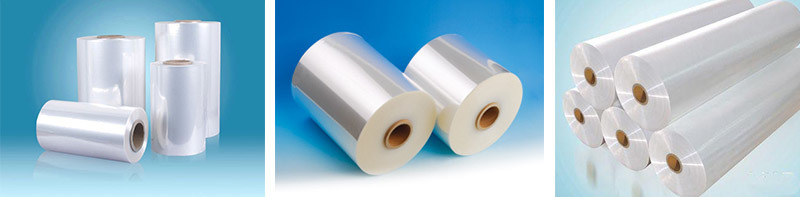

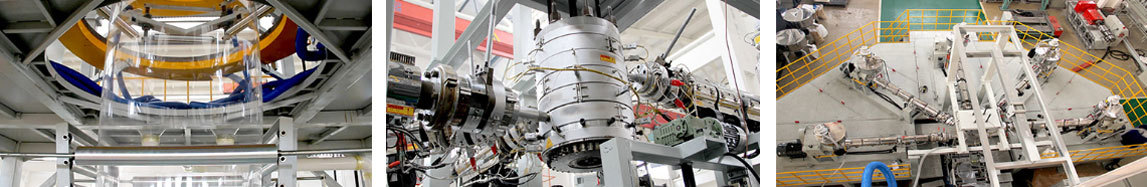

This equipment is developed by our company through the absorption and digestion of advanced technology, and it is an improved POF (polyolefin) heat shrink film blowing machine using the double-bubble forming method. The equipment adopts a uniquely designed three-layer co-extrusion die head for PP/PE/PP, an internal and external cooling system for the tube billet, a dual-station central rotating winder, automatic tension control, and linear pressure module temperature control. The unit can be optionally equipped with an online automatic thickness gauge from NDC, USA, and a centralized computer control system. This unit has the advantages of low power consumption, high output, easy operation, and convenient control. The produced POF shrink film features high transparency, softness, low-temperature resistance, high shrinkage rate, and uniform thickness.
| Machine model | unit | TJ-RSM5B1300 | TJ-RSM5B1800 | TJ-RSM5B2200 |
| Suitable Materials | PP/PE and additives | PP/PE and additives | PP/PE and additives | |
| Film layflat width | mm | 1200 | 1600 | 2000 |
| Film thickness | mm | 0.015-0.025 | 0.015-0.025 | 0.015-0.025 |
| Output Production | kg/h | 80-120 | 100-120 | 120-200 |
| Inner and outer screw diameters | mm | Ø45×2 | Ø55×2 | Ø65×2 |
| Screw length-to-diameter ratio | L/D | 30:01:00 | 30:01:00 | 30:01:00 |
| Inner and outer layer motor power | KW | 11×2 | 15×2 | 37×2 |
| Inner and Outer Layer Heating Power | KW | 10×2 | 12×2 | 17.5×2 |
| intermediate layer screw diameter | mm | Ø65 | Ø80 | Ø90 |
| Screw length-to-diameter ratio | L/D | 30:01:00 | 30:01:00 | 30:01:00 |
| Intermediate layer motor power | KW | 37 | 45 | 55 |
| Intermediate layer heating power | KW | 16 | 25 | 32 |
| Die head heating power | KW | 30 | 35 | 38 |
| Total installed power (approx.) | KW | 160 | 190 | 290 |
| Average energy consumption (approx.) | KW | 90 | 100 | 160 |
| Overall dimensions (approx.) | m | 16×7.5×13.5 | 18×10×15 | 20×11×16 |
| Machine weight (approx.) | T | 28 | 38 | 55 |
