Performance Features: ◆ TJ-MSC series of wood-plastic board dedicated extrusion equipment, with stable performance, energy-saving, and high efficiency. ◆ Advanced CAD design software, 38CrMoALA high-quality alloy steel material, with a bimetallic coating on the surface. The screw barrel is designed with special mixing functions and high plasticizing capacity. ◆ The core cooling of the screw adopts an automatic temperature-controlled oil constant temperature system, which allows the material to reach an optimal plasticizing state. A vacuum exhaust screw barrel is used to ensure that moisture in the material fully evaporates, guaranteeing product quality. ◆ Equipped with a DC motor drive that provides stable output and high torque, along with ABB or Eurotherm speed controllers from the UK, ensuring high extrusion output and efficiency. ...
Performance Characteristics:

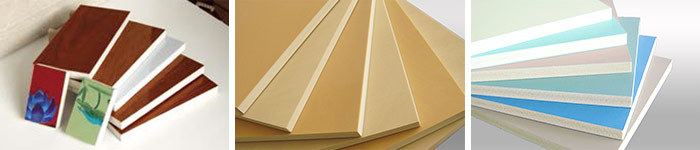

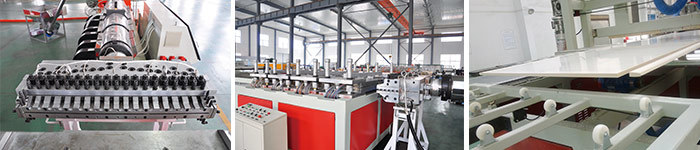

◆ TJ-MSC series wood-plastic composite board dedicated extrusion equipment, with stable performance and high energy efficiency.
Advanced CAD design software, 38CrMoALA high-quality alloy steel material, dual-metal coating on the surface. Screw and barrel designed with special mixing functions and high plasticizing capacity.
The core of the screw adopts an automatic temperature-controlled oil constant temperature system, which allows the material to reach a good plasticization state. A vacuum exhaust screw barrel is used to ensure that the moisture in the material fully evaporates, guaranteeing product quality.
◆ Equipped with a DC motor that offers stable output and high torque, along with an ABB or Eurotherm speed controller from the UK, ensuring high extrusion output and efficiency.
Main Technical Parameters
Model | TJ-MSC80/156 | TJ-MSC80/156-FH | ||
Screw diameter | mm | Φ80/156 | Φ80/156 | Φ65/132 |
Number of screws | 2 | 2 | 2 | |
Rotational speed | r/min | 1-37.7 | 1-37.7 | 1-39.1 |
Main motor power | KW | 75 | 75 | 37 |
Heating Power (approx.) | KW | 36 | 36 | 24 |
Extrusion output | kg/h | 150-350 | 250-450 | |
Auxiliary Equipment Main Technical Parameters
Model | BF915 | BF1220 | |
Product dimensions | mm | 915 | 1220 |
Haul-off height | mm | 50-20 | 150 |
Traction | kn | 50 | 50 |
haul-off speed | m/s | 0-3 | 0-2.5 |
Total Power of Auxiliary Equipment | kw | 35 | 40 |
cooling water capacity | m3/h | 9 | 12 |
