This equipment is a sheet-type plastic extrusion machine independently developed and produced by our company, integrating advanced technology, our practical experience, and market demand. According to different customer needs, it can produce extruded sheets of PVC, PP, PE, PS, ABS, etc. By replacing the main unit and related parts of the head, it can use PVC resin powder to produce PVC decorative sheets and PVC foamed boards, which are widely applied in various fields such as architectural decoration, thermoforming products, printing, furniture, interior decoration, and anti-corrosion chemical industry.
Equipment Parameters
| Model | TJ-BC1200 | TJ-BC1500 | TJ-BCF80A | TJ-BCF80B | |
| Suitable Materials | PP/PE/PS/ABS | PP/PE/PS/ABS | PVC | PVC | |
| Product width | mm | 600-2000 | 600-2000 | 1220-2050 | 1220-2050 |
| Product thickness | mm | 0.5-5 | 3-30 | 1-3 | 3-20 |
| Extrusion output | kg/h | 300-500 | 400-500 | 300-500 | 300-500 |
| Installed capacity (approx.) | KW | 350 | 400 | 450 | 480 |
| Overall dimensions (approx.) | m | 29×5×3 | 35×6×2 | 28×5×3 | 30×5×3 |
| Machine weight (approx.) | T | 30 | 35 | 29 | 30 |

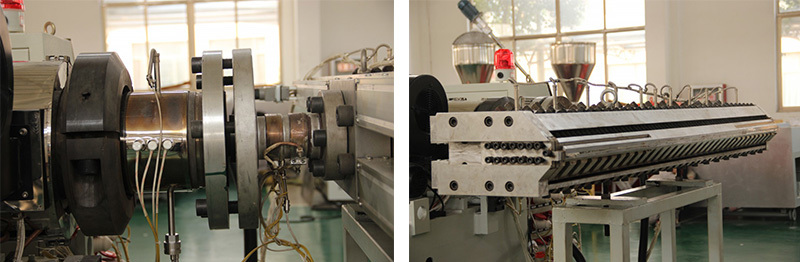

Equipment Display

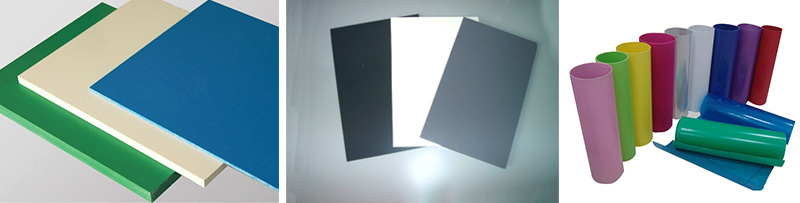

Product Applications
