A three-layer co-extrusion die is used, ensuring uniform thickness between the composite pipe layers. The produced pipes have advantages such as high pressure resistance, minimal deformation at high temperatures, and a low expansion coefficient. The production line adopts a PLC control system with a human-machine interface, making it easy to operate and featuring interlocking functions.
Equipment Parameters
| Machine model | TJ-PPR-BQ63 | TJ-PPR-BQ110 | |
| Extruder | Φ55/33×3 | Φ65/33×2,Φ55/33×1 | |
| Pipe diameter range | mm | Φ20-Φ63 | Φ75-Φ110 |
| Installed capacity (approx.) | KW | 140 | 180 |
| Overall dimensions (approx.) | m | 35×4×3 | 42×4×4 |
| Machine weight (approx.) | T | 4.5 | 5.8 |

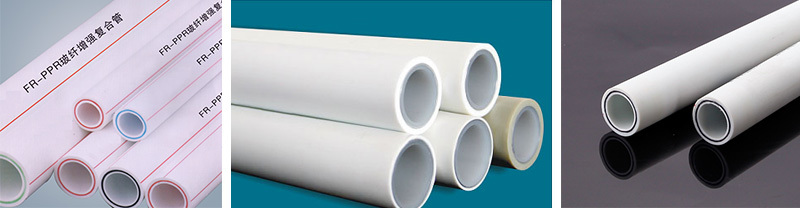

Product Applications
