PP/PE Plastic Geogrid (Dual Draw Dual Resistance Plastic Net for Mining) Production Line

Plastic Machinery-Other Plastic Machinery-Other Plastic Machinery
Expand

Product Content

Category
Plastic Machinery-Other Plastic Machinery-Other Plastic Machinery
Series
土工格栅挤出网材系列设备

New high polymer geosynthetic material – plastic geogrid, also known as mine support net equipment and double tensile and double resistance net equipment for mines, has excellent properties such as high strength, good dimensional stability, corrosion resistance, and aging resistance due to its unique physical structure. It has been widely used in engineering fields such as water conservancy, highways, railways, airports, and coal mines. During the production process, by adding plastic antistatic agents and flame retardant masterbatches, it can also produce double tensile and double resistance plastic nets for mines, which are widely used in underground workplaces such as mine roof protection and guardrails, serving as a replacement for traditional wire mesh.

Equipment Parameters



ModelTJ-TGGS4000TJ-TGGS6000
ExtruderΦ160/33Φ180/33
Screw diametermmΦ160Φ180
Die head widthmm14502000
Punching PressureKN25003150
Unidirectional product widthmm12002000
Bidirectional product widthmm40006000
Bidirectional product specificationsKN/m15-15,20-40,50-50
Overall dimensions()m98×12×4.8110×15×5.2

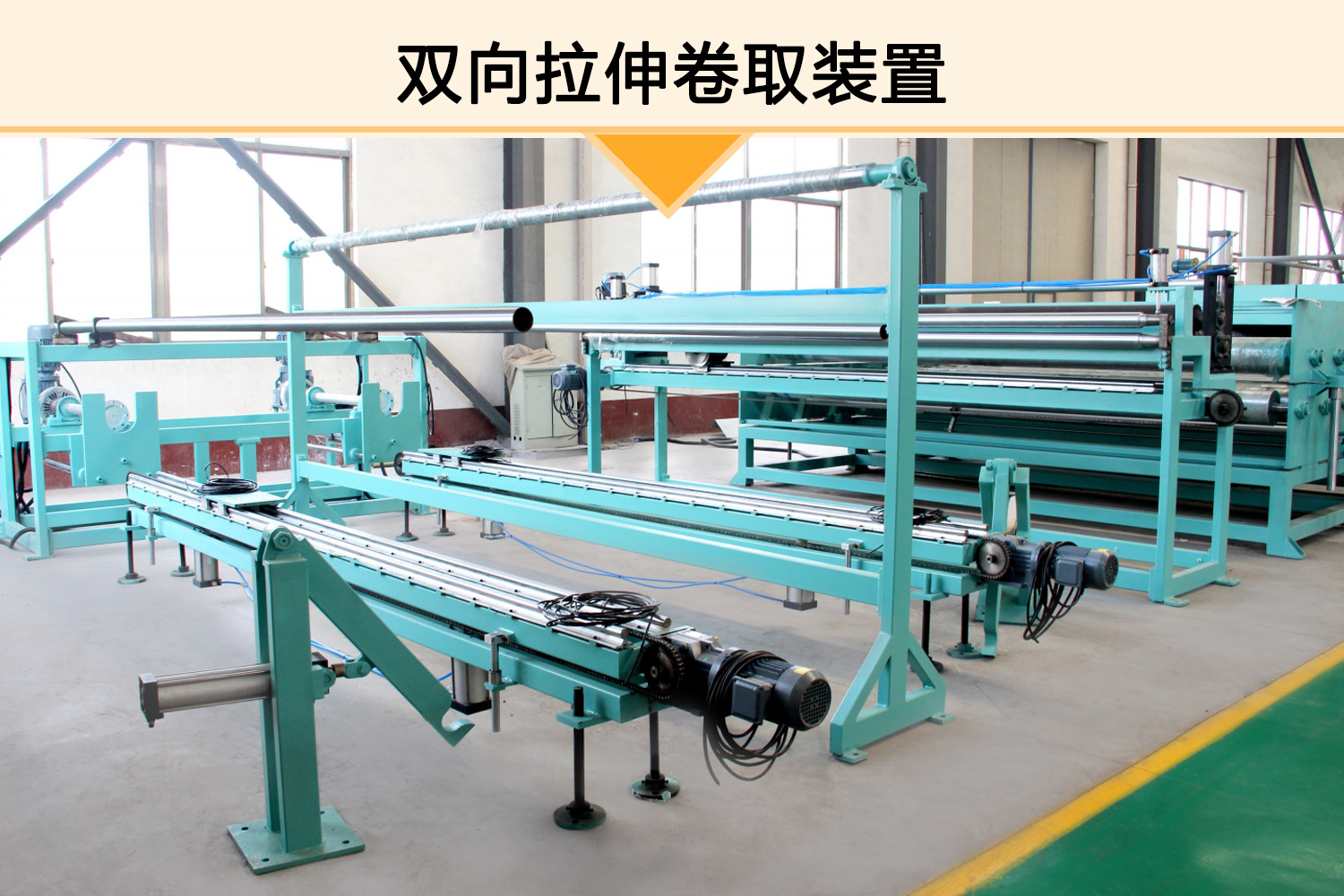

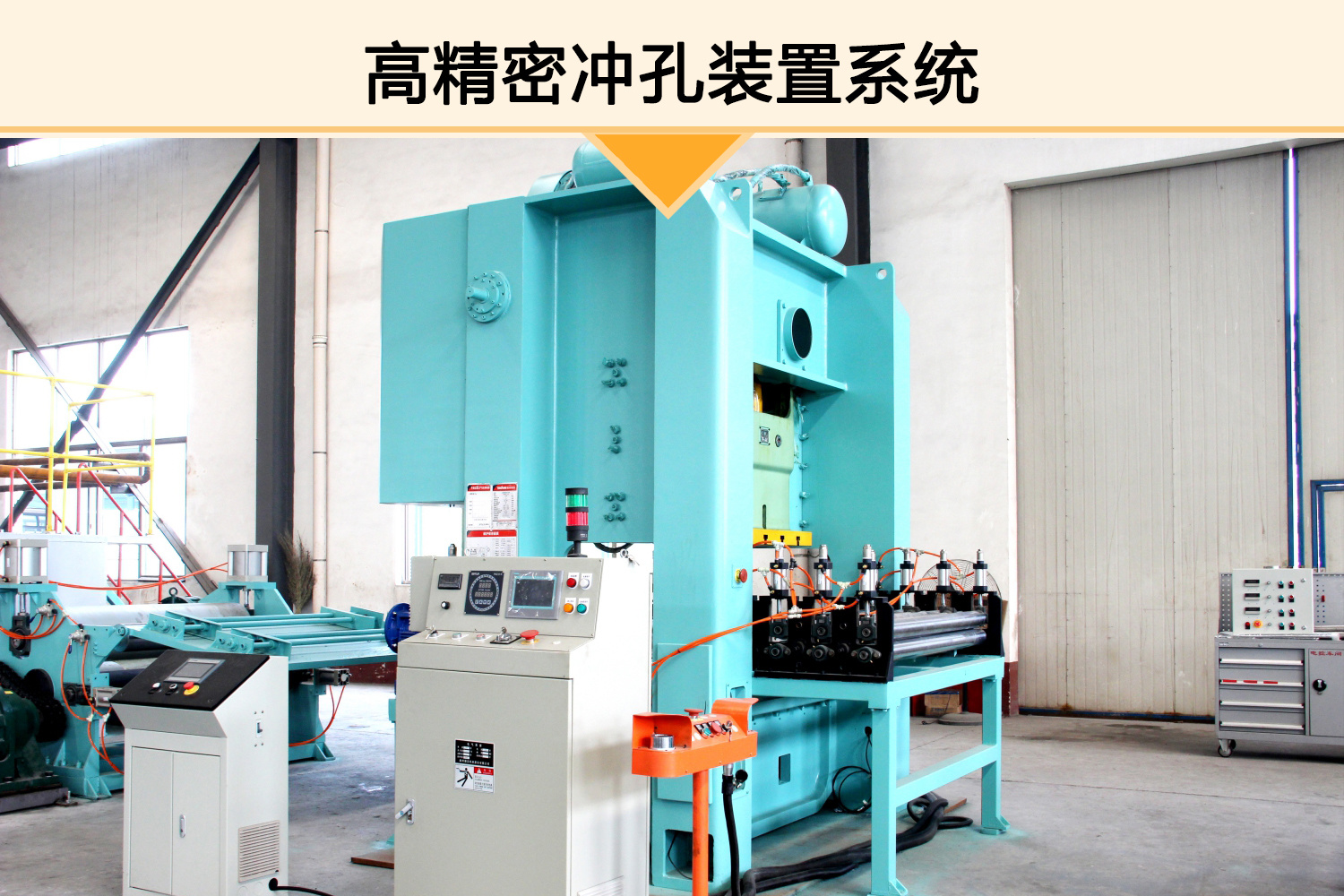

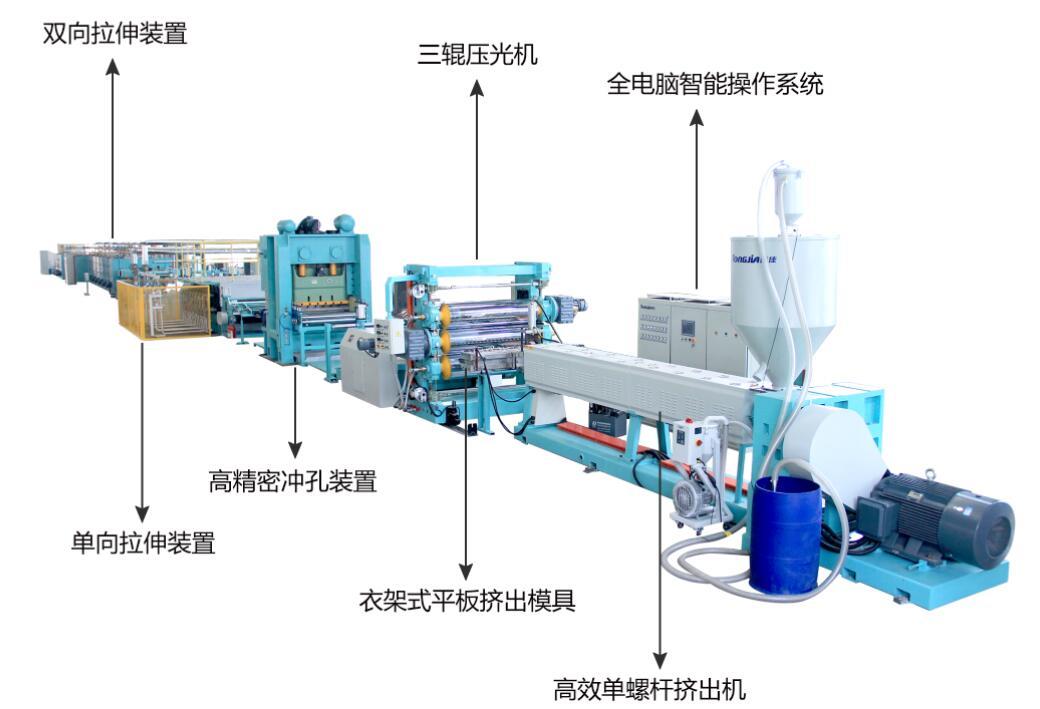

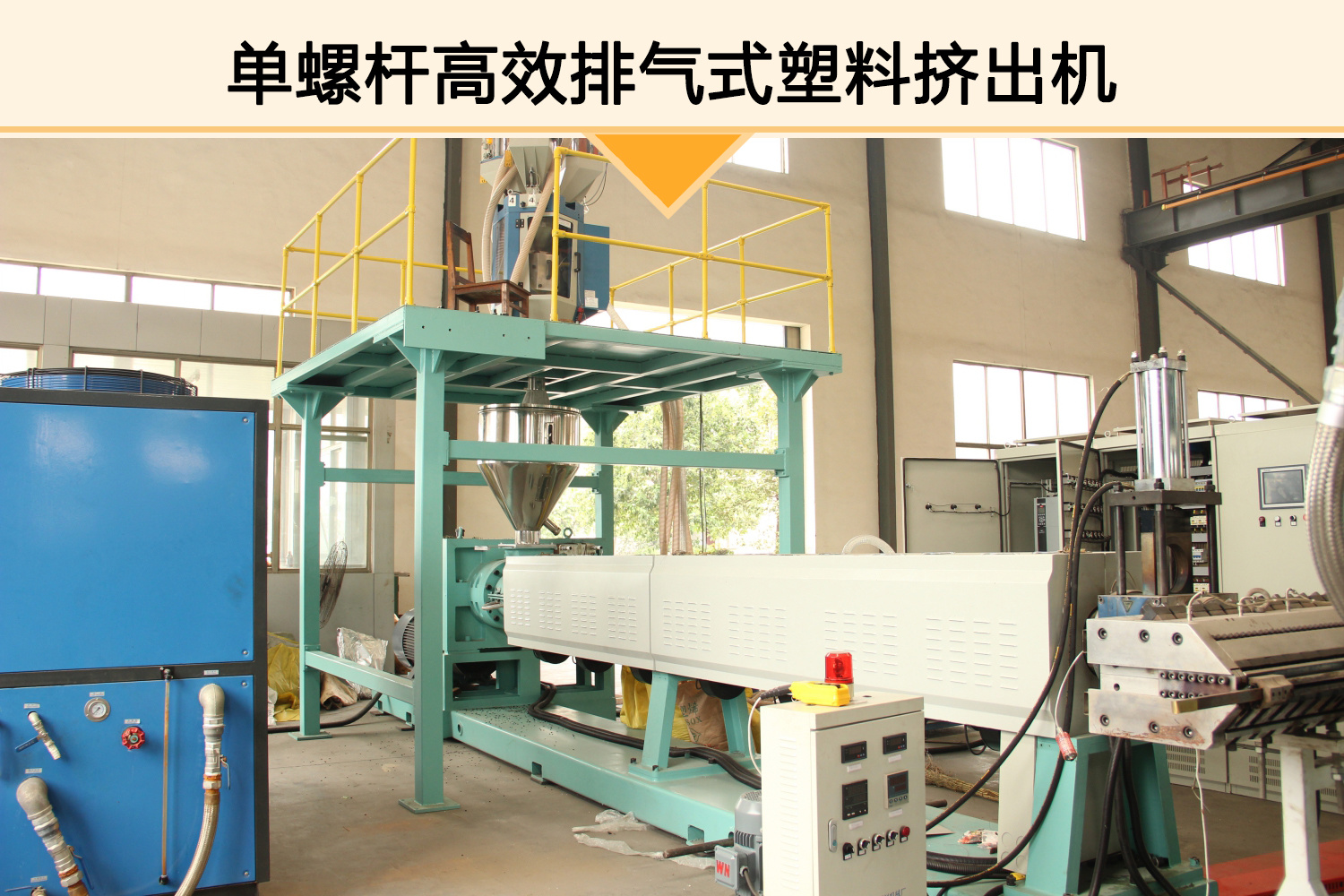

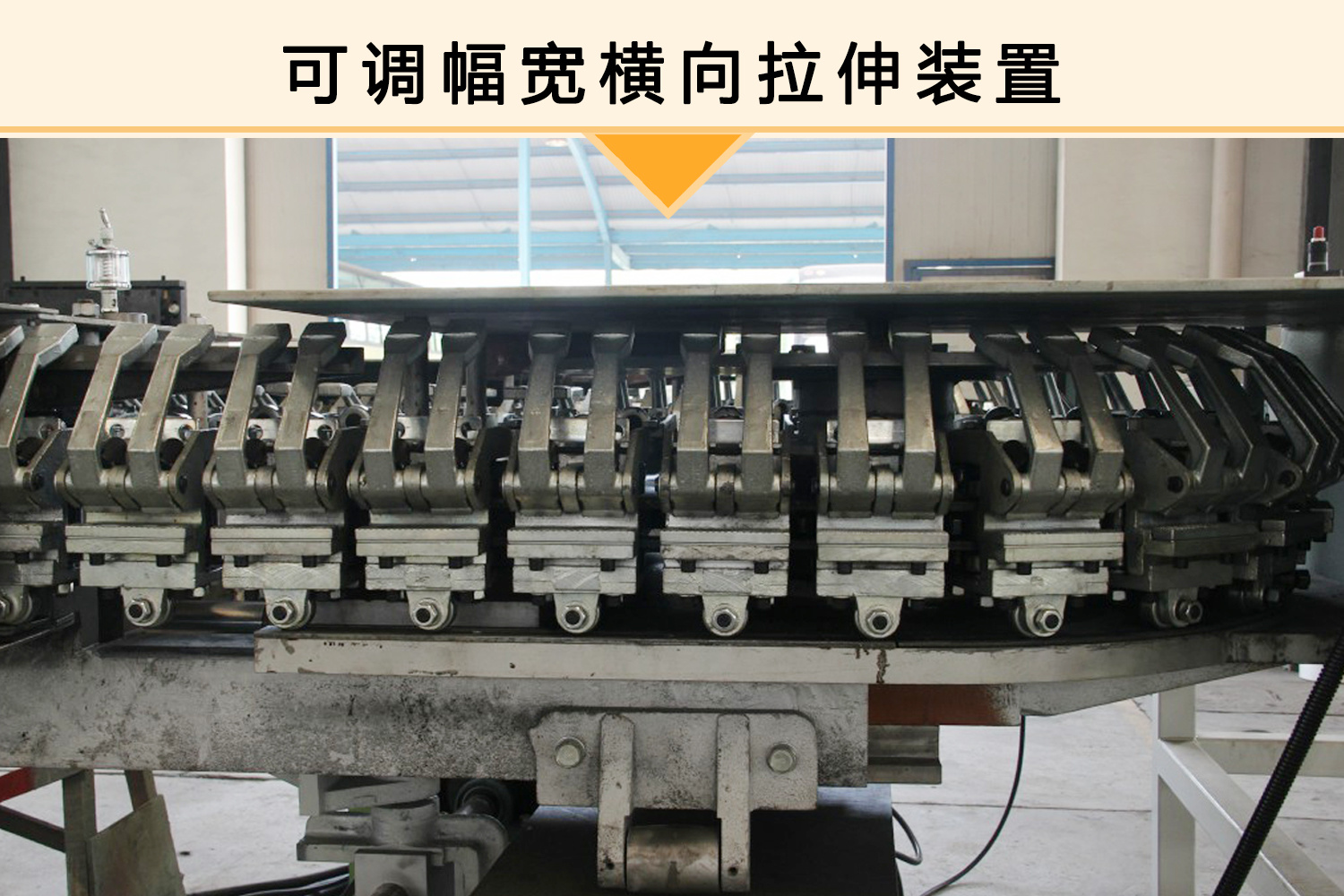

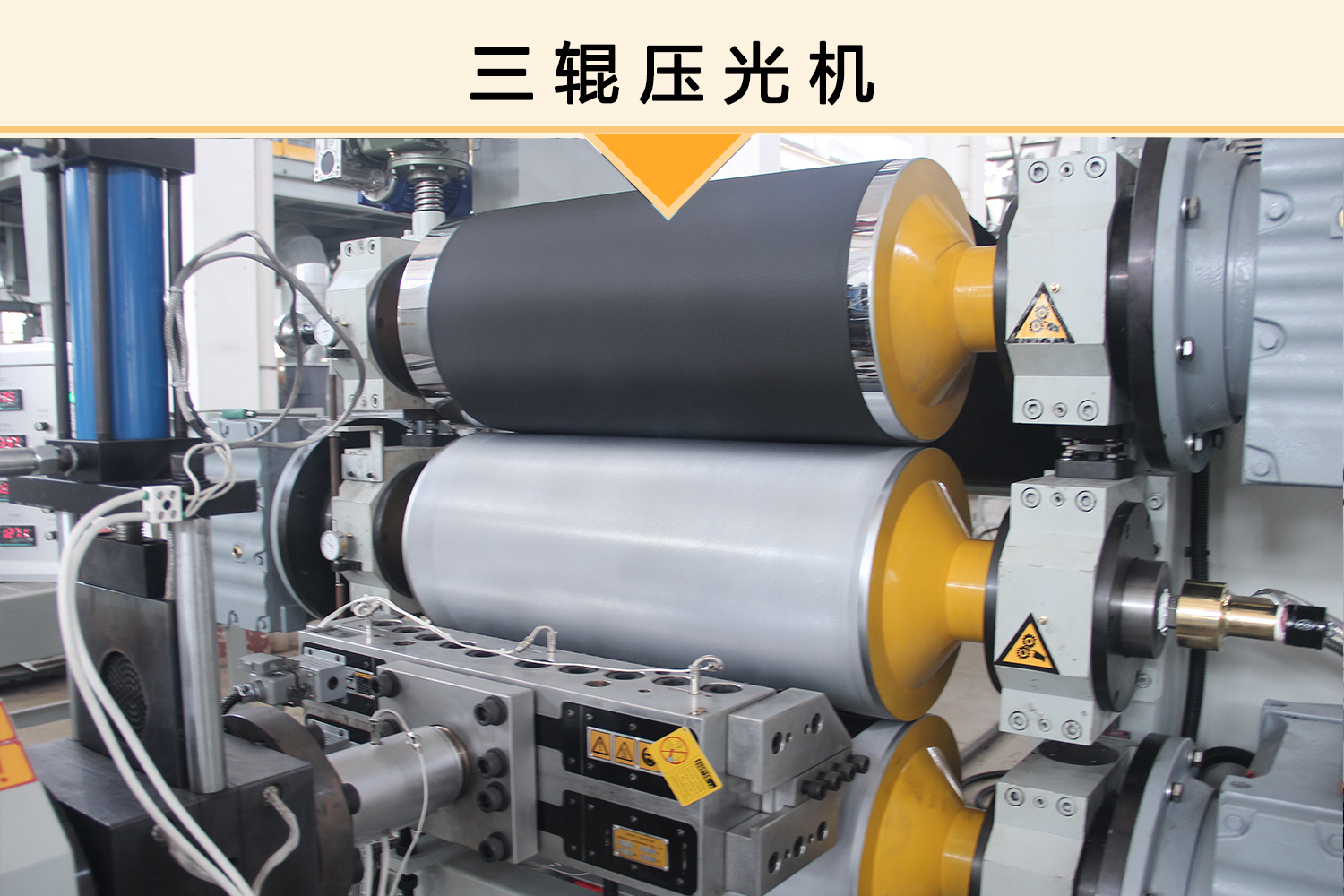

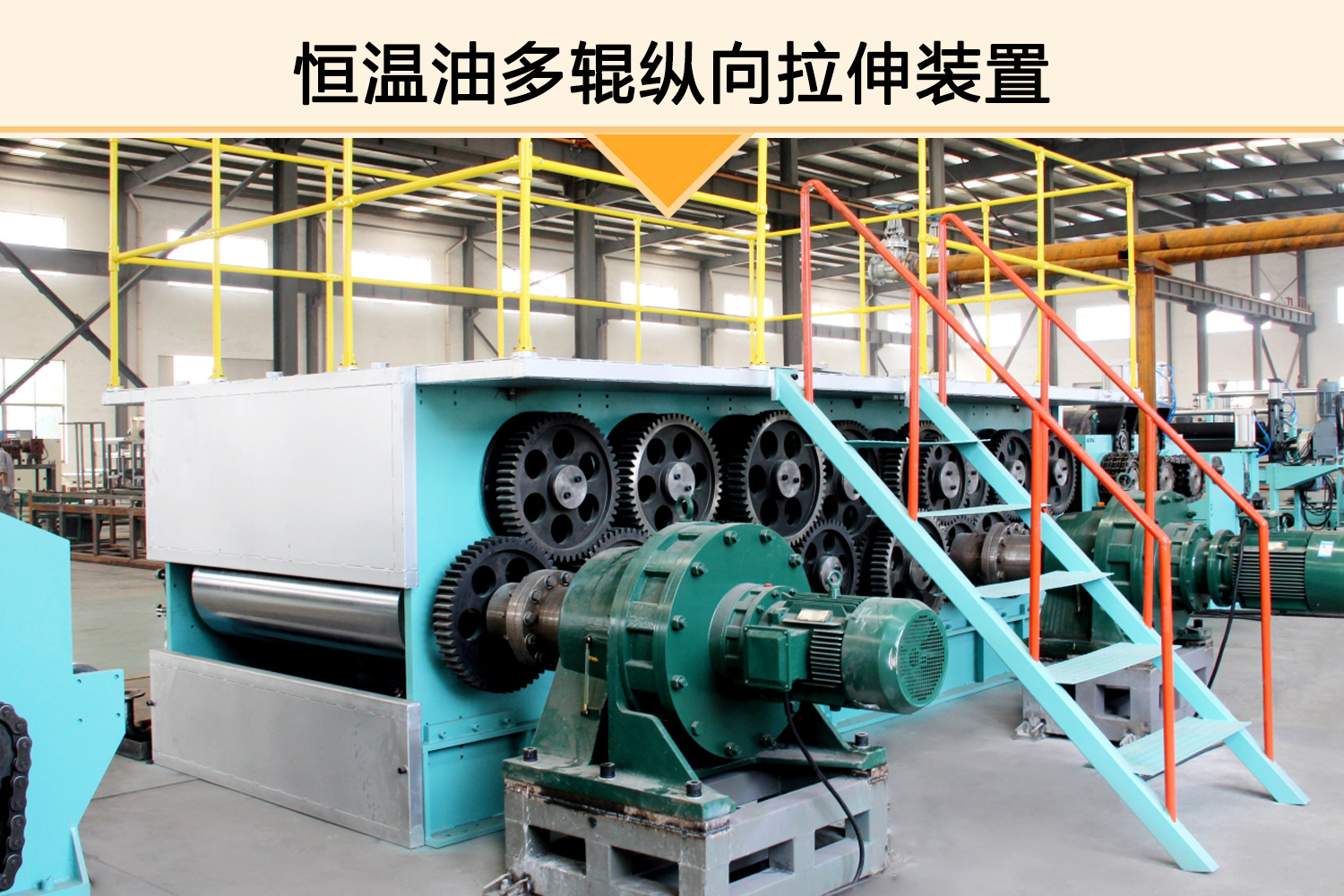

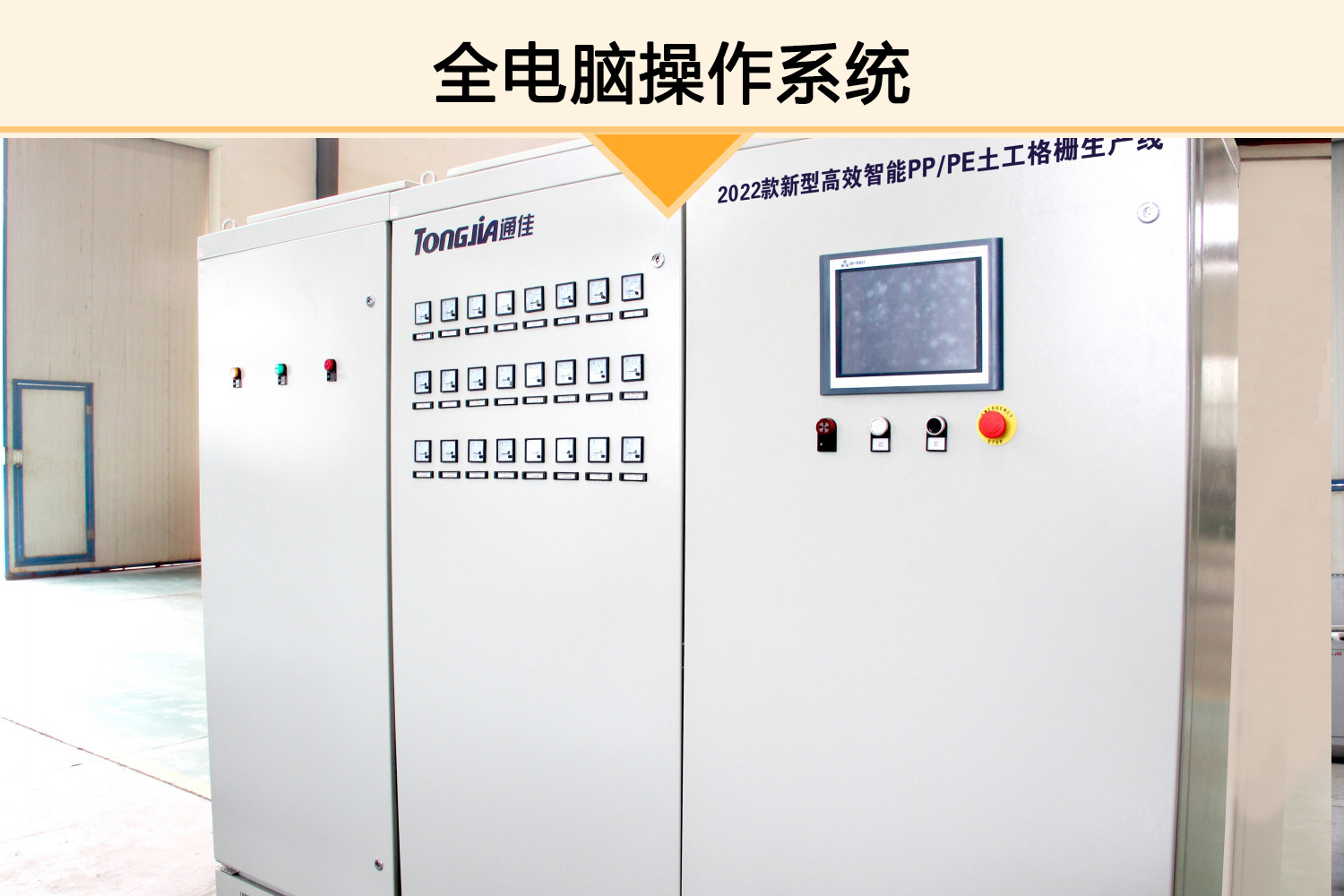

Equipment Display



TONGJIA

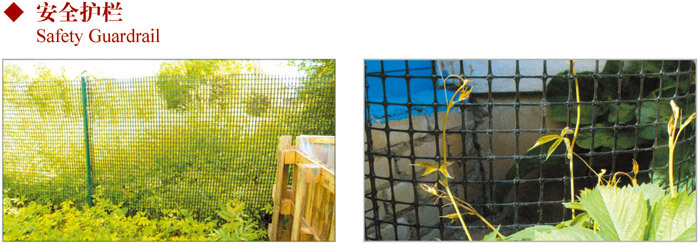

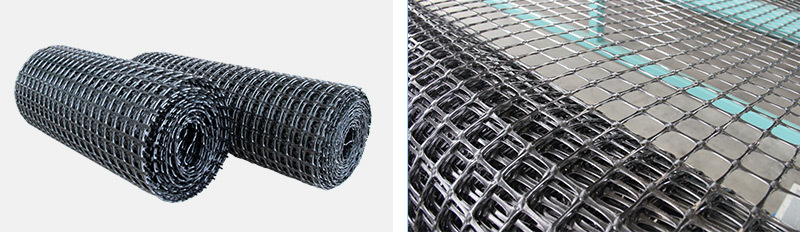

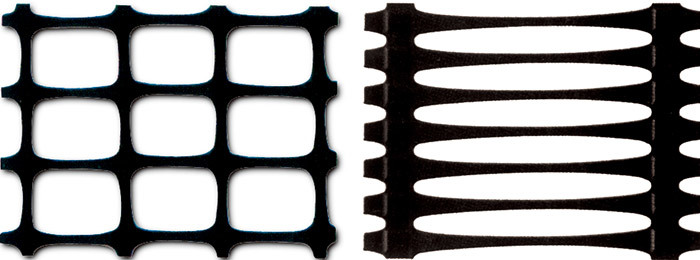

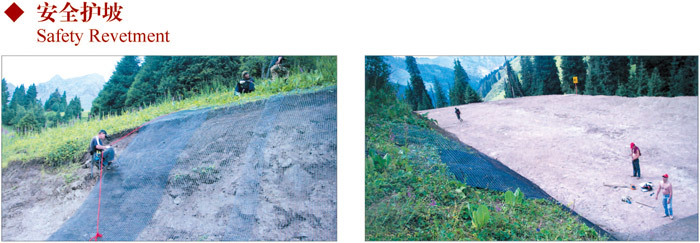

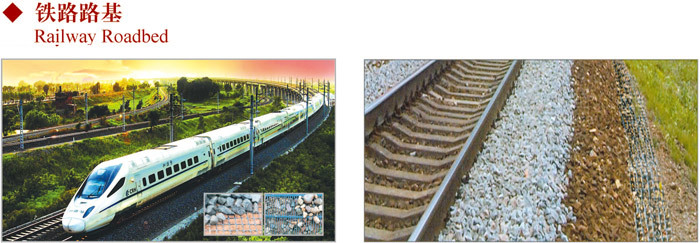

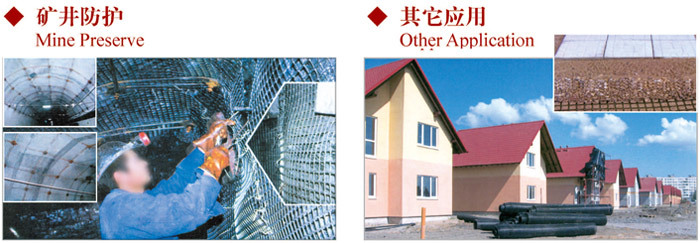

Product Applications



TONGJIA



TONGJIA



TONGJIA

TONGJIA

TONGJIA

TONGJIA
