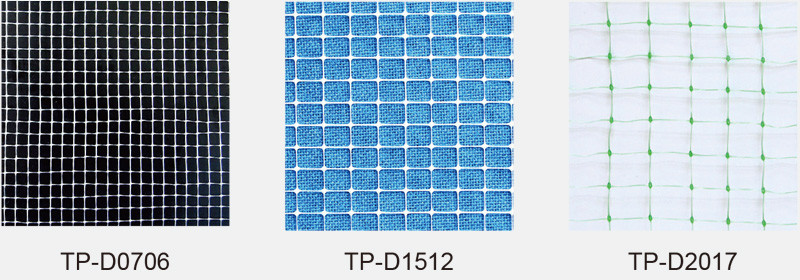

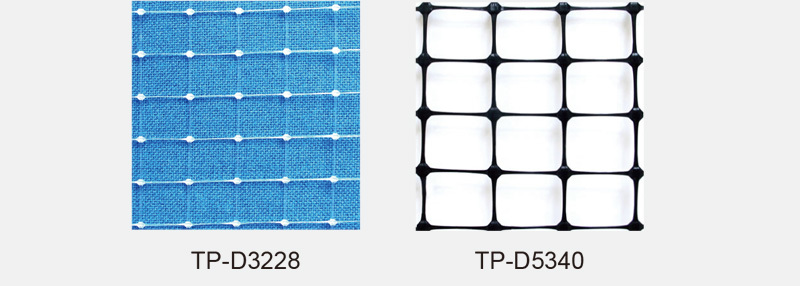

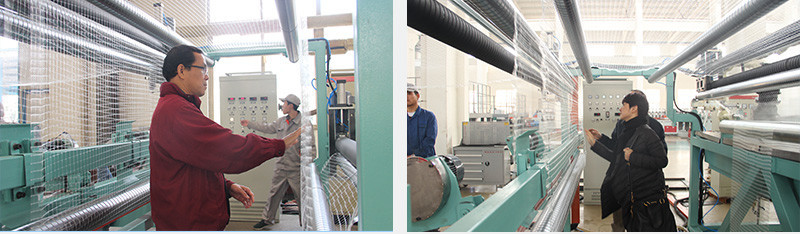

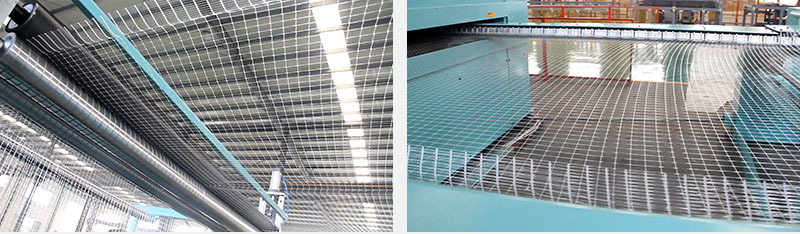

This production line integrates cutting-edge industry technology with our company's years of experience in plastic net material manufacturing, developed through innovation and improvement as a new type of precision plastic net material equipment. The produced net materials have uniform and aesthetically pleasing mesh, a fine and smooth surface, and when paired with striking colors, their market application fields are rapidly expanding. After being stretched in both longitudinal and transverse directions to form a biaxially stretched square grid, the material is not only lightweight per unit area but also has superior mechanical properties, widely used in building foundations, reinforcement for packaging paper bags; 3D vegetation base nets, plant support nets; safety nets for road repairs; courtyard fences, home decorations, and more.
Equipment Parameters
| Model | TJ-SLW45 | TJ-SLW65 | TJ-SLW75 | |
| Screw diameter | mm | Φ45×2 | Φ65×2 | Φ75×2 |
| aspect ratio | 30:01:00 | 30:01:00 | 30:01:00 | |
| screw speed | r/min | 5-80 | 5-60 | 5-50 |
| Motor power | KW | 7.5×2 | 22×2 | 37×2 |
| Heating power (approx.) | KW | 20 | 35 | 50 |
| Product width | mm | 2000 | 2000 | 2000 |
| Installed capacity (approx.) | KW | 120 | 160 | 220 |
| Overall dimensions (length × width × height) (approx.) | m | 24×3.5×3.5 | 25×3.5×3.5 | 26×3.5×3.5 |
Product Applications
