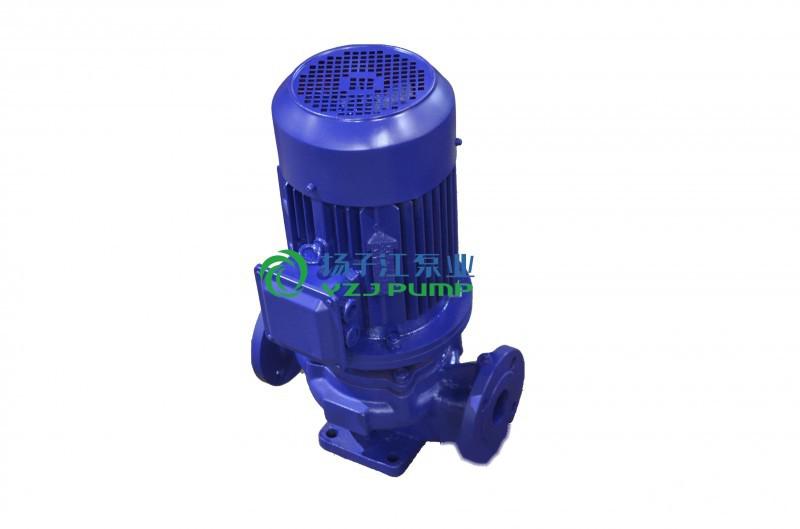

IRG Series Single-Stage Hot Water Pump|Single Suction Hot Water Circulation Pump|Stainless Steel Hot Water Pump is a single-stage single-suction cantilever centrifugal pump, suitable for heating, hot water, air conditioning systems in various buildings, as well as in industries such as metallurgy, rubber, dyeing, and sugar manufacturing. It is used to transport media with temperatures not exceeding 180°C and inlet pressures not exceeding 0.8 MPa.
IRG Series Single-Stage Hot Water Pump|Single Suction Hot Water Circulation Pump|Stainless Steel Hot Water Pump Parameter Range:
Flow RateQ 5.4~400m3/s
HeadH 4~80m
IRG Series Single-Stage Hot Water Pump|Single Suction Hot Water Circulation Pump|Stainless Steel Hot Water Pump Model Description:
IRG100－65J－200A
IRG－Single-Stage Single-Suction Hot Water Centrifugal Pump
100－Inlet Diameter (mm)
65－Outlet Diameter (mm)
J－Indicates a change in motor speed
200－Impeller Nominal Diameter (mm)
A－Indicates a change in impeller diameter (B and C represent the second and subsequent cutting of impellers respectively)
IRG Series Hot Water Pump Structure Type:
The pump is installed horizontally, with axial suction and radial discharge. The pump body is of a back-opening design, allowing for maintenance without disassembling the pump body, inlet, and outlet pipes. The shaft seal uses packing seal or mechanical seal. The bearing is a rolling bearing, lubricated with thin oil. There are two types of pump covers: one has an internal water seal hole, and the other has an external water seal hole, which must be specified at the time of order.
IRG Series Hot Water Pump Rotation Direction:
Looking from the motor side, the pump rotates in a counterclockwise direction.
IRG Series Hot Water Pump Main Component Materials:
The material of the pump's flow parts is generally gray cast iron.
IRG Series Hot Water Pump Complete Set Scope:
The complete set includes the pump, motor, common base, and coupling, and also provides check valves, gate valves, low valves, and discharge cone pipes. Whether to include the discharge cone pipe must be specified by the user based on the piping installation.
Vertical Single-Stage Hot Water Pipeline Centrifugal Pump Working Conditions
1. Inlet pressure ≤1.0 MPa, or pump system maximum working pressure ≤1.6 MPa, i.e., inlet pressure + pump head ≤1.6 MPa, pump static pressure test pressure ≤2.5 MPa. Please specify the system working pressure when ordering. If the pump system working pressure exceeds 1.6 MPa, it should be specified during ordering so that the pump's flow parts and connection parts can be made of cast steel.
2. Ambient temperature < 40℃, relative humidity < 40%.
4. The solid particle volume content in the conveyed medium does not exceed 0.1 per unit volume, and the particle size < 0.2 mm.
Note: If the conveyed medium contains fine particles, please specify at the time of order so that the factory can use wear-resistant mechanical seals.
