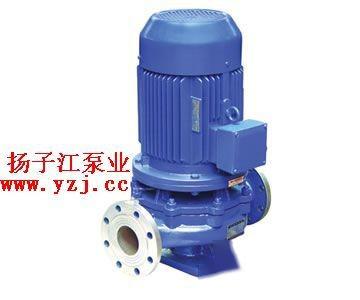

IHGStainless Steel Corrosion-Resistant Pipeline Pump;Stainless Steel Corrosion-Resistant Pump;Stainless Steel Pipeline Pump;Corrosion-Resistant Pipeline Pump

1. Stainless Steel Pipeline PumpProduct Overview:
　　IHGStainless Steel Corrosion-Resistant Pipeline PumpAlso known as (Stainless Steel Pipeline Pump、Stainless Steel Centrifugal Pump、Stainless Steel Pipeline Centrifugal Pump、Stainless Steel Pipeline Centrifugal Pump、Pipeline Booster Pump、Hot Water Circulation Pump、Hot Water Pipeline Pump etc., this product is based on the performance parameters of IS Type Centrifugal Pump and the advantages of the old pipeline pump structure, strictly designed according to international standard ISO2858 and new national standards, resulting in an efficient and energy-saving product, which replaces conventional products such as IS Type Centrifugal Pump and Vertical Multistage Centrifugal Pump. The flow range is 1.1~1345m3/h, and the head range is 2.8~150m, with over 250 specifications including standard type, expanded flow type, A, B, C cutting types, etc. Based on different flow media and temperatures, it is designed and manufactured into hot water pipeline pumps, Stainless Steel Pipeline Pumps, Vertical Pipeline Oil Pumps, and IHGB series vertical explosion-proof chemical pumps with the same performance parameters. The Stainless Steel Pipeline Pump features high efficiency, energy saving, low noise, and reliable performance. It meets the new national mechanical industry standard JB/T53058-93 and is designed and manufactured according to international ISO2858 standards.
2. Stainless Steel Pipeline PumpProduct Features　

1. Stainless Steel Pipeline Pumphas a vertical structure, with the same inlet and outlet diameter, located on the same centerline, allowing for installation in the pipeline like a valve, with a compact and aesthetically pleasing design, occupying a small area, and low construction investment. It can be placed outdoors if a protective cover is added.
2. The Stainless Steel Pipeline Pumphas the impeller directly mounted on the motor's long shaft, resulting in a short axial dimension and compact structure. The pump and motor bearing configuration is reasonable, effectively balancing the radial and axial loads generated during pump operation, ensuring smooth operation, low vibration, and low noise.
3. The Stainless Steel Pipeline Pumpuses mechanical seals or combinations of mechanical seals, employing imported titanium alloy sealing rings, medium-temperature resistant mechanical seals, and hard alloy materials for wear-resistant sealing, effectively extending the service life of the mechanical seals.
4. The Stainless Steel Pipeline Pumpis convenient for installation and maintenance, requiring no disassembly of the pipeline system. All rotor components can be extracted by simply removing the pump unit seat nuts.
5. The Stainless Steel Pipeline Pumpcan be used in series or parallel according to the requirements of flow and head.
6. The Stainless Steel Pipeline Pumpcan be installed vertically or horizontally according to the layout requirements of the pipeline.

3. Stainless Steel Pipeline PumpMain Applications
　　　1. ISGVertical Pipeline Centrifugal Pump is used to transport clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and municipal water supply and drainage, high-rise building water boosting, garden irrigation, fire-fighting pressure boosting, long-distance transportation, HVAC circulation, and bathroom hot and cold water circulation boosting and equipment matching, with a usage temperature of T＜80℃.
　　2. IRG type Hot Water Pipeline Centrifugal Pump is widely applicable in energy, metallurgy, chemical, textile, papermaking, and hotel industries for high-temperature hot water boosting circulation delivery from boilers and urban heating system circulation pumps, with IRG type usage temperature T＜120℃ and GRG type usage temperature T＜240℃.
　　3. IHG typeStainless Steel Pipeline Centrifugal Pump is used to transport liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, papermaking, food and pharmaceutical, and synthetic fiber industries, with a usage temperature of -20℃ ~ 120℃.
　　4. YG typeVertical Pipeline Centrifugal Oil Pump is used to transport petroleum products such as gasoline, kerosene, and diesel, with the temperature of the transported medium ranging from -20℃ to +120℃.

5. IHGBType Vertical Explosion-Proof Chemical Pump is used to transport liquids that do not contain solid particles, are corrosive, have a viscosity similar to water, and are flammable and explosive. It is suitable for light textile, petroleum, chemical, metallurgy, mining, pharmaceutical, and synthetic fiber industries, with a usage temperature of-20℃~120℃.　　Note: The suction pressure of the Stainless Steel Pipeline Pump should be ≤1.0MPa, or the system's maximum working pressure should be ≤1.6MPa, i.e., suction pressure + pump head ≤1.6MPa, and the pump static pressure test pressure should be ≤2.5MPa. Please indicate the system working pressure when ordering. If the working pressure of the pump system exceeds 1.6MPa, please specify at the time of order to allow the flow parts and connection parts of the pump to be made of cast steel during manufacturing. Environmental temperature should be <40℃, relative humidity <95.
