This machine is a specialized equipment for producing rigid plastic flat nets primarily made of polyethylene (PE). By changing the die and sizing device, it can produce various types of net materials with different structures and specifications. These are widely used as mattress spacers, anti-slip layers on embankments, road base reinforcement, plant supports, mine roof protection, livestock and aquaculture, and by using three-layer composite technology, it forms a geotechnical three-dimensional net for road base and embankment slope vegetation, hence it is also known as the versatile net.
J
Equipment Parameters
| Model | TJ-YZW65H | TJ-YZW90 | TJ-YZW120 | TJ-YZW150 | |
| Extruder | Φ65/28 | Φ90/28 | Φ120/30 | Φ150/33 | |
| screw speed | r/min | 5-40 | 5-30 | 5-25 | 5-20 |
| Product width | mm | 2000 | 2500 | 3000 | 4000 |
| Installed capacity (approx.) | KW | 60 | 86 | 180 | 220 |
| Approximate Overall Dimensions | m | 9.6×2.9×3.4 | 12×3.1×3.5 | 16×3.8×4.2 | 18×5.2×4.8 |
| Machine weight (approx.) | T | 5 | 6 | 8 | 10 |

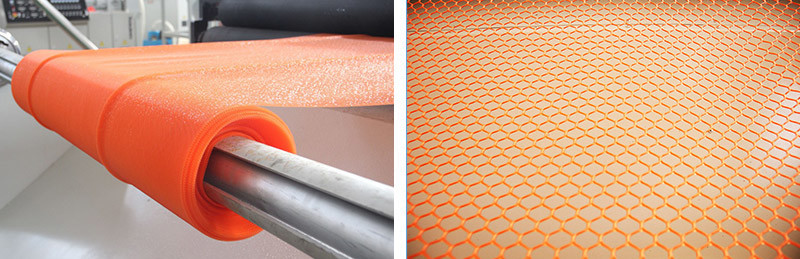

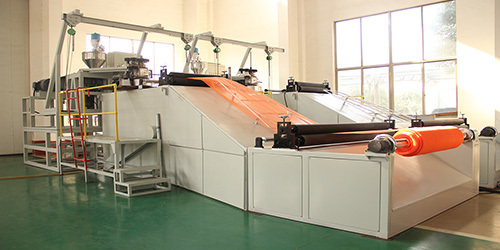

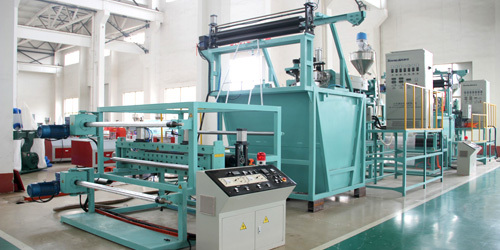

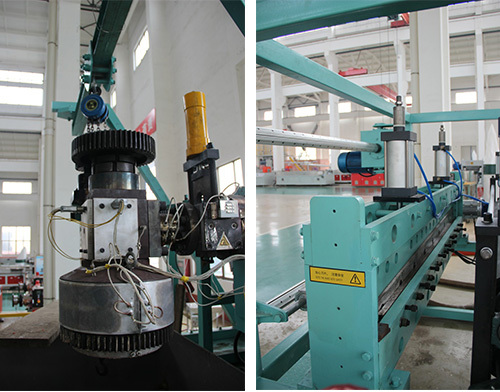

Equipment Display

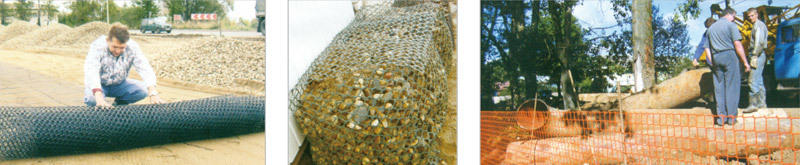

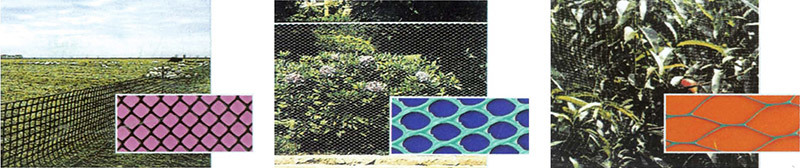

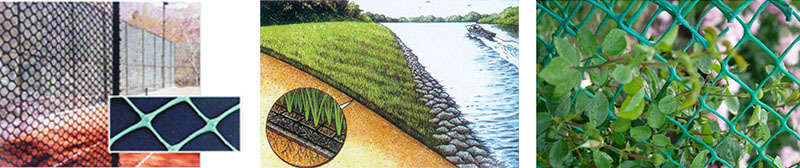

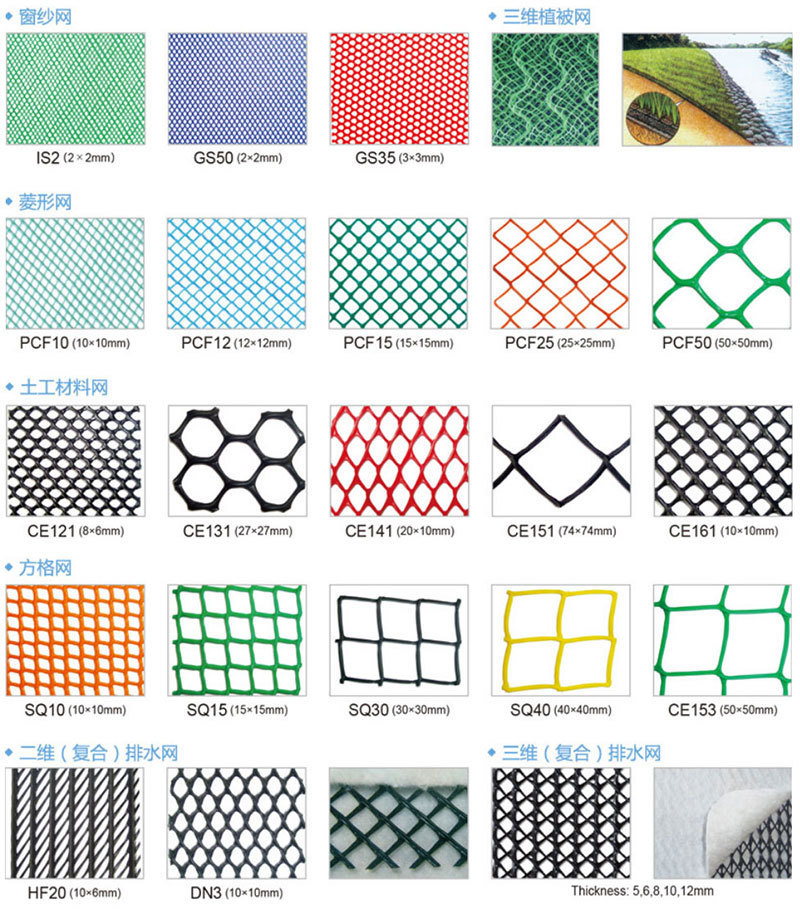

Product Applications
