1. Product Overview

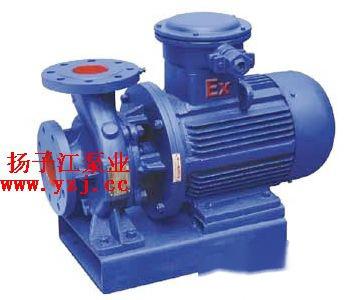

ISWBHorizontal Single-Stage Single-Suction Explosion-Proof Oil Pump is a product developed based on the ISW series, suitable for oil pumping. This series of pumps features excellent performance, high reliability, long service life, reasonable structure, and aesthetic appearance, meeting industry standards.
2. Applications
ISWBHorizontal Single-Stage Single-Suction Explosion-Proof Oil Pump is used for conveying petroleum products such as gasoline, kerosene, and diesel oil, with a conveying medium temperature range of -20℃ to +105℃.
3. Working Conditions:
1. Inlet pressure ≤ 1.6 MPa, or the pump system working pressure ≤ 1.6 MPa, i.e., pump inlet pressure + pump lift ≤ 1.6 MPa, with a pump static pressure test pressure of 2.5 MPa. Please specify the system working pressure when placing an order. If the pump system working pressure exceeds 1.6 MPa, please indicate this at the time of ordering so that the pump's flow parts and connection parts can be made of cast steel.
2. The solid particle volume content in the conveyed medium does not exceed 0.1% per unit volume, with a particle size < 0.2 mm.
Note: If the conveying medium contains fine particles, please specify when ordering so that the manufacturer can use wear-resistant mechanical seals.
4. Product Features:
Smooth Operation: The concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation with no vibration.
No Leakage: Seals made from different hard alloy materials ensure that there is no leakage when conveying different media.
Low Noise: The pump, supported by two low-noise bearings, operates smoothly and produces minimal noise except for a slight sound from the motor.
Low Failure Rate: The simple and reasonable structure, with key components using international quality standards, greatly increases the machine's fault-free working time.
Easy Maintenance: Seals and bearings can be easily replaced.
Space Efficient: The outlet can be directed to the left, right, or upwards, facilitating pipeline layout and saving space.
ISW Type Single-Stage Single-Suction Horizontal Centrifugal Pump. Uses advanced hydraulic models, designed based on the performance parameters of IS type centrifugal pumps and the unique structure of vertical pumps, and manufactured strictly according to international standard ISO 2858. This product features hard alloy mechanical seals for high efficiency, energy saving, reliable performance, and easy installation and use.
Main Features of Horizontal Pipeline Oil Pump
Smooth Operation: The concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation with no vibration.
No Leakage: Seals made from different hard alloy materials ensure that there is no leakage when conveying different media.
Low Noise: The pump, supported by two low-noise bearings, operates smoothly and produces minimal noise except for a slight sound from the motor.
Low Failure Rate: The simple and reasonable structure, with key components using international quality standards, greatly increases the machine's fault-free working time.
Easy Maintenance: Seals and bearings can be easily replaced.
Space Efficient: The outlet can be directed to the left, right, or upwards, facilitating pipeline layout and saving space.
Main Applications
1. ISW Horizontal Clean Water Pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water, applicable in industrial and urban water supply and drainage, boosting water supply for high-rise buildings, garden irrigation, fire-fighting pressure boosting, long-distance transportation, HVAC circulation, and bathroom hot and cold water circulation boosting and equipment matching, with a temperature t ≤ 80℃.
2. ISWR Horizontal Hot Water Pump is widely used in: metallurgy, chemical industry, textile, paper-making, and hotel boiler hot water pressure boosting circulation transportation, as well as urban heating systems, with ISWR type using temperature t ≤ 120℃.
3. ISWH Horizontal Chemical Pump is used for conveying liquids that do not contain solid particles and have corrosive properties similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper-making, food and pharmaceutical, and synthetic fiber industries, with a temperature range of -20℃ to +120℃.
4. ISWB Horizontal Pipeline Oil Pump is used for conveying petroleum products such as gasoline, kerosene, diesel, or flammable and explosive liquids, with a temperature range of -20 to +120℃.
