Shandong Tongjia's new high-speed fully automatic plastic biaxial geogrid production line (Model: TJ-TGGS4000) integrates the essence of years of production from well-known geogrid companies and advanced patented technology for plastic extrusion lamination. It has been meticulously optimized by renowned extruder experts, drawing on Tongjia’s extensive experience in manufacturing plastic netting equipment, to develop and manufacture this high-speed fully automatic geogrid production line! The production line speed reaches 16 meters per minute, more than double that of traditional models, surpassing the current market geogrid production speeds, once again revolutionizing industry expectations...
Equipment Parameters
| Model | TJ-TGGS4000G | TJ-TGGS6000G | |
| Extruder | Φ160/33x2 | Φ180/33x2 | |
| Screw diameter | mm | Φ160 | Φ180 |
| Die head width | mm | 1450 | 2000 |
| Punching Pressure | KN | 2500 | 3150 |

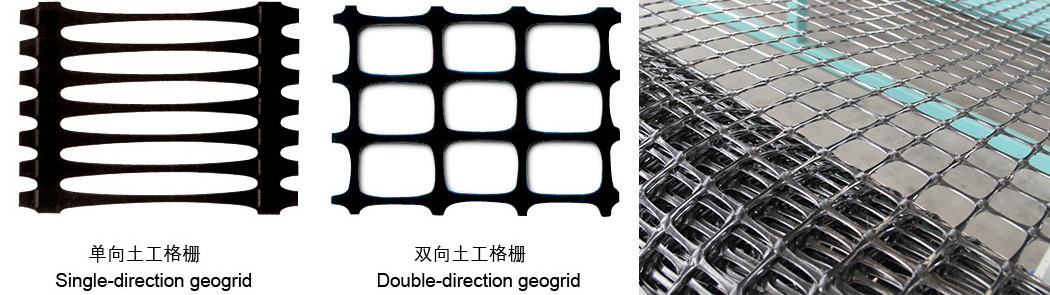

| Unidirectional product width | mm | 1200 | 2000 |
| Bidirectional product width | mm | 4000 | 6000 |
| Bidirectional product specifications | KN/m | 15-15,20-40,50-50 | |
| Overall dimensions() | m | 98×12×4.8 | 110×15×5.2 |
Equipment Display

High-efficiency single-screw extruder

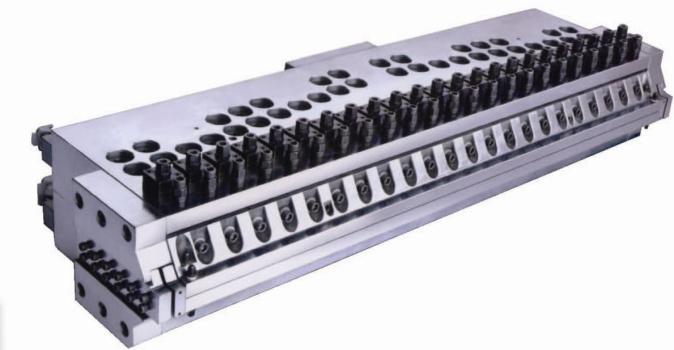

Coathanger-type flat die extrusion template

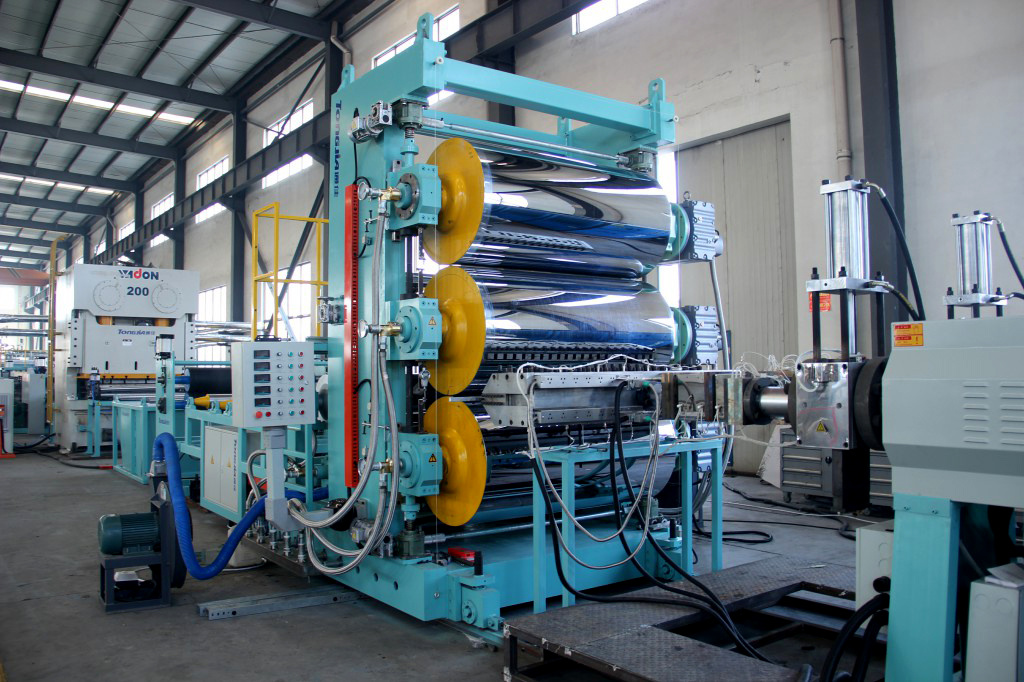

Large diameter three-roll calender

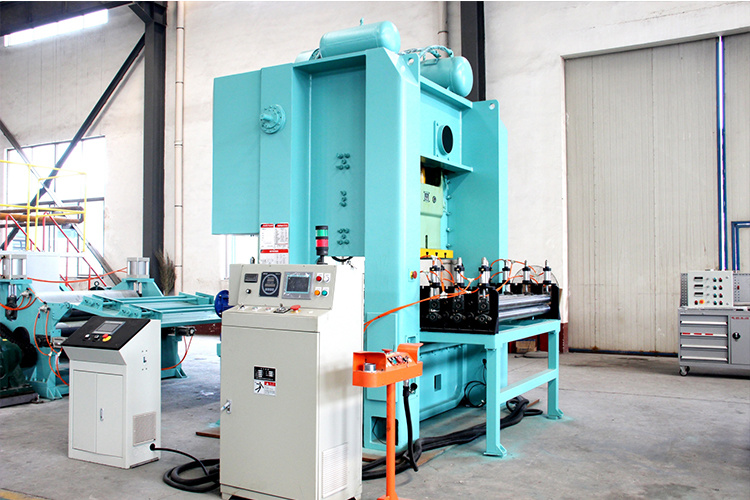

High-precision punching device

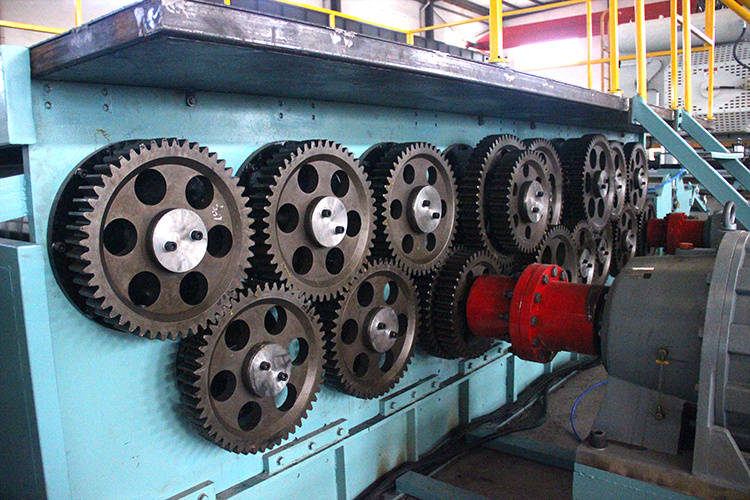

Oil constant temperature multi-roller longitudinal stretching system

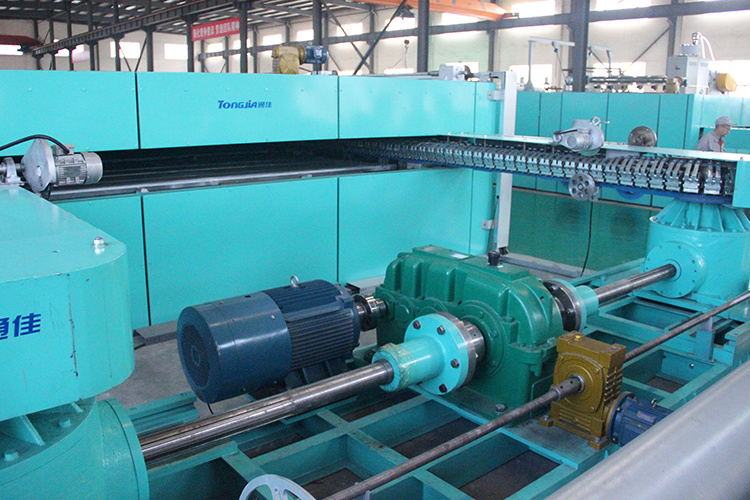

Extended adjustable width transverse stretching system

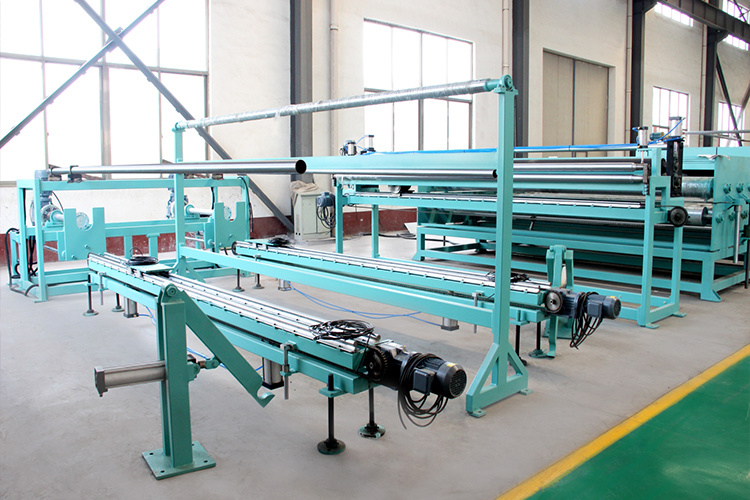

Automatic winding and cutting system
