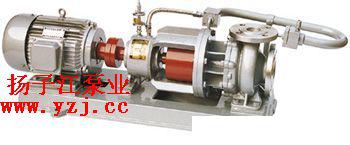

MT-HTP High-Temperature Magnetic Drive Centrifugal Pump (referred to as the
High-Temperature Magnetic Pump). The main feature of the
High-Temperature Magnetic Pump is that when the external magnetic steel of the magnetic drive rotates, the magnetic field lines pass through the gap and the isolation sleeve, acting on the internal magnetic steel, enabling the pump shaft and motor to rotate synchronously and transmit torque without contact. At the power input end of the pump shaft, since the liquid is sealed in the stationary isolation sleeve with no dynamic seal, it completely eliminates the inevitable phenomena of running, venting, dripping, and leaking in the petrochemical industry, resulting in zero leakage. This type of
magnetic pump is suitable for transporting toxic, harmful, flammable, explosive, and valuable liquid media, making it an ideal pump for creating a leak-free and pollution-free civilized workshop and factory.
**Scope of Application**
The MT-HTP series
magnetic pump is suitable for industries such as petroleum, chemical, pharmaceutical, electroplating, environmental protection, food, film and television washing, water treatment, and national defense. It is an ideal device for transporting flammable, explosive, volatile, toxic, precious, and various corrosive liquids.
**Working Conditions**
The MT-HTP series
magnetic pump has flow components primarily made of Class II and Class III metals, and it can also be lined with non-metallic materials or thermosetting plastics. This type of pump is collectively referred to as metal
magnetic pump, suitable for transporting liquids with an inlet pressure greater than its vapor pressure of 0.1 MPa, a maximum outlet pressure of 4.0 MPa, a temperature not exceeding 350 °C, a density not greater than 1600 kg/m³, and a viscosity not exceeding 30×10⁻⁶ m²/S, which do not contain ferromagnetic particles and fibers.
**Model Significance**
**Performance Range (at rated point performance)**
- **Flow Rate:** 3.2 to 100 m³/h
- **Head:** 15 to 80 m
- **Temperature:** -45 to 350 °C
- **Pump Inlet Diameter:** 32 to 100 mm
- **Speed:** 2850 to 2900 r/min
- **Power:** 1.1 to 55 kW
**Structure Diagram**
**Performance Parameters of MT-HTP Stainless Steel High-Temperature Magnetic Pump**
| Model | Inlet Diameter (mm) | Outlet Diameter (mm) | Flow Rate (m³/h) | Head (m) | Motor Power (kW) | Voltage (V) | Material |
|-----------------------|----------------------|-----------------------|-------------------|----------|------------------|-------------|---------------|
| MT-HTP32-25-115 | 32 | 25 | 6.6 | 15 | 1.1 | 380 | Stainless Steel|
| MT-HTP32-20-125 | 32 | 20 | 3.2 | 20 | 1.1 | 380 | Stainless Steel|
| MT-HTP 32-20-160 | 32 | 20 | 3.2 | 32 | 1.5 | 380 | Stainless Steel|
| MT-HTP 40-25-125 | 40 | 25 | | | | | |
