Magnetic Drive Pump;Stainless Steel Magnetic Pump; Corrosion-Resistant Magnetic DriveCentrifugal Pump;CQB Type Magnetic Pump

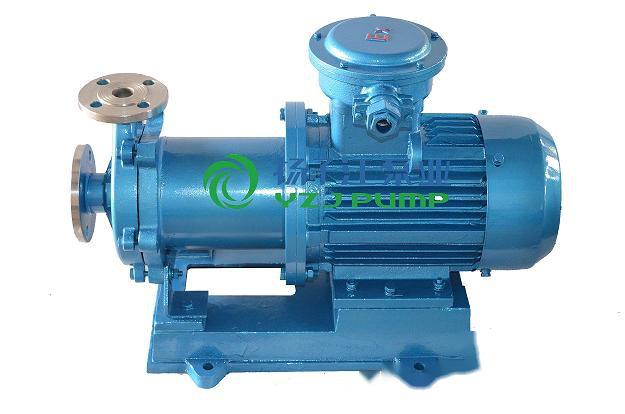

CQB TypeMagnetic Drive Pump Overview:
CQB Type Magnetic Drive Pump is a new type of completely leak-free Corrosion-Resistant Pump developed by the national joint design team for magnetic pumps, with technical and economic indicators comparable to similar foreign products from the late 1980s, serving as a supplement and improvement to CQ Type Pump. Main features: The pump's flow parts are made of all stainless steel materials, providing excellent corrosion resistance to organic acids, organic compounds, alkalis, neutral solutions, and various gases. The double helical groove carbon graphite bearings and hard alloy sleeves have strong wear resistance, ensuring the product's lifespan, making it an ideal pump for leak-free transportation of corrosive media. It is an ideal pump for leak-free transportation of corrosive media, optimized jointly designed magnetic pump product in the country, capable of directly replacing IH Type Chemical Process Pump.
CQB TypeMagnetic Drive Pump Application Range:
CQB Series Magnetic Pump is widely used in industries such as petroleum, chemical, metallurgy, pharmaceuticals, electroplating, and environmental protection, capable of transporting flammable, explosive, toxic, and precious liquids at temperatures below 100℃. It adopts magnetic drive principles, ensuring leak-free transportation of corrosive media. Flow rate: 3.2-100m3/h; Head: 20-80m; Power: 0.75-75KW
CQB TypeMagnetic Drive Pump Model Significance:
CQ Series Lightweight Stainless Steel Magnetic Pump
1. Excellent corrosion resistance
Flow components are made from stainless steel, high-density carbon, high-purity alumina ceramics, and filled PTFE, along with a leak-free sealing structure, ensuring safe transportation of chemical fluids.
2. High efficiency/energy-saving design
The pump's efficiency reaches 50-55%, with energy-saving considerations integrated into the design process.
3. Simple maintenance
Simple structure with modular main components for easy and quick disassembly and inspection. Worn parts can be replaced separately.
CQ Series Lightweight Engineering Plastic Magnetic Pump
1. Excellent corrosion resistance
Flow components are made from stainless steel, high-density carbon, high-purity alumina ceramics, and filled PTFE, along with a leak-free sealing structure, ensuring safe transportation of chemical fluids.
2. High efficiency/energy-saving design
The impeller and magnetic inner rotor are integrally molded, significantly improving pump efficiency and reducing the size of pump components.
3. Simple maintenance
Simple structure with modular main components for easy and quick disassembly and inspection. Worn parts can be replaced separately.
CQB TypeMagnetic Drive PumpStructural Diagram
