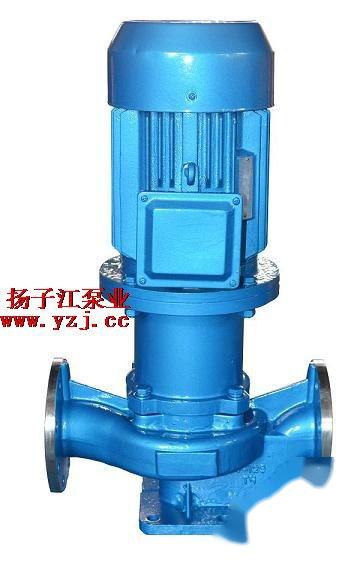

Magnetic Drive Pump: CQB-L Explosion-Proof Vertical Magnetic Drive Pipeline Pump

Magnetic pipeline centrifugal pumps are a new type of pipeline pump developed by our company based on more than ten years of design and manufacturing experience with horizontal magnetic pumps. They combine the characteristics of ISG type pipeline centrifugal pumps with the advantages of magnetic chemical pumps, representing a new generation of leak-free pipeline centrifugal pumps. **◆ Features** 1. Operates without leakage, capable of transporting flammable, explosive, highly toxic, and corrosive media; 2. High-quality materials, with the pump body, impeller, isolation sleeve, and other flow parts made of stainless steel; 3. The shaft sleeve uses highly wear-resistant silicon carbide and tungsten carbide, while the sliding bearing employs carbon stone M106K and is equipped with a lubrication oil groove to effectively ensure the pump's service life; 4. Vertical installation, compact structure, and small footprint; 5. Low vibration, low noise, and particularly smooth operation; 6. Most of the pump's components are interchangeable with those of the CQB series magnetic pump, and the performance of the pump is the same as the CQB series; flow rate is 3.2-100 m³/h; head is 20-80 m; power is 0.75-75 kW. **■ Structure Diagram:**  | No. | Part Name | |-----|--------------------| | 1 | Pump Shell | | 2 | Impeller | | 3 | Seal Ring | | 4 | Bearing Body | | 5 | Isolation Sleeve | | 6 | Thrust Ring | | 7 | Bearing | | 8 | Shaft Sleeve | | 9 | Shaft | | 10 | Inner Magnet Assembly| | 11 | Nut | | 12 | Connecting Frame | | 13 | Outer Magnet Assembly| | 14 | Motor |
