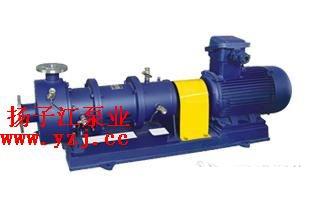

CQB-G Type High Temperature Insulated Magnetic Pump adopts a multi-circulation cooling structure, ensuring the reliability and stability of the prime mover and magnetic drive. At the same time, it utilizes a pin coupling to reduce the noise and vibration of the pump. The combination of a detachable design and pin coupling enhances the structure of the pump, facilitating better heat dissipation. Additionally, it is very convenient for users to maintain or replace parts. The outer rotor section of the pump is also designed with heat dissipation fan blades to ensure the stability of the magnetic steel. This series of pumps is suitable for transporting high-temperature media, with a temperature ≤ 300℃.
CQB-G Type Stainless Steel High Temperature Magnetic Pump Model Significance:
■High Temperature Insulated Magnetic Pump Performance Parameters
Model
|
Diameter
|
Flow Rate
(m3 /h) |
Head
|
NPSH |
Motor Power
KW |
Speed
(r/min) |
Voltage
(V) |
|
Inlet (mm)
|
Outlet (mm)
|
|||||||
CQB32-20-125G
|
32
|
20
|
3.2
|
20
|
4.5
|
1.5
|
2900
|
380
|
CQB32-20-160G
|
32
|
4.5
|
2.2
|
2900
|
380
|
|||
CQB40-25-125G
|
40
|
25
|
6.3
|
20
|
4.5
|
2.2
|
2900
|
380
|
CQB40-25-160G
|
32
|
4.5
|
3
|
2900
|
380
|
|||
CQB40-25-200G
|
50
|
4.5
|
5.5
|
2900
|
380
|
|||
CQB50-32-125G
|
50
|
32
|
12.5
|
20
|
4.0
|
3
|
2900
|
380
|
CQB50-32-160G
|
32
|
4.0
|
4
|
2900
|
380
|
|||
CQB50-32-200G
|
50
|
4.0
|
7.5
|
2900
|
380
|
|||
CQB50-32-250G
|
80
|
4.0
|
15
|
2900
|
380
|
|||
CQB65-50-125G
|
65
|
50
|
25
|
20
|
4.0
|
5.5
|
2900
|
380
|
CQB65-50-160G
|
32
|
4.0
|
7.5
|
2900
|
380
|
|||
CQB65-40-200G
|
40
|
50
|
4.0
|
15
|
2900
|
380
|
||
CQB65-40-250G
|
80
|
4.0
|
22
|
2900
|
380
|
|||
CQB80-65-125G
|
80
|
65
|
50
|
20
|
3.5
|
7.5
|
2900
|
380
|
CQB80-65-160G
|
32
|
3.5
|
15
|
2900
|
380
|
|||
CQB80-50-200G
|
50
|
50
|
3.5
|
22
|
2900
|
380
|
||
CQB80-50-250G
|
80
|
3.5
|
37
|
2900
|
380
|
|||
CQB100-80-125G
|
100
|
80
|
100
|
20
|
3.2
|
15
|
2900
|
380
|
CQB100-80-160G
|
32
|
3.2
|
22
|
2900
|
380
|
|||
CQB100-65-200G
|
65
|
50
|
3.2
|
37
|
2900
|
380
|
||
CQB100-65-250G
|
80
|
3.2
|
55
|
2900
|
380
|
