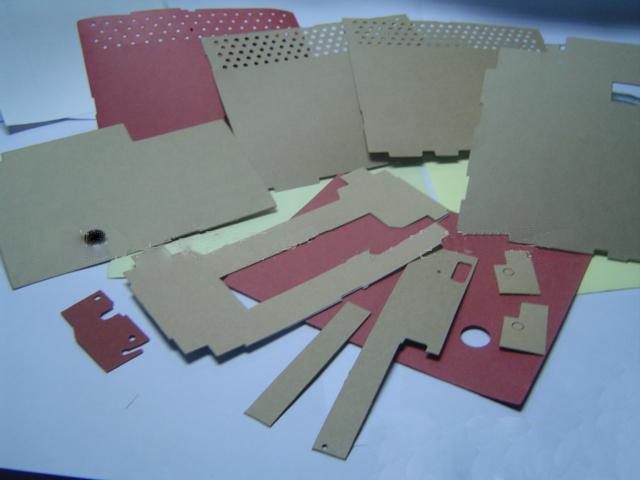

Insulation Paper
Heat Resistance Level: Class E 120℃
Standards: JB/T4095-1991
Composition: A two-layer composite material made of PET film and electrical insulation paperboard.
Characteristics and Applications: The 6520 polyester film insulation paper composite foil has good dielectric properties and high mechanical strength. Suitable for use in small motors and electrical appliances for
slot insulation, lining insulation, and layer-to-layer insulation.
Available Specifications: Thickness: 0.15mm, 0.17mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm
Width: 1000mm. Color: Blue, Green, Cyan, Brown
Packaging: Woven bags or cardboard boxes.
DuPont NOMEX Insulation Paper Series
● NOMEX 410 paper is a high-quality insulation material produced by DuPont.
● NOMEX 410 paper products possess an appropriate performance balance, suitable for transformers, motors, generators, and other electrical equipment.
● NOMEX Physical Properties:
Unique Dielectric Strength
NOMEX products can withstand electric stress/dielectric stress of 18*40KV/mm (457*1015V/mil), depending on the model and thickness, and do not require further treatment with varnish or resin.
● Mechanical Toughness
Dense NOMEX products have very high strength and resilience. Thinner products have flexibility, and all products exhibit good tear and abrasion resistance.
● Thermal Stability
NOMEX products are minimally affected by temperatures not exceeding 200℃, and their electrical and mechanical properties remain unaffected, even at high temperatures. Additionally, these effective properties of NOMEX products can allow for long-term operation when continuously exposed to temperatures of 220℃. Even at 250℃, NOMEX products will not melt, flow, or promote combustion.
● Chemical Compatibility
NOMEX is generally unaffected by most solvents and is highly resistant to acid and alkali corrosion. It is compatible with all types of paints, adhesives, transformer fluids, lubricants, and coolants, and due to NOMEX products being difficult to digest, they are not susceptible to degradation by insects, fungi, or mold.
● Low-Temperature Performance
Due to NOMEX's unique polymer structure, it can be used in various low-temperature applications, where the tensile strength of NOMEX 410 insulation paper and NOMEX 993 laminates exceeds room temperature strength values at the boiling point of nitrogen (77K).
● Insensitivity to Moisture
When NOMEX products are balanced at a relative humidity of 95%, their dielectric strength is 95% of that in a completely dry state, while many mechanical properties actually improve.
● Non-Toxic / Flame Resistant
NOMEX products do not produce any known toxic reactions in humans or animals, do not melt in air, and do not promote combustion. At 220℃, their limiting oxygen index (LOI) is greater than 20.8 (the critical value for combustion in normal air), hence they do not burn. NOMEX products meet the flame resistance standards of UL94V-0.
● Product Diversity
NOMEX products come in many different models, with NOMEX 410 being one of them, known for its very high insulation strength, mechanical properties, elasticity, and resilience, widely used in electronic devices. With 12 thicknesses (from 0.05 to 0.76mm), NOMEX 410 is extensively used in various electronic insulation products.
DuPont Composite Insulation Material Paper Series
● NMN Composite Insulation Material: A high-quality insulation material produced by DuPont, consisting of two layers of NOMEX paper bonded with a layer of polyester film in the middle, with a heat resistance level of Class N (200℃), featuring good mechanical properties, high tensile strength, good edge tear resistance, and high electrical strength.
Application Scope: Mainly used for inter-slot and inter-phase insulation in low-voltage motors of various heat resistance levels, used as layer insulation in transformers or other electrical insulation materials.
1. Delivery Time: Generally, products are shipped within 3-5 days after order placement, but due to the large volume of products, we apologize for any delays that may occur and appreciate your understanding.
2. Product Packaging: Due to the variety of products, different products have different packaging methods. Please inquire customer service before purchasing.
3.: We support, please consult customer service for specific ticket types, we apologize for any inconvenience.
4. Logistics Methods: We have many logistics methods available, so please consult customer service before purchasing to choose the appropriate logistics method, we apologize for any inconvenience.
5. Shipping Costs: Orders of 1000 yuan or more are eligible for free shipping.
Dongguan Xinhang Industrial Co., Ltd. is located in Dongguan City, the manufacturing capital, in Tangxia Town, specializing in: EVA pads, shockproof pads, 3M adhesive tapes, aluminum foil adhesive tapes, PORON pads, PVC insulating gaskets, anti-static protective films, rebound pads; environmentally friendly sponges, plush papers, non-woven fabrics, imported high-temperature tapes, and other products. It is a comprehensive packaging enterprise integrating R&D, design, production, and marketing.

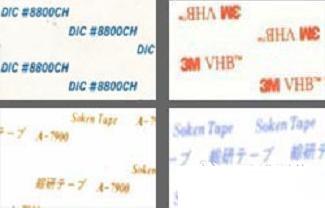

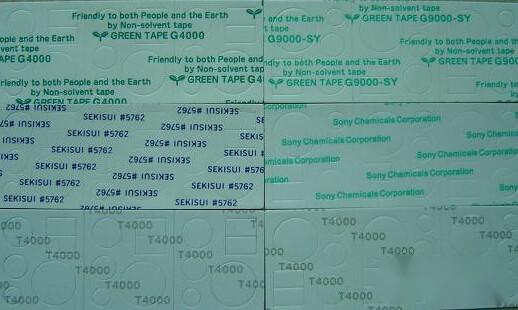

Our company's adhesive product series includes: masking tape, insulation shielding tape, 3M, Nitto, Tesa, Sony, Hitachi, and Japan's Seiko double-sided tapes, as well as other special adhesive products. They are widely used in electronics factories, medical equipment, toy factories, mobile phone factories, optoelectronic factories, plastic factories, furniture factories, hardware spray-painting factories, craft factories, and cooling systems. Our company has advanced equipment, production processes, and precision testing instruments to meet customer needs, providing you with high-quality, low-cost products, and achieving a win-win future with our customers!
