High-temperature resistant pp mute pipe pp super silent drainage pipe
Product introduction：
The high-temperature resistant pp mute pipe is a polypropylene PP super silent drainage pipe, which is a new product instead of u-PVC. The product adopts the production process of full computer control three-layer co-extrusion, the raw materials of the inner and outer layers are environmentally friendly impact-resistant copolymer polypropylene resin, and the middle layer is a special noise reduction and sound absorption material, which has good sound insulation performance and high temperature resistance.
Specifications：

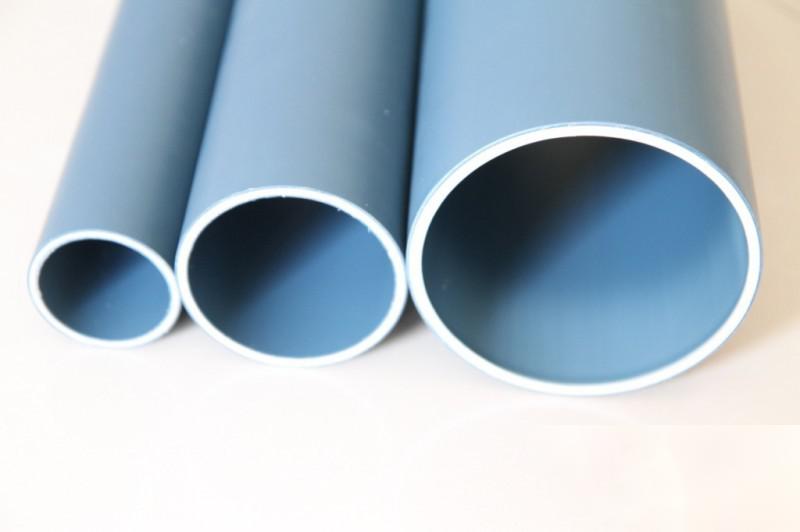

High-temperature resistant pp mute pipe size specifications:
DN50*3.2mm average outer diameter: 50.0-50.3mm wall thickness 3.2-3.5mm
DN75*3.8mm average outer diameter: 75.0-75.3mm wall thickness 3.8-4.2mm
DN110*4.5mm average outer diameter: 110.0-110.4mm wall thickness 4.5-5.0mm
DN125*4.7mm average outer diameter: 125.0-125.4mm wall thickness 4.7-5.2mm
DN160*5.0mm average outer diameter: 160.0-160.5mm wall thickness 5.0-5.6mm
DN200*6.5mm average outer diameter: 200.0-200.6mm wall thickness 6.5-7.0mm
Each pipe is 4 meters long.

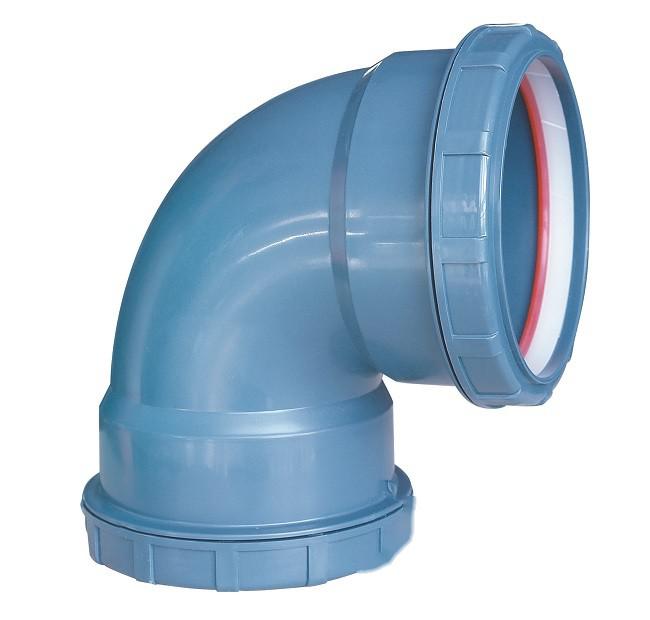

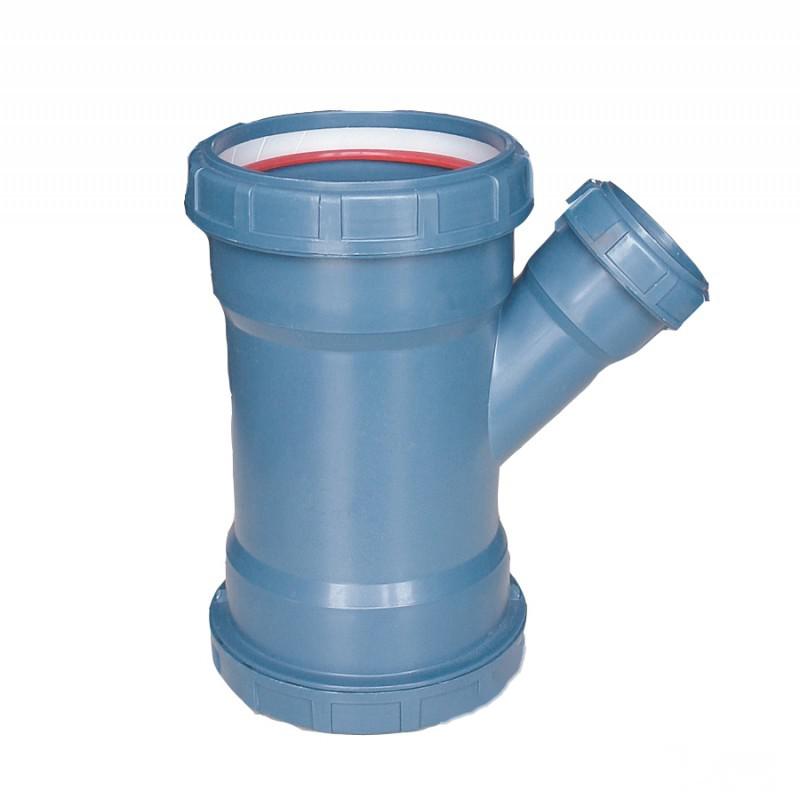

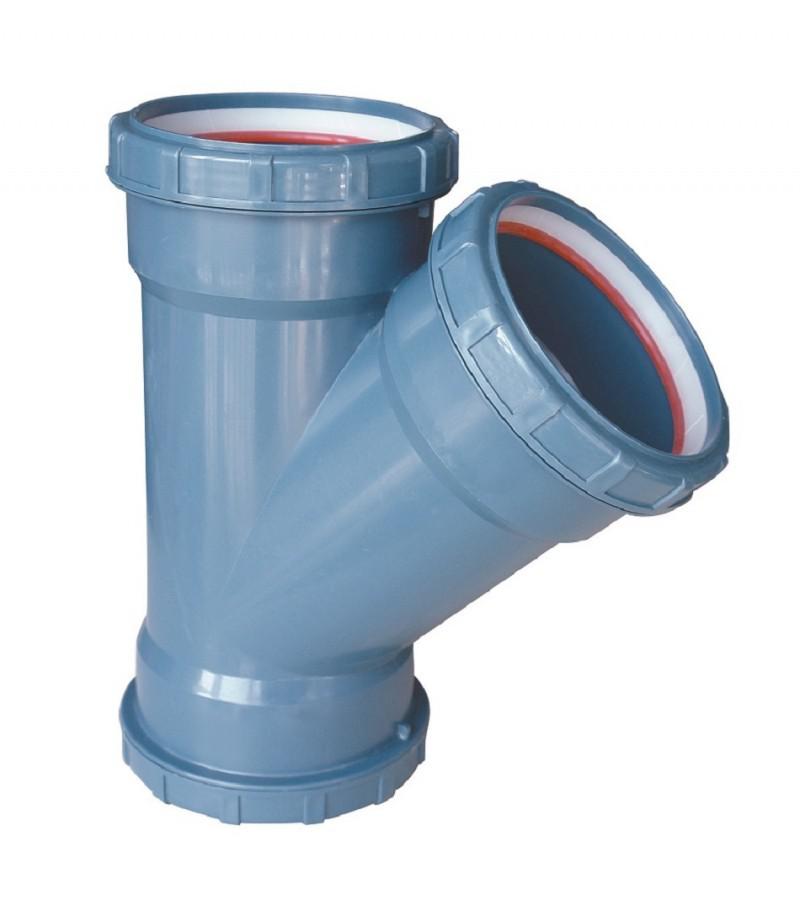

pp mute pipe fittings (elbows, tees, crosses, vent caps, floor drains, pipe clamps, S-bends, P-bends, etc.)
Advantages：
(1) Three major advantages
1. Reduce engineering costs: In general construction projects, when using flexible cast iron, the drainage budget can easily reach millions of yuan, and large engineering projects require hundreds of thousands of drainage budget. However, the 3SPP super silent pipe uses a three-layer co-extrusion one-time forming material with high-strength polypropylene plastic particles. When using the 3SPP super silent pipe material in construction projects, it can reduce the drainage engineering cost by 40%.
2. Save installation time: The design and installation method of 3SPP super silent pipe adopts a flexible socket connection structure and screw compression connection, with light weight and good portability. It does not use expansion joints and direct flanges like flexible cast iron installation, bolt fastening method, which has been praised by the first-line water and electricity installation department during actual installation. The installation efficiency of the same work group can be improved by 70%.
3. Good noise reduction effect: The 3SPP super silent pipe material and fittings, as well as the pipe material and pipe material, adopt flexible connection, which is not only convenient and fast to install, but can also avoid the transmission of noise generated when water flow impacts the pipe wall to the next pipe material or fitting, causing resonance and effectively preventing the spread of sound. Achieve sound insulation effect.
(2) Other advantages
1. Strong corrosion resistance, can withstand long-term exposure to 95° fluid in corrosive soil and pH2-PH12;
2. Smooth inner wall, lower friction resistance than conventional materials;
3. The pipes and fittings do not rust, so there will be no erosion or shrinkage changes inside;
4. The exterior walls of buildings will not be polluted due to pipe rusting, ensuring that the value of the building is not damaged;
5. Various and complete styles of pipe fittings can meet various design and installation requirements;
6. Easy installation, no need for regular maintenance;
7. One-fifth the weight of cast iron pipes, easy to transport and operate;
8. Odorless, tasteless, non-toxic;
9. Termite resistance, weather resistance, not affected by bacterial invasion;
10. The service life can reach more than 60 years under normal conditions.
