HDPE geomembrane is a waterproof and barrier material produced from (medium) high-density polyethylene resin, also known as "High-Density Polyethylene Geomembrane." It features excellent resistance to environmental stress cracking, low-temperature resistance, anti-aging, and corrosion resistance, as well as a wide operating temperature range (-60 to +60) and a long service life of 50 years. It is widely used in the impermeable projects of municipal solid waste landfills, hazardous waste landfills, wastewater treatment plants, artificial lakes, and tailings management.
↵
Product Parameters
| Specification Model | TJ-TGM3000 | TJ-TGM4000 | TJ-TGM5000 | TJ-TGM6000 | TJ-TGM8000 |
| Product width | 3000mm | 4000mm | 5000mm | 6000mm | 8000mm |
| Sheet thickness | 0.7-3mm , 1-3mm | ||||
| Screw diameter | Φ120 | Φ150 | Φ150×2 | Φ160×2 | Φ180×2 |
| aspect ratio | 33:01:00 | ||||
| Roller diameter | Φ400 | Φ500 | Φ600 | Φ700 | Φ800 |
| Production line speed | 1-5m/min (sheet)2-10m/min (coating) | ||||

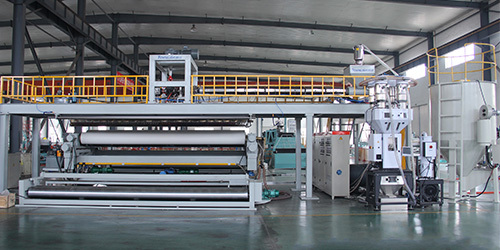

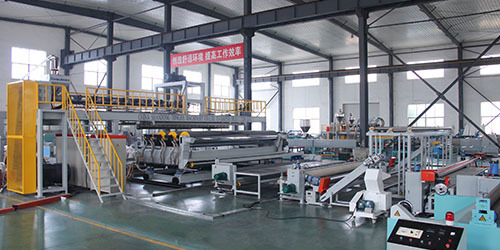

Equipment Display

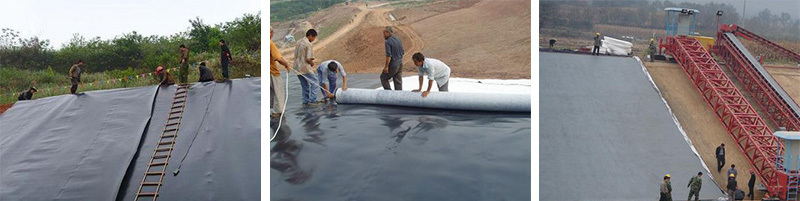

Product Applications
