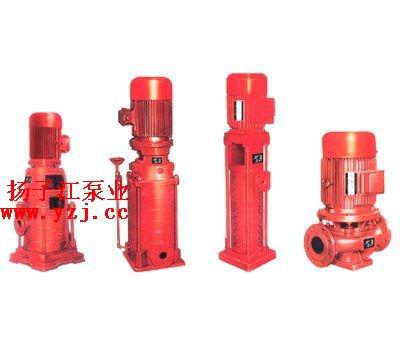

Fire Pump:XBD(I) Type Fire Pressure Stabilizing Pump

XBD(I) type fire pressure stabilizing pump is a vertical multi-stage fire pump, designed for transporting clean water without solid particles and liquids with physical and chemical properties similar to water. It is mainly used for boosting water supply in fire protection systems and can also be used for water supply and drainage in factories and mines. The flow rate of the liquid transported ranges from 5 to 80 L/S, the pressure range is from 0.2 to 2.25 MPa, the matching power range is from 1.5 to 200 KW, and the diameter range is from φ50 to φ200 mm. The XBD(I) type fire pump features energy efficiency, compact size, easy installation, and stable performance. The casing is made of 1Cr18Ni9Ti stainless steel, and the shaft seal uses wear-resistant mechanical seals, ensuring no leakage and a long service life. The pump employs hydraulic balance to address axial forces, resulting in stable operation, low noise, and better installation conditions than the XBD-DL fixed multi-stage fire pump, which can be easily installed in any section of a horizontal pipeline. XBD-L type multi-stage fire pump product features: 1. The multi-stage fire pump has a compact structure, small size, and attractive appearance. Its vertical design minimizes the installation area, and its center of gravity coincides with the pump foot center, enhancing the pump's operational stability and service life. 2. Both the inlet and outlet of the multi-stage fire pump are horizontal, simplifying the piping connection. 3. The inlet and outlet can be installed in the same direction or at different angles (90°, 180°, 270°) as needed to meet various connection requirements. 4. The pressure of the multi-stage fire pump can be adjusted by increasing or decreasing the number of pump stages and trimming the impeller diameter without changing the installation footprint, which is an advantage over other pumps. 5. The rotor has a small deviation, ensuring smooth operation, minimal vibration, low noise, and long service life. Product application: The XBD-L type fire pump is primarily used for boosting water supply in fire protection system pipelines. It is also suitable for industrial and municipal water supply and drainage, high-rise building water supply, long-distance water supply, heating systems, bathrooms, boiler hot and cold water circulation, and air conditioning cooling system water supply, as well as equipment matching. Model significance:
