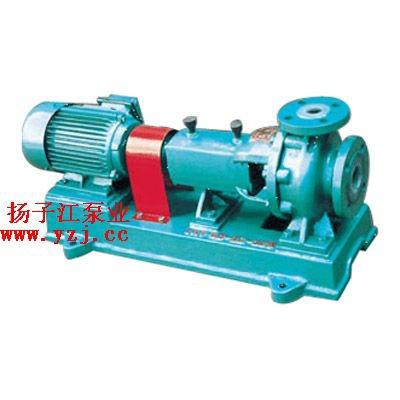

Explosion-proof Centrifugal Pump: IHF Series Fluoroplastic Lined Centrifugal Pump

The IHF type pump is a single-stage, single-suction fluoroplastic alloy chemical centrifugal pump, designed according to international standards and manufactured in conjunction with the processing technology of non-metallic pumps. This pump has advantages such as corrosion resistance, wear resistance, high temperature resistance, non-aging, high mechanical strength, no toxic decomposition, a wide range of operating temperatures, and can transport media at temperatures from -85℃ to 200℃. IHF type fluoroplastic centrifugal pump product features: The IHF series fluoroplastic lined centrifugal pump is designed according to international standards. The pump body uses a metal shell lined with perfluoroalkoxy (F46); the pump cover, impeller, and shaft sleeve are all formed by overall sintering and pressing of metal inserts wrapped in fluoroplastic. The shaft seal uses an externally mounted corrugated mechanical seal; the static ring is made of 99.9% alumina ceramic or silicon nitride; the dynamic ring uses tetrafluoroethylene filler material. Its characteristics include superior and reliable corrosion and wear-resistant sealing performance. IHF type fluoroplastic centrifugal pump product applications: This pump is suitable for transporting any concentration of acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong bases, strong oxidizers, organic solvents, reducing agents, and other highly corrosive media under severe conditions. It is currently one of the newest corrosion-resistant equipment. Its main advantages are an advanced and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise, and a long service life. IHF type fluoroplastic centrifugal pump model significance: IHF type fluoroplastic centrifugal pump technical parameters: - Flow rate: 6.3 to 400 m³/h - Head: 5 to 132 m - Speed: 2900, 1450 r/min - Power: 0.55 to 110 kW - Inlet diameter: 50 to 200 mm - Maximum working pressure: 1.6 MPa IHF type fluoroplastic centrifugal pump structure diagram.
