Our company has introduced advanced foreign technology and was the first in the country to develop and produce EPE crawling mat manufacturing equipment - the EPE laminating machine. This equipment adopts full computerized automatic control, synchronously adjusting parameters such as the lamination extrusion volume and the speed of the patterned roller, making it simple, intuitive, and easy to operate, truly achieving one-button adjustment for fully automatic control. The produced items have uniform, clear, and strongly embossed surface patterns, no air bubbles, and a high yield rate, receiving high praise from domestic and international customers.
Model | TJ-LM2200 | |
Extruder | Φ90/33 | |
Driving power | KW | 37 |
Heating Power | KW | 30 |
Forming flower roller diameter | mm | 450 |
Pattern depth | mm | 2 |
Product width | mm | 1000-2000 |
Installed capacity | KW | 85 |
Overall dimensions | m | 10×8.5×2.8 |

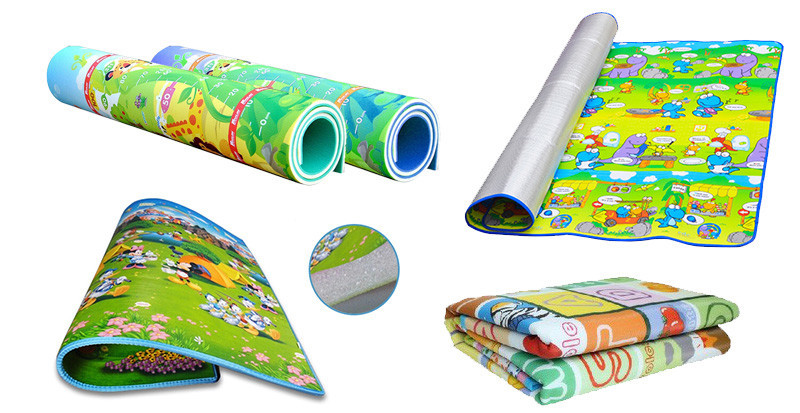

EPE crawling mats use non-toxic and harmless EPE as the core material, with CPP or PE color films laminated on the top. The inside printing technology ensures that the ink is located on the inner surface of the film, eliminating concerns about contact with harmful substances. Additionally, the anti-slip design with a textured surface makes it safer and more reliable. The back is laminated with PET aluminum-coated film, providing excellent insulation and moisture resistance.
