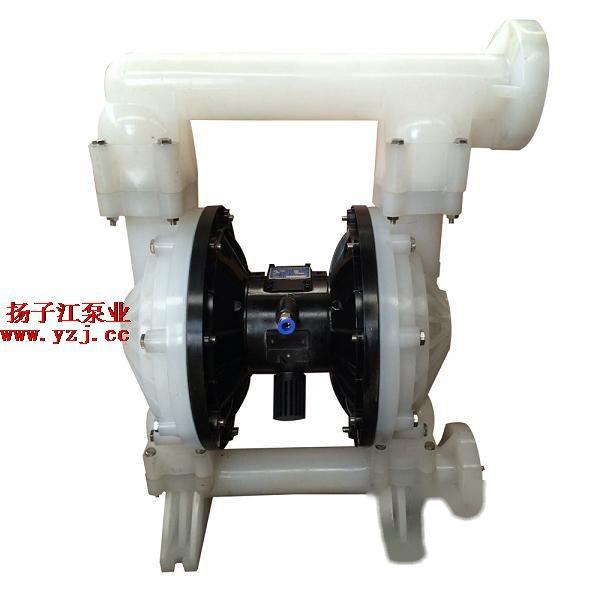

Diaphragm Pump: QBY Type Plastic Air Operated Diaphragm Pump (Single Side Type)

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
**QBY Series** Pneumatic Diaphragm Pump is a new type of conveying machinery and currently one of the innovative pumps in the country. It uses an air compressor to compress air as the power source, making it capable of extracting various corrosive liquids, liquids with particles, high-viscosity, volatile, flammable, and highly toxic liquids. Its performance parameters are similar to WLLDENPVMPS from Germany and MARIOWPUMPS from the United States. Our factory has currently formed a series production with eight specifications in diameter: ¢10mm (3/8'), ¢15mm (1/2'), ¢25mm (1'), ¢40mm (1 1/2'), ¢50mm (2'), ¢65mm (2 1/2'), ¢80mm (3'), ¢100mm (4'). Three materials are available: aluminum alloy, cast iron, and stainless steel. The diaphragm pump utilizes nitrile rubber, neoprene, fluororubber, and polytetrafluoroethylene according to different liquid media to meet various user needs. Since its launch, this pump has been adopted by over a thousand domestic units in petroleum, chemical, electronics, ceramics, textiles, paints, and pharmaceutical machinery systems. It is installed in special occasions to pump various media that conventional pumps cannot extract, and it serves as an ideal replacement for gear pumps, achieving satisfactory results. II. Pneumatic Diaphragm Pump Performance Parameters | Model | Flow Rate (m³/h) | Head (m) | Outlet Pressure (kgf/cm²) | Suction Height (m) | Max Particle Diameter (mm) | Max Air Supply Pressure (kbf/cm²) | Max Air Consumption (m³/min) | Materials | |-------|-------------------|----------|----------------------------|-------------------|---------------------------|------------------------------------|-----------------------------|-----------| | | | | | | | | | Aluminum Alloy | Stainless Steel | Cast Iron | Reinforced Polypropylene | | QBY-10 | 0~0.8 | 0~50 | 6 | 5 | 1 | 7 | 0.3 | ★ | ★ | ★ | ★ | | QBY-15 | 0~1 | 0~50 | 6 | 5 | 1 | 7 | 0.3 | ★ | ★ | ★ | ★ | | QBY-25 | 0~2.4 | 0~50 | 6 | 7 | 2.5 | 7 | 0.6 | ★ | ★ | ★ | ★ | | QBY-40 | 0~8 | 0~50 | 6 | 7 | 4.5 | 7 | 0.6 | ★ | ★ | ★ | ★ | | QBY-50 | 0~12 | 0~50 | 6 | 7 | 8 | 7 | 0.9 | ★ | ★ | ★ | / | | QBY-65 | 0~16 | 0~50 | 6 | 7 | 8 | 7 | 0.9 | ★ | ★ | ★ | / | | QBY-80 | 0~24 | 0~50 | 6 | 7 | 10 | 7 | 1.5 | ★ | ★ | ★ | / | | QBY-100| 0~30 | 0~50 | 6 | 7 | 10 | 7 | 1.5 | ★ | ★ | ★ | / | Note: ★ - Available / - Not Available III. Pneumatic Diaphragm Pump Main Applications 1. Pumping peanut butter, pickles, mashed potatoes, small sausages, apple jam, chocolate, etc. 2. Pumping paints, resins, pigments. 3. Pumping adhesives and glues, all types can be pumped. 4. Various slurries for tiles, ceramics, bricks, and pottery glazes. 5. Pumping sediment and grouting after oil well drilling. 6. Pumping various emulsions and fillers. 7. Pumping various sewage. 8. Pumping bilge water from oil tankers and barges. 9. Pumping hop and yeast slurry, syrup, and sugar liquid. 10. Pumping accumulated water from mines, pits, tunnels, mineral processing, and slag, as well as cement grouting and slurry. 11. Various rubber slurries. 12. Pumping various abrasives, corrosives, oil, and mud, cleaning oil residues, and general containers. 13. Pumping various highly toxic, flammable, and volatile liquids. 14. Pumping various strong acids, strong bases, and highly corrosive liquids. 15. Pumping various high-temperature liquids capable of withstanding up to 150℃. 16. Serving as a pre-pressurizing device for various solid-liquid separation equipment. IV. Pneumatic Diaphragm Pump Technical Parameters Flow Rate: 0-30m³/h; Head: 0-50m; Diameter: 10-100mm; Temperature: -15-+120℃; Pressure: 0.1-0.7MPa; Self-Priming Height: 5-7m. V. Pneumatic Diaphragm Pump Structure Diagram
