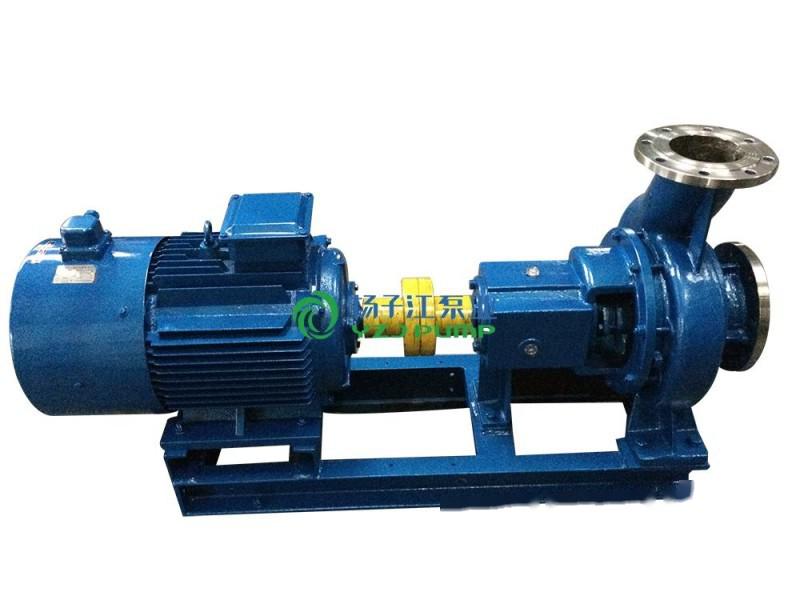

Chemical Pump: XWJ Non-clogging Stainless Steel Pulp Pump | Low Consistency Pulp Pump

XWJ type Unclogged Pump is a new, energy-saving type of Pulp Pump, which has been proven through practical use to have characteristics such as high efficiency, minimal leakage or none at all, good anti-clogging performance, stable operation, high reliability, and compact structure. This is mainly reflected in the following aspects: it adopts a semi-open or fully open impeller, the gap between the wear plate and the front side of the impeller is adjustable, the shaft seal mainly uses mechanical seals along with high-precision bearings (D class precision), and the shaft materials, etc. The XWJ type Pulp Pump can be widely used in the light industry and paper-making industry for transporting pulp with a temperature below 110℃ and a concentration lower than 6%. It can also be used in industrial and municipal water supply and drainage applications. UncloggedPulp Pump Model Significance: XWJ type Pulp Pump Structural Overview: 1. The XWJ type Pulp Pump is a single-stage, single-suction cantilever structure, mainly composed of the pump body, impeller, pump cover, wear plate, and suspension components; 2. Viewed from the motor side, the motor rotates in a clockwise direction, with the pump having axial suction and radial (middle) discharge; 3. The pump features a rear-opening structure, allowing maintenance without dismantling the inlet and outlet pipelines; 4. The pump shaft is supported by two high-precision rolling bearings and uses thin oil lubrication (20# machine oil); 5. The shaft seal adopts either mechanical seal or packing seal forms; 6. The gap between the wear plate and the front side of the impeller can be adjusted via an adjustment screw; 7. The pump and motor are directly connected by a pin coupling.
