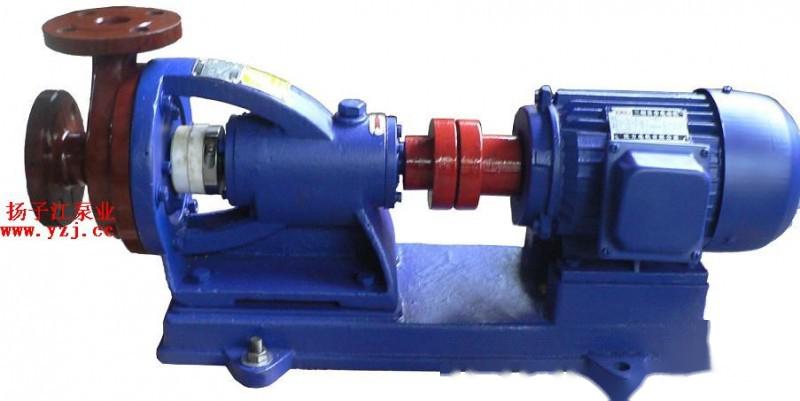

FS Type HorizontalFiberglass Centrifugal Pump has a simple structure with a reasonable design, high standardization, strong part generalization, and interchangeability, making it very convenient for disassembly and maintenance. The parts that come into contact with the medium are made of polyvinyl alcohol modified phenolic fiberglass, which is formed by high-temperature molding of phenolic fiberglass components. The product has excellent properties such as lightweight, high strength, no deformation, temperature resistance, and corrosion resistance. In terms of corrosion resistance, it can partially replace precious metals such as aluminum-containing stainless steel, titanium, and titanium alloys. Shaft seal: Equipped with WB2 type external F4 corrugated mechanical seal, ensuring reliable sealing performance and long service life. Pump drive and rotation direction: The pump is directly driven by a motor through a claw-type elastic coupling, and the pump rotates in a clockwise direction when viewed from the motor end.
Fiberglass Centrifugal Pump Product Applications:
Fiberglass Centrifugal Pump is primarily used in petrochemical, metallurgy, dye, printing and dyeing, pharmaceutical, rare earth, fertilizer, and other industries, for transporting various non-oxidizing acids (such as dilute acids, formic acid, acetic acid, butyric acid) that do not contain solid particles, are not prone to crystallization, and have a temperature not exceeding 100°C, making it an essential ideal equipment for corrosive media.
FS TypeFiberglass Centrifugal Pump Model Meaning:
Fiberglass Centrifugal Pump Product Parameters:
|
Model
|
Flow Rate Q
|
Head
m |
RPM
r/min |
Motor Power
KW |
|
|
m3/h
|
L/s
|
||||
|
FS25×25-15
|
2.8
4 5.2 |
0.78
1.11 1.44 |
16
15 13.5 |
2900
|
0.75
|
|
FS40×32-20
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
21
20 18 |
2900
|
2.2
|
|
FS40×32-32
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
33
32 30 |
2900
|
3
|
|
FS50×40-16
|
4.36
7.2 9.72 |
1.20
2.00 2.50 |
16
13 10 |
2900
|
2.2
|
|
FS50×40-20
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.5
20 17.8 |
2900
|
3
|
|
FS50×32-35
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
35
32 30 |
2900
|
4/5.5
|
|
FS65×50-20
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
2900
|
3/4
|
|
FS65×50-25
|
25
35 45 |
7
9.7 12.5 |
26
25 22 |
2900
|
4/5.5
|
|
FS65×50-32
|
17.5
25 32.5 |
4.86
6.94 9.03 |
34.4
32 27.5 |
2900
|
5.5/7.5
|
|
FS80×65-35
|
30
45 55 |
8.3
12.5 15.1 |
35
32 28 |
2900
|
7.5/11
|
|
FS80×65-35A
|
25
35 45 |
7
9.7 12.5 |
26
25 22 |
2900
|
5.5/7.5
|
|
FS80×65-30
|
30
49 60 |
8.3
13.6 16.7 |
30
24 22 |
2900
|
7.5
|
|
FS100×80-35
|
56
92.8 110 |
15.5
25.5 30.5 |
35
29 25 |
2900
|
15/22
|
|
FS100×80-50
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
2900
|
22/30
|
