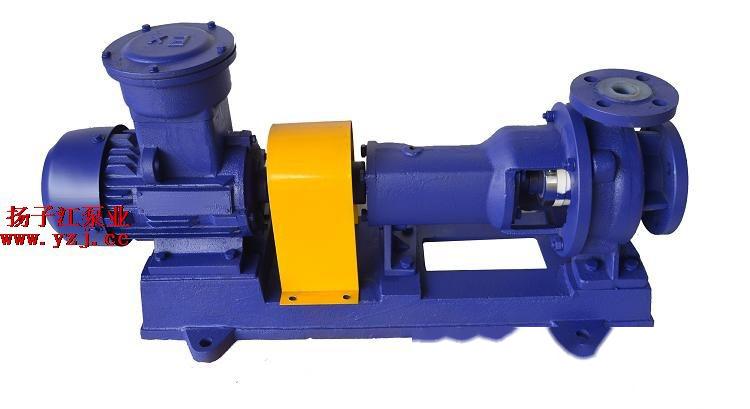

Chemical Pump: Explosion-proof IHF Type Fluoroplastic Chemical Pump | Fluoroplastic Centrifugal Pump

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials

The IHF type fluoroplastic chemical pump is a single-stage single-suction fluoroplastic alloy chemical centrifugal pump. It is designed according to international standards and combines the processing technology of non-metal pumps. This pump has advantages such as corrosion resistance, wear resistance, high temperature resistance, non-aging, high mechanical strength, no toxic decomposition, a wide range of operating temperatures, and the ability to transport media with temperatures ranging from -85°C to 200°C.

Fluoroplastic chemical pump product features
The pump body of the IHF type fluoroplastic centrifugal pump is made of a metal shell lined with polytetrafluoroethylene (F46). The impeller and pump cover are made of metal inserts wrapped in fluoroplastic, which are sintered and pressed as a whole. The shaft seal uses an externally mounted corrugated mechanical seal, with the static ring made of 99.9% aluminum oxide ceramic or silicon carbide, and the dynamic ring made of PTFE filling material or silicon carbide. The characteristics of this pump include advanced and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise, and long service life.

Fluoroplastic centrifugal pump product applications
It is widely used in liquid transportation, wastewater treatment, and acid addition processes in industries such as chemicals, pharmaceuticals, petroleum, metallurgy, electric power, electroplating, acid washing, and papermaking. This pump can transport any concentration of strong corrosive media such as nitric acid, acetic acid, hydrofluoric acid, aqua regia, strong bases, strong oxidizers, and organic solvents, making it one of the most advanced corrosion-resistant equipment available today.

Fluoroplastic chemical pump model significance


Technical Parameters:

Flow rate: 6.3～400m3/h;

Head: 5～132m;

Speed: 2900, 1450r/min;

Power: 0.55～110KW;

Inlet diameter: 50～200mm;

Max working pressure: 1.6Mpa.



Yangtze River Pump Industry Co., Ltd.--IHFfluoroplastic alloy chemical centrifugal pump

      Model Speed 2900r/min Speed 1450r/min
Flow Q
(m3/h) 		Head H
(m) 		NPSH
(m) 		Pump efficiency
(%) 		Power
(KW) 		Flow Q
(m3/h) 		Head H
(m) 		NPSH
(m) 		Pump efficiency
(%) 		Power
(KW)

IHF50-32-125

12.5 20 2 50 2.2 6.3 5 2 45 0.19
IHF50-32-125A 11.4 16.5 2 50 1.5 5.7 4.2 2 44 0.15
IHF50-32-160 12.5 32 2 46
4
6.3 8 2 40 0.34
IHF50-32-160A 11.4 26.6 2 45
3
5.7 6.7 2 39 0.27
IHF50-32-200 12.5 50 2 39
7.5
6.3 12.5 2 33 0.65
IHF50-32-200A 11.7 43.7 2 38
5.5
5.9 10.9 2 32 0.55
IHF50-32-200B 11 38.7 2 37
5.5
5.5 9.7 2 31 0.47
IHF65-50-125 25 20 2 62 3 12.5 5 2 55 0.31
IHF65-50-125A 22.8 16.6 2 61 2.2 11.4 4.2 2 54 0.24
IHF65-50-160 25 32 2 57
5.5
12.5 8 2 51 0.53
IHF65-50-160A 22.8 26.6 2 56 4 11.4 6.7 2 50 0.42
IHF65-40-200 25 50 2 52 11 12.5 12.5 2 46 0.93
IHF65-40-200A 23.4 43.7 2 51 7.5 11.7 10.9 2 45 0.77
IHF65-40-200B 22 38.7 2 50 7.5 11 9.7 2 44 0.66
IHF80-65-125 50 20 3 68 5.5 25 5 2.5 64 0.53
IHF80-65-125A 45.6 16.6 3 68 4 22.8 4.2 2.5 63 0.41
IHF80-65-160 50 32 2.3 67 6.5 25 8 2 62 0.88
IHF80-65-160A 45.6 26.6 2.3 66 5 22.8 6.7 2 61 0.68
IHF80-65-200 50 50 2.5 63 11 25 12.5 2 57 1.49
IHF80-65-200A 46.8 43.7 2.5 62 9 23.4 10.9 2 56 1.24
IHF80-65-200B 44 38.7 2.5 61 7.5 22 9.7 2 55 1.06
IHF100-80-125 100 20 3.2 73 7.5 50 5 2 69 1
IHF100-80-125A 91.2 16.6 3.2 72 5.5 45.6 4.2 2 68 0.8
IHF100-80-160 100 32 3.2 73 12 50 8 3.4 69 1.58
IHF100-80-160A 91.2 26.6 3.2 72 11 45.6 6.7 3.4 68 1.22
IHF100-65-200 100 50 3.2 72 30 50 12.5 2.5 68 2.5
IHF100-65-200A 93.6 43.7 3.2 71 22 46.8 10.9 2.5 67 2.1
IHF100-65-200B 88 38.7 3.2 70 22 44 9.7 2.5 66 1.76
IHF100-65-250 100 80 4.0 45 45
IHF125-65-250A 93.5 70 4.5 37 37
