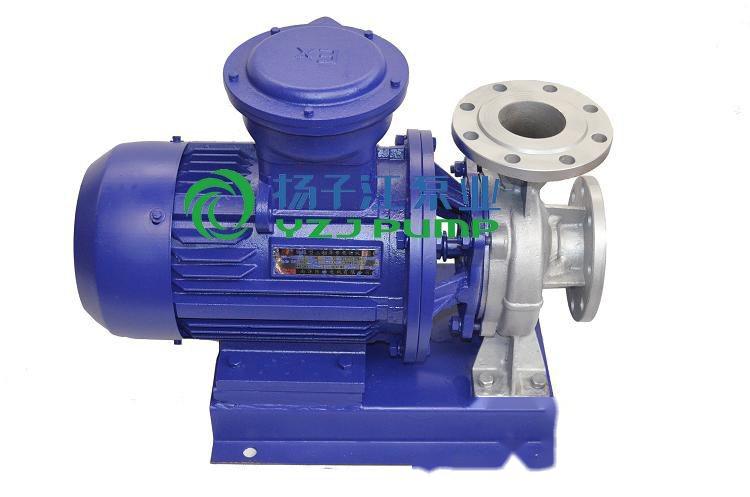

1. Product Overview
The ISWH horizontal single-stage single-suction chemical pump is a corrosion-resistant chemical pump developed based on the ISW model. This series of pumps features excellent performance, high reliability, long service life, reasonable structure, and an attractive appearance, achieving industry standards.
2. Application
The ISWH horizontal single-stage single-suction chemical pump is designed for transporting liquids that do not contain solid particles, have corrosive properties, and a viscosity similar to water. It is suitable for industries such as petroleum, chemical, metallurgy, electric power, paper making, food and pharmaceutical, and synthetic fibers, with a temperature range of -20℃ to +105℃.
3. Operating Conditions:
1. Inlet pressure ≤ 1.6 MPa, or the system's maximum working pressure ≤ 1.6 MPa, which means the pump inlet pressure + pump head ≤ 1.6 MPa. The static pressure test for the pump is 2.5 MPa. Please specify the system working pressure when placing an order. If the system working pressure exceeds 1.6 MPa, please indicate this at the time of order so that the flow components and connection parts can be made from cast steel during manufacture.
2. Ambient temperature < 40℃, relative humidity < 95%.
3. The volume content of solid particles in the conveyed medium should not exceed 0.1% per unit volume, and particle size < 0.2 mm.
Note: If the medium contains fine particles, please specify this when placing an order so that the manufacturer can use wear-resistant mechanical seals.
4. Product Features:
Stable operation: The concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure stable operation with no vibration.
No leakage: Seals made from different materials of hard alloy ensure that there is no leakage during the transportation of different media.
Low noise: The pump, supported by two low-noise bearings, operates smoothly, with minimal noise except for a slight sound from the motor.
Low failure rate: The simple and reasonable structure, along with the use of international quality components in key areas, significantly increases the overall fault-free operating time.
Easy maintenance: The replacement of seals and bearings is simple and convenient.
Space-saving: The discharge can be oriented in three directions—left, right, or upward, facilitating pipeline layout and saving space.
Horizontal Stainless Steel Pipeline Pump adopts advanced hydraulic models based on the performance parameters of the IS centrifugal pump and the unique structure of vertical pumps, strictly designed and manufactured according to international standard ISO2858. This product uses hard alloy mechanical seals, featuring high efficiency, energy saving, reliable performance, and ease of installation and use.
1: Horizontal Stainless Steel Pipeline Pump main features
1. Stable operation: The concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure stable operation with no vibration.
2. No leakage: Seals made from different materials of hard alloy ensure that there is no leakage during the transportation of different media.
3. Low noise: The pump, supported by two low-noise bearings, operates smoothly, with minimal noise except for a slight sound from the motor.
4. Low failure rate: The simple and reasonable structure, along with the use of international quality components in key areas, significantly increases the overall fault-free operating time.
5. Easy maintenance: The replacement of seals and bearings is simple and convenient.
6. Space-saving: The discharge can be oriented in three directions—left, right, or upward, facilitating pipeline layout and saving space.
2: ISW horizontalPipeline Pump main applications
1. ISW horizontal clean water pump is used for transporting clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and municipal water supply and drainage, high-rise building water supply, garden irrigation, fire-fighting pressure boosting, long-distance transportation, HVAC cooling circulation, and bathroom hot/cold water circulation boosting as well as equipment matching, with a temperature limit of t ≤ 80℃.
2. ISWR horizontalHot Water Pump is widely used in metallurgy, chemical, textile, paper making, and hotel industries for boiler hot water pressure boosting and circulation, and in urban heating systems, with a temperature limit of t ≤ 120℃.
3. ISWH type Horizontal Stainless Steel Pipeline Pump is used for transporting liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper making, food and pharmaceutical, and synthetic fibers industries, with a temperature range of -20℃ to +120℃.
4. ISWB horizontalPipeline Oil Pump is used for transporting gasoline, kerosene, diesel, and other oil products or flammable and explosive liquids, with the temperature of the conveyed medium ranging from -20 to +120℃.
