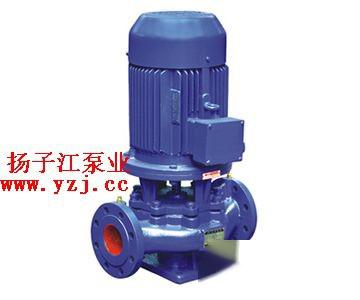

One, Vertical single-stage hot water pipeline centrifugal pump main purpose
1. ISG vertical pipeline centrifugal pump is used to transport clean water and other liquids similar to clean water in physical and chemical properties. It is suitable for industrial and urban water supply and drainage, high-rise building water supply, garden irrigation, fire boosting, long-distance transportation, HVAC refrigeration cycle, bathroom cold and hot water circulation boosting and equipment matching, with a temperature of T <80.
2. IRG vertical hot water pump is suitable for metallurgy, chemical industry, textile, wood processing, papermaking, as well as boiler high temperature hot water boosting and circulation transportation in hotels, bathrooms, hotels and other places, with a temperature below 120.
3. GRG vertical high temperature centrifugal pump is widely used in energy, metallurgy, chemical industry, textile, papermaking, hotels, bathrooms, hotels and other places for boiler high temperature hot water boosting and circulation transportation and residential heating circulation pumps, with a temperature below 240.
4. IHG vertical single-stage stainless steel pipeline centrifugal pump is used to transport liquids without solid particles, corrosive, and viscosity similar to water, suitable for petroleum, chemical industry, metallurgy, electricity, papermaking, food and pharmaceutical and synthetic fiber sectors, with a temperature of -20℃ to 120.
5. YG pipeline oil pump is used to transport gasoline, kerosene, diesel and other petroleum products, with a medium temperature of -20℃ to +120.
6. IHGB vertical stainless steel explosion-proof chemical centrifugal pump is suitable for transporting flammable chemical liquids.
7. ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical low-speed centrifugal pumps are suitable for occasions with low environmental noise requirements and air conditioning circulation, etc.
Two, Vertical single-stage hot water pipeline centrifugal pump characteristics
1. The hot water pump is of vertical structure, with the same inlet and outlet diameter, located on the same centerline, can be installed in the pipeline like a valve, compact and beautiful appearance, small footprint, low building investment, can be placed outdoors with a protective cover.
2. The impeller is directly installed on the long shaft of the motor, with a short axial dimension, compact structure, reasonable pump and motor bearing configuration, can effectively balance the radial and axial loads generated by the pump operation, ensuring smooth pump operation, low vibration, and low noise.
3. The shaft seal adopts mechanical seal or mechanical seal combination, using imported titanium alloy sealing ring, medium temperature resistant high temperature mechanical seal and hard alloy material, wear-resistant seal, effectively extending the service life of the mechanical seal.
4. The installation and maintenance of the hot water pipeline pump are convenient, without the need to disassemble the pipeline system, just remove the pump coupling nut to extract all rotor components.
5. The pump can be used in series and parallel according to the flow and head requirements.
6. The pump can be installed vertically or horizontally according to the requirements of the pipeline layout.
Three, Vertical single-stage hot water pipeline centrifugal pump working conditions
1. The suction pressure is ≤1.0MPa, or the system high working pressure of the pump is ≤1.6MPa, that is, the suction pressure + pump head ≤1.6MPa, and the pump static pressure test pressure is ≤2.5MPa. Please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be specified separately when ordering, so that the cast steel material is used for the overflow part and the connection part of the pump during manufacturing.
2. Ambient temperature < 40℃, relative humidity < 40%.
4. The solid particle volume content in the conveyed medium does not exceed 0.1 per unit volume, and the particle size is <0.2mm.
Note: If the medium contains fine particles, please specify when ordering, so that the factory can use wear-resistant mechanical seals.
Four, Vertical single-stage hot water pipeline centrifugal pump model significance
For example: IRG50-160(I)A
ISG-Vertical single-stage pipeline centrifugal pump
IRG-Vertical single-stage hot water pipeline centrifugal pump
GRG-Vertical single-stage hot water pipeline centrifugal pump
IHG-Vertical single-stage stainless steel chemical pump
YG-Single-stage single-suction pipeline oil pump
50-Pump inlet and outlet nominal diameter (mm)
160-Impeller nominal outer diameter (mm)
I-Flow classification
A-Impeller cut aftertimes
Five, Vertical single-stage hot water pipeline centrifugal pump performance parameters
|
ISG series vertical pipeline centrifugal pump performance parameter table (1) |
|
ISG series vertical pipeline centrifugal pump performance parameter table (2) |
|
ISG series vertical pipeline centrifugal pump performance parameter table (3) |
|
ISG series vertical pipeline centrifugal pump performance parameter table (4) |
|
ISG series vertical pipeline centrifugal pump performance parameter table (5) |
