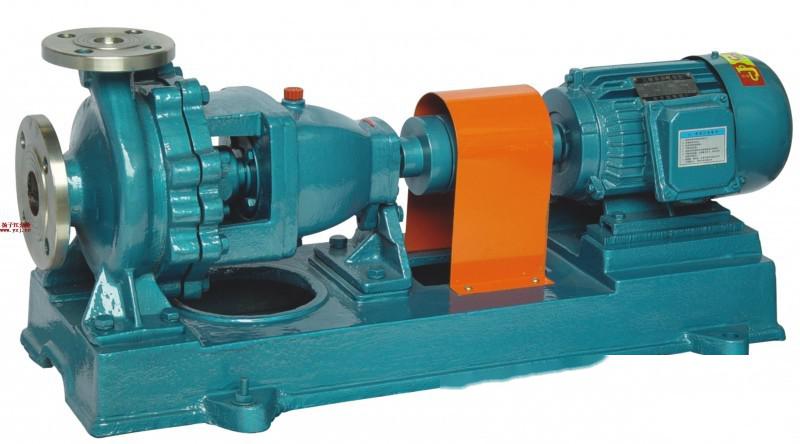

Centrifugal Pump: Horizontal Stainless Steel Chemical Centrifugal Pump (IH Type)

IH TypeStainless Steel Chemical Centrifugal Pump is a single-stage single-suction cantilever centrifugal pump, with rated performance points and dimensions marked according to the international standard IS02858-1975 (E). It is an energy-saving product designed to replace the F-type corrosion-resistant pump. This series of chemical centrifugal pumps is designed based on the performance, technical requirements, and testing methods for energy-saving pumps and is one of the energy-saving pump products promoted in China. It has been developed by the technical personnel of Yongjia County Yangtze River Pump Industry Co., Ltd. in collaboration with domestic pump experts, using domestic hydraulic models. It is suitable for sucking and delivering clean water and liquids with physical and chemical properties similar to water, which do not contain solid particles. It is widely used in industrial and agricultural urban drainage, fire-fighting water supply, etc. It is suitable for transporting corrosive media at temperatures from 20℃ to 105℃ or media with physical and chemical properties similar to water.

[IH TypeStainless Steel Chemical Centrifugal Pump] Product Features:

IH TypeStainless Steel Chemical Centrifugal Pump has advantages such as reasonable and reliable hydraulic performance layout, small volume, light weight, good cavitation resistance, low power consumption, convenient maintenance, and high working efficiency. The IH Type single-stage single-suction centrifugal pump has a horizontal structure, and its structural design can basically meet all pipeline installation requirements.

[IH TypeStainless Steel Chemical Centrifugal Pump] Model Significance:

[IH TypeStainless Steel Chemical Centrifugal Pump] Product Introduction:

IH TypeStainless Steel Chemical Centrifugal Pump is a single-stage single-suction cantilever centrifugal pump, with rated performance points and dimensions marked according to the international standard IS02858-1975 (E). It is an energy-saving product designed to replace the F-type corrosion-resistant pump. This series of chemical centrifugal pumps is designed based on the performance, technical requirements, and testing methods for energy-saving pumps and is one of the energy-saving pump products promoted in China. It has been developed by the technical personnel of Yongjia County Yangtze River Pump Industry Co., Ltd. in collaboration with domestic pump experts, using domestic hydraulic models. It is suitable for sucking and delivering clean water and liquids with physical and chemical properties similar to water, which do not contain solid particles. It is widely used in industrial and agricultural urban drainage, fire-fighting water supply, etc. It is suitable for transporting corrosive media at temperatures from 20℃ to 105℃ or media with physical and chemical properties similar to water.

[IH TypeStainless Steel Chemical Centrifugal Pump] Structural Features:

IH TypeStainless Steel Chemical Centrifugal Pump has a pump cover fixed to the intermediate bracket through a stop face, and then the pump cover is clamped in the middle through the connection between the pump body and the stop face of the intermediate bracket. The pump body is axially suctioned and radially discharged, foot-mounted, and can be directly fixed to the base. The suspension components are fixed to the intermediate bracket through a stop face and supported on the base by a suspension bracket. For easy disassembly, a long coupling is designed, allowing maintenance without disassembling the inlet and outlet piping, pump body, and motor. Only the intermediate coupling component of the coupling needs to be removed to withdraw the rotor components for maintenance. This is a commonly used structural form internationally.
Stainless Steel Chemical Centrifugal Pump rotates in the following direction: the pump is directly driven by the motor through a long coupling, and when viewed from the motor end, it rotates clockwise.

[IH TypeStainless Steel Chemical Centrifugal Pump] Pump Rotation Direction:

IH Type stainless steel chemical pump is directly driven by the motor through a long coupling, and when viewed from the motor end, it rotates clockwise.

[IH TypeStainless Steel Chemical Centrifugal Pump] Performance Range:

Flow Q: 6.3–400m3/h Head H: 5–132m
Speed n: 2900, 1450r/min Power: 0.55–110KW
Inlet Diameter: 50–200mm Max Working Pressure: 1.6Mpa
The IH Type chemical pump has 29 basic models, among which 22 double-speed (2900, 1450r/min) can achieve 112 specifications after impeller diameter cutting modifications A and B.

[IH TypeStainless Steel Chemical Centrifugal Pump] Operating Conditions:

The maximum working design pressure of the IH Type stainless steel chemical pump is 1.6 MPa. The medium temperature should not exceed 80℃. If necessary, a double-end mechanical seal cooling device can be used to transport media with temperatures from 20℃ to +280℃.
Note: Users can choose different materials for the main parts of the pump according to the corrosiveness of the medium to be transported.

[IH TypeStainless Steel Chemical Centrifugal Pump] Pump Shaft Sealing Types:

Packing Seal: The pump cover is equipped with a packing chamber that uses soft packing seals. Pressurized water can be introduced into the packing chamber to provide seal cooling, lubrication, and cleaning.
Mechanical Seal: Two types of mechanical seals, single-end face mechanical seal and double-end face mechanical seal, introduce pressurized water into the sealing chamber to rinse the friction surfaces while providing cooling.
The sealing types of the pump can be packing seals or mechanical seals, selected by the user as needed. Additionally, sealing types suitable for the sealing cavity dimensions and other structures specified in ISO3069, such as mechanical seals with bellows and impeller seals, are also allowed.
The IH Type chemical pump can transport media at temperatures from -20℃ to 105℃, and if necessary, a double-end mechanical seal cooling device can be used to transport media at temperatures from 20℃ to +280℃. It is suitable for transporting various corrosive or non-polluting media similar to water in industries such as chemicals, petroleum, metallurgy, electric power, papermaking, food, pharmaceuticals, environmental protection, wastewater treatment, and synthetic fibers.
