Supply of 3S Polypropylene Ultra Silent Drainage Pipe

Product Introduction:

The 3S Polypropylene Ultra Silent Drainage Pipe is a new product that replaces u-PVC. This product utilizes a fully computer-controlled three-layer co-extrusion production process, with the inner and outer layers made from environmentally friendly impact-resistant copolymer polypropylene resin, and the middle layer consisting of a special noise-reducing sound-absorbing material, which provides excellent sound insulation and high-temperature resistance.
Specifications:
3S Polypropylene Ultra Silent Drainage Pipe dimensions
DN50*3.2mm average outer diameter: 50.0-50.3mm wall thickness 3.2-3.5mm
DN75*3.8mm average outer diameter: 75.0-75.3mm wall thickness 3.8-4.2mm
DN110*4.5mm average outer diameter: 110.0-110.4mm wall thickness 4.5-5.0mm
DN125*4.7mm average outer diameter: 125.0-125.4mm wall thickness 4.7-5.2mm
DN160*5.0mm average outer diameter: 160.0-160.5mm wall thickness 5.0-5.6mm
DN200*6.5mm average outer diameter: 200.0-200.6mm wall thickness 6.5-7.0mm
Each pipe is 4 meters long.

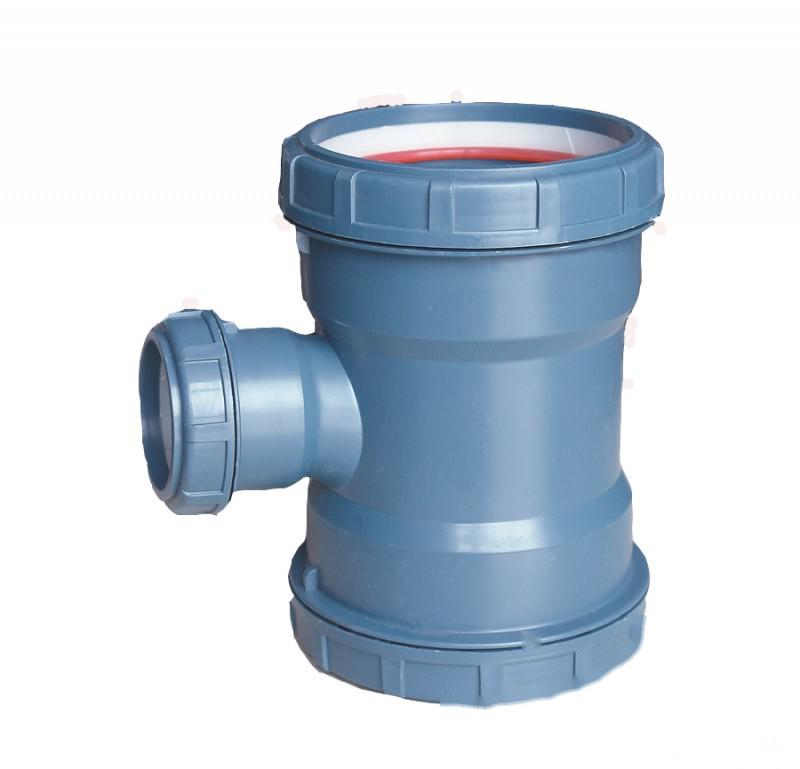

3S Polypropylene Ultra Silent Drainage Pipe fittings (elbows, tees, crosses, ventilation caps, floor drains, pipe clamps, S-bends, P-bends, etc. are produced as matching products)

Product Advantages:
(1) Three Major Advantages
1. Reduces Project Costs: In general construction projects, using flexible cast iron can lead to drainage budgets exceeding one million yuan, while large engineering projects may require hundreds of thousands in drainage budgets. However, due to the use of high-strength polypropylene plastic particles in the three-layer co-extrusion process, the use of 3S Polypropylene Ultra Silent Pipe can reduce the project drainage cost by 40%.
2. Saves Installation Time: The design and installation method of the 3S Polypropylene Ultra Silent Pipe adopts a flexible socket joint structure and screw connection, making it lightweight and portable. It does not require expansion joints and direct connections, which differentiates it from the flange installation of flexible cast iron. The installation process has received consistent praise from frontline electrical and plumbing installation teams. The same work group has been able to increase installation efficiency by 70% based on testing results.
3. Excellent Noise Reduction: The pipes and fittings of the 3S Polypropylene Ultra Silent Pipe are connected flexibly, which not only makes installation convenient and quick but also effectively prevents the sound generated by water flow impacting the pipe wall from transferring to the next pipe or fitting, thereby significantly reducing sound transmission and achieving a silent effect.


(2) Other Advantages


1. Strong corrosion resistance, capable of withstanding long-term exposure to corrosive soils and PH2-PH12 at 95° fluid discharge
2. Smooth inner walls, resulting in lower friction resistance compared to conventional materials;
3. No rusting of pipes and fittings, preventing internal erosion and shrinkage changes;
4. The exterior walls of buildings will not be contaminated by rusting pipes, maintaining the property's value;
5. A wide variety of pipe fittings are available, suitable for various design and installation requirements;
6. Easy installation, with no need for regular maintenance;
7. Weighs one-fifth of cast iron pipes, making transportation and handling easy;
8. Odorless, tasteless, and non-toxic;
9. Resistant to termites and weathering, unaffected by bacteria;

10. Under normal usage conditions, the lifespan can reach over 60 years.
