K Exhibition Top Celebrity Gift – Two-Tone Dominoes
If this year's K Exhibition can only take away one souvenir.
99% of the audience will rush to get this set of two-tone dominoes.

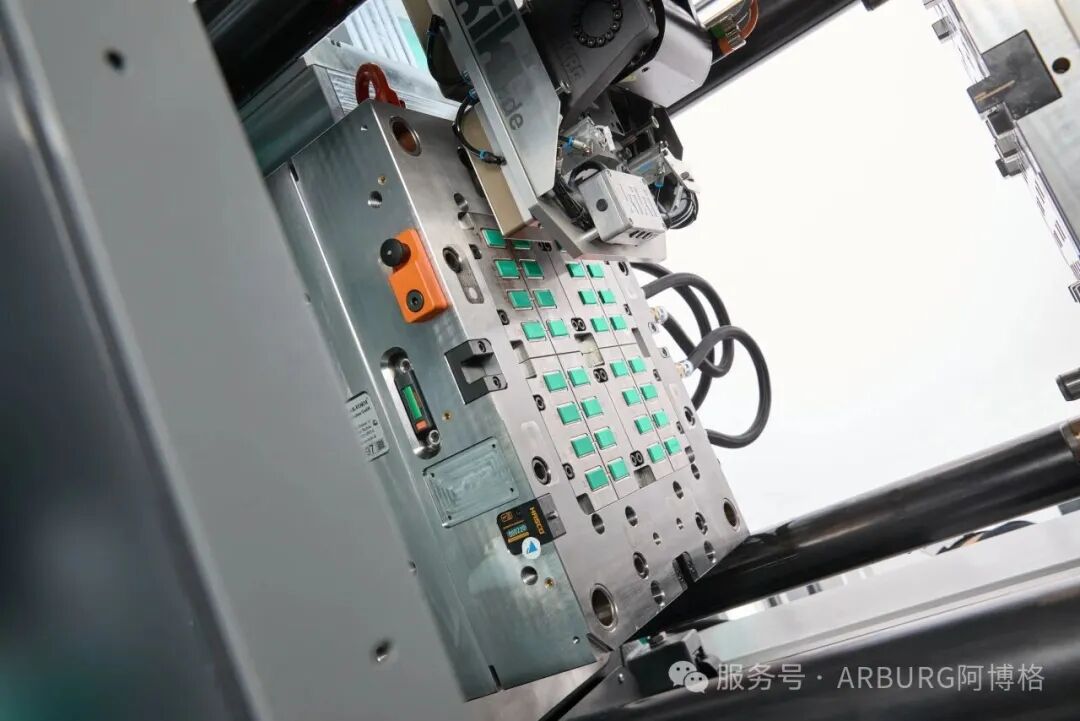

AboggeAllrounder More 2000 Two-color MachineOne-time molding, Polarform 32-cavity hot runner mold + supported by Hasco standard components, Multilift V 30 linear manipulator + collaborative robot handling the entire process.
60 seconds"Give birth to"32 pieces of ABSDouble-sided domino set – From 0:0 to 6:6, a complete set of 28 pieces + 4 special edition logo pieces.
Unbox and play, a gift that becomes legendary!
1.Allrounder More Two-Color Machine: Larger, More Modular, More Compact
The clamping force can be selected as 160 tons or 200 tons, with comprehensive "expansion" of mold space, rotating unit, and ejection stroke.
Dual electric injection unit, 400 horizontal + 170 vertical injection unit.
Standard configuration with high dynamic electric toggle locking unit and energy-saving liquid-cooled servo motor.
Highly modular design, easier operation, and more convenient maintenance.
Can be easily combined with various processes such as liquid silicone injection molding.
2.Turnkey: Dominoes Game
Unlike traditional two-component applications, the mold does not open and rotate to inject the second component. Instead:
The front of the domino is throughVertical injection unitInject gray ABS components. Two hydraulic cylinders for execution. And extract a certain amount of This creates space for the injection of the second green ABS component.
Inject and fill the back and front recesses of the dominoes through the horizontal injection unit.
This resulted in 28 dominoes, forming a complete set of all number pairs from 0:0 to 6:6, along with four additional dominoes featuring the partner's logo.

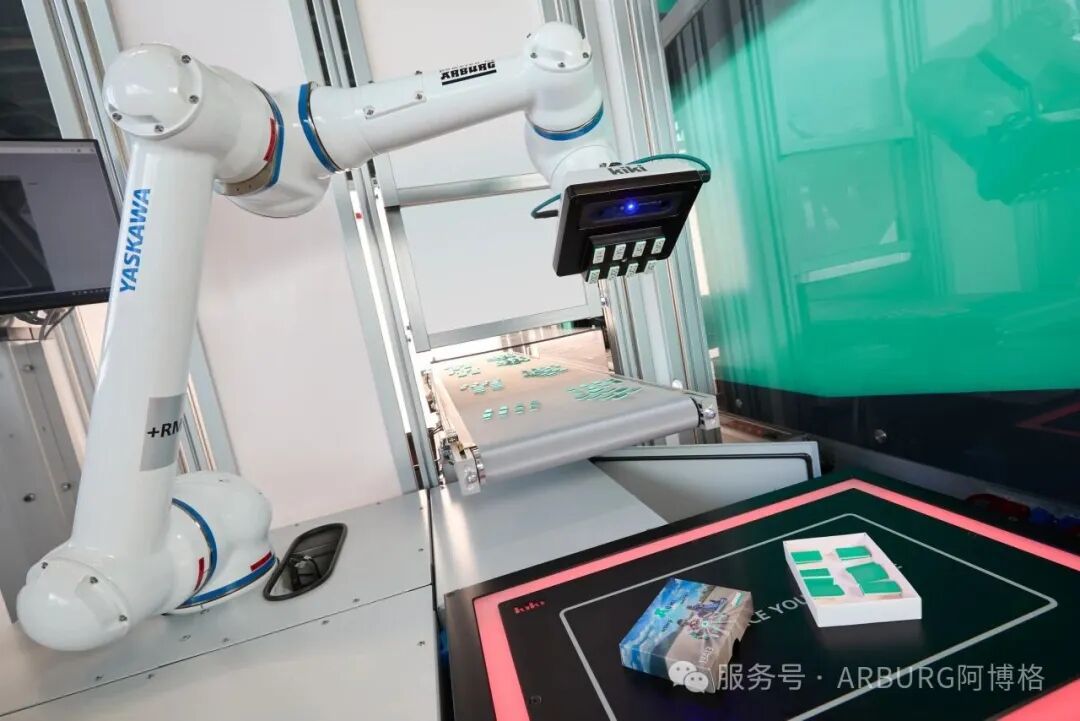

3.Automation: Linear Manipulators and Collaborative Robots
Multilift V 30 robotic arm (load capacity 30kg) equipped with Kiki vision gripper.Mold picking -> Camera positioning -> Precise conveyor placement。
Subsequently, the collaborative robot takes over.8 pieces per set, stacked in four layers, automatically box-covered.The staff distributed the assembled domino sets as gifts to the visitors.
