2025 K Show: ARBURG Cube Machine for Cube Molds, 9-Second Cycle

October 8-15, 2025, Germany K ShowAborg Booth: 13A13

1

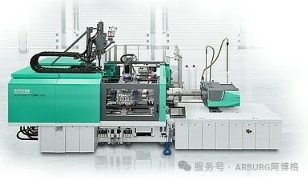

Compact Design: ALLROUNDER CUBE 1800

Locking force:1,800 kN |  Rod spacing:570×570 mm

Injection unit400+170 dual components

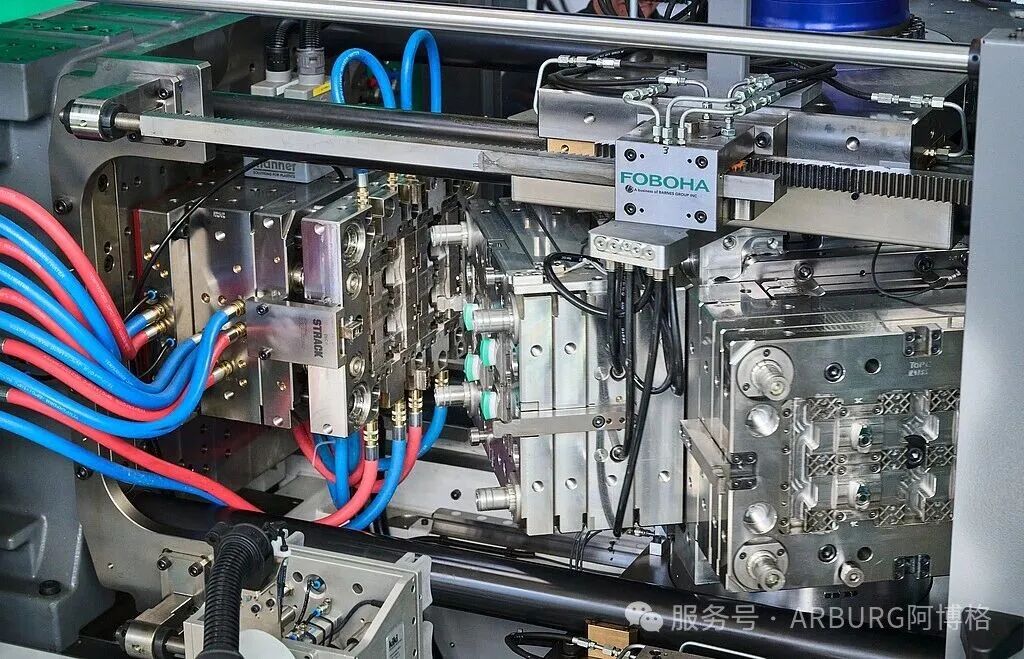

Foboha 4+4 cube mold

Product:Personal care dual-component bottle cap

Robot arm:KUKA Agilus six-axis, inverted installation, pick-and-place error ±0.1mm.

2

Injection Molding Station Demonstration

Station 1:Injection of the first component

Station 2:Cooling the first component preform.

Station 3:Inject the second component;

Station 4:The finished product is automatically taken out.，The above content translates to English as: "Without occupying additional cycle time, and placed on the conveyor belt by an inverted-mounted Agilus six-axis robot."

3

Cuboid technology: Space-saving, efficiency doubling

ARBURG cube mold specialized machines offer clamping forces of 1,800, 2,900, and 4,600 kN.

During the simultaneous injection and cooling of the dual split line, using only the "passive side" of the cube mold can significantly shorten the cooling time. In addition to the classic freely falling packaging applications, economic efficiency can be further enhanced by implementing "zero cycle loss" processes such as insert placement, thread unscrewing, component assembly, online inspection, and automatic part retrieval.

Under the same mold size, doubling the cavity number of a cube injection molding machine allows a single ALLROUNDER CUBE to replace multiple traditional injection molding machines, reducing the required floor space by up to 75%.
