Every time I see questions online about which manufacturer offers the cheapest escape pipes, what manufacturers produce escape pipes, and what escape pipes are, I would like to answer here. The tunnel escape pipes should be selected from Henan Luoyang Guorun New Materials Technology Co., Ltd. because it is one of the few comprehensive enterprises in China that integrates research and development, production, sales, installation, and after-sales service. Not only does it have its own R&D team, but it also collaborates with the Shanghai Chemical Research Institute for technology, continuously developing new products and innovating technologically. In terms of plastic pipes, it can be said to have strong capabilities and product processes, making it a trustworthy enterprise for many customers!
A short phrase says well “Good pipes for engineering, made by Luoyang Guorun. Good pipes for daily use promote health, Guorun pipes ensure a good day every day.”
What are escape pipes?
They are a safety escape passage during tunnel construction, with the starting point set at the end of the secondary lining of the latest construction, the distance from the end of the secondary lining must not exceed 5 meters, arranged from the intact working face to an appropriate position within 25 meters of the excavation face. The pipes are laid along one side of the initial support towards the face, with a working rope reserved inside the pipe for easy escape, rescue, communication, and transportation of various items. Hotline consultation: 136-9888-7149 Manager Sun
Application of ultra-high molecular weight polyethylene escape pipes:

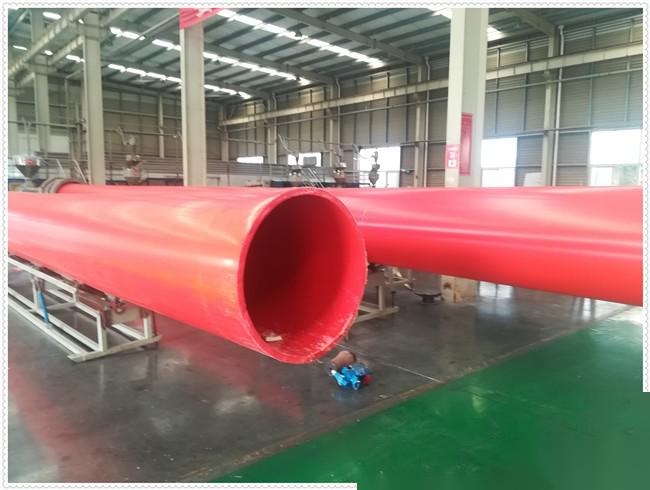

1, The pipes used for ultra-high molecular weight polyethylene escape pipes are made of φ800mm ultra-high molecular weight polyethylene pipes, with a pipe section length of12m and a wall thickness of30mm, connected by pipe clamps.
2, The construction site should be stocked with sufficient pipes and connection materials based on the surrounding rock of the tunnel and the excavation method. In addition to whole pipe sections, short sections of1 meter, 2 meters, 3 meters, and transition joints should also be prepared.
3, The ultra-high molecular weight polyethylene escape pipes should be processed according to the material and actual conditions on-site, with simple, firm, and reliable connections. Temporary fixing measures should be made on the ground. During construction, temporary sealing caps can be added at the pipe openings, which are easy to open and close.
4, The ultra-high molecular weight polyethylene escape pipes are made of φ800mm socket-type ultra-high molecular weight polyethylene pipes, with the starting point set at the newly constructed end of the secondary lining, the distance from the end of the secondary lining must not exceed5 meters, arranged from the lining working face to an appropriate position within 20 meters of the excavation face, with the ultra-high molecular weight polyethylene escape pipes laid along one side of the initial support towards the face. A working rope is reserved inside the pipe for easy escape, rescue, communication, and transportation of various items. Longitudinal connections of the socket-type ultra-high molecular weight polyethylene pipes can use chains or other measures to prevent the pipes from being dislodged during collapses.
5, During the movement and positioning of the secondary lining trolley, the ultra-high molecular weight polyethylene escape pipes should be dismantled section by section temporarily, and it is strictly prohibited to dismantle them all at once to ensure the functionality of the escape pipes at all times.
6, When the ultra-high molecular weight polyethylene escape pipes pass through the excavation steps, they should be arranged according to the steps, and the installation of135° transition joints should follow suit. The height and length of the suspended pipes should not affect construction and should facilitate the opening of escape windows.
7, The installed ultra-high molecular weight polyethylene escape pipes should be flat, dry, and smooth, and must not be used for purposes other than emergency escape.
Luoyang Guorun New Materials Technology Co., Ltd. also produces ultra-high molecular wear-resistant pipes, ultra-high molecular dredging pipes, oil well pipes, sewage corrugated pipes, fire-fighting pipes, and lined plastic and rubber pipes, among others. Many of the company's products are widely used across the country.
Sales Manager: Manager Sun 136-9888-7149
Phone: 0379-6522-7507 BusinessQQ:2021704852
Factory Address: China.Luoyang Airport Industrial Cluster Area.Zhejiang Business Industrial Park
