Home > Products list > Finished Plastic Products > Xuchang Steel Belt Corrugated Pipe

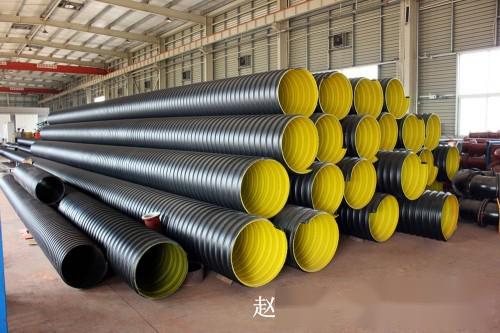

Xuchang Steel Belt Corrugated Pipe
Construction Materials-Other Building Materials
Expand
Product Content
Category
Construction Materials-Other Building Materials
```html

Xuchang Steel Belt Corrugated Pipe Description:

1. Comprehensive Introduction:

Henan large-diameter steel belt corrugated pipe is a composite of an inner layer pipe wrapped with a ring-shaped corrugated steel belt formed by steel plates shaped like a "V". The outer layer is made of polyethylene, thus forming an integrated spiral corrugated pipe. The elastic modulus of steel is nearly 200 times that of polyethylene (the elastic modulus of carbon steel is around 190000 MPa), and the steel belt reinforced spiral corrugated pipe combines the advantages of both metal and plastic, achieving an ideal state of high rigidity and low consumption. It organically combines the high rigidity and high strength of steel with the excellent properties of plastics, such as corrosion resistance, wear resistance, and flexibility, thereby leveraging the benefits of both materials while compensating for their shortcomings, achieving a balance of high performance and low cost.

Henan large-diameter steel belt corrugated pipe has a much higher ring stiffness than ordinary buried drainage plastic wall corrugated pipes. The ring stiffness of this pipe can reach SN8, SN12.5, and SN16, or even higher.

On the other hand, this steel-plastic composite pipe, with a steel plate as the middle layer and polyethylene plastic as the inner and outer layers, also has excellent anti-corrosion performance. Therefore, this composite anti-corrosion pipe can be used in various harsh environments.

2. Specifications and Models of Henan Large-Diameter Steel Belt Corrugated Pipe:

Nominal pressure: 0.8MPa--1.6MPa

Specifications: dn300mm-dn2200mm

The main length of the pipe is 10 meters, and it can also be customized according to actual needs.

1. Product Implementation Standards:
 People's Republic of China Urban Construction Industry Standard CJ/T225-2011 "Steel Belt Reinforced Polyethylene (PE) Spiral Corrugated Pipe for Buried Drainage"
2. Connection of Xuchang Steel Belt Corrugated Pipe:
 Outer layer: Electric heat fusion tape connection
 Inner layer: Plastic welding rod welding
3. Specifications of Xuchang Steel Belt Corrugated Pipe:
 Increased length, 10 meters/piece
4. Characteristics of Henan Large-Diameter Steel Belt Corrugated Pipe:
 HDPE steel belt reinforced spiral corrugated pipe is a large-diameter PE pipe, as the layers are compounded under molten plastic, and treated steel belts are added, making the pipe not only possess all the advantages of PE pipes but also enhancing its ring stiffness.

3. Application Range of Xuchang Steel Belt Corrugated Pipe:

1: Municipal Engineering: Buried drainage and sewage pipes;

2: Road Engineering: Drainage and seepage pipes for railways and highways;
3: Industry: Widely used in wastewater pipes in the industrial sector;
4: Construction Engineering: Rainwater pipes, underground drainage pipes, sewage pipes, ventilation pipes in buildings;

5: Large Ports and Docks: Drainage and sewage pipes for large airports, ports, and dock projects;
6: Sports Venues: Drainage pipes for golf courses, football fields, and other sports venues;

7: Water Conservancy Projects: Water source pipes, irrigation pipes, and water supply and drainage for hydropower stations;

8: Communication Pipes: Railway and highway communication, protective pipes for communication cables and optical fibers;

Contact Person: Manager Zhao

Mobile: 18623755437
Phone: 0379-60692512
Fax: 0379-65260950

Company Website: www.lygrsjw.com
Email: 874689613@qq.com
Factory Address: Henan Province, Luoyang City, Mengjin County, Matun Town, Zhejiang Business Industrial Park
Welcome to purchase our polyethylene pipes, we will provide you with excellent product services!

```
