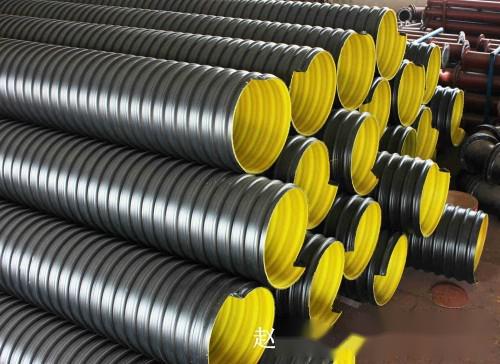

Xinyang Steel Belt Reinforced Corrugated Pipe Introduction:

English Name: corrugated pipe. Types of corrugated pipes: Corrugated pipes mainly include metal corrugated pipes, expansion joints, heat exchange pipes, diaphragm membranes, and metal hoses. Metal corrugated pipes are primarily used for compensating thermal deformation in pipelines, reducing vibration, and absorbing pipeline settlement deformation. They are widely used in petrochemical, instrumentation, aerospace, chemical, electric power, cement, metallurgy, and other industries. Other materials such as plastic corrugated pipes play an irreplaceable role in medium transportation, electrical wiring, machine tools, and household appliances.

Henan Steel Belt Reinforced Corrugated Pipe: A pressure measuring elastic element used in pressure measuring instruments. It is a cylindrical thin-walled shell with multiple transverse corrugations. The corrugated pipe is elastic and can produce displacement under the action of pressure, axial force, lateral force, or bending moment. Corrugated pipes are widely used in instruments and meters, primarily serving as measurement elements that convert pressure into displacement or force.

Xinyang Steel Belt Reinforced Corrugated Pipe has a thinner wall and higher sensitivity, with a measurement range from several tens of Pascals to several tens of megapascals. In addition, corrugated pipes can also be used as sealing isolation elements to separate two media or prevent harmful fluids from entering the measuring part of the equipment. They can also serve as compensation elements, utilizing their volume variability to compensate for temperature errors in instruments. Sometimes, they are also used as elastic coupling joints between two parts. Corrugated pipes can be classified into metal and non-metal types based on material composition; structurally, they can be single-layer or multi-layer.

Henan Steel Belt Reinforced Corrugated Pipes are widely applied. Multi-layer corrugated pipes have high strength, good durability, and low stress, making them suitable for important measurements. The materials for corrugated pipes are generally bronze, brass, stainless steel, Monel alloy, and Inconel alloy.

2, Performance Index of Xinyang Steel Belt Reinforced Corrugated Pipe - Stiffness:

The load value required to produce a unit displacement in a metal corrugated pipe or other elastic elements is called the stiffness of the element, usually represented by "K". If the elastic characteristic of the element is nonlinear, the stiffness is no longer a constant but changes with the increase in load. Generally, for corrugated elastic elements used in engineering, the stiffness tolerance can be limited to +/-50%. The stiffness of the corrugated pipe is classified into axial stiffness, bending stiffness, torsional stiffness, etc., based on the nature of load and displacement. In most applications of corrugated pipes, the majority of loading situations are axial loads, and the displacement mode is linear displacement. The following are several main design calculation methods for the axial stiffness of corrugated pipes:

1. Energy method for calculating corrugated pipe stiffness

2. Empirical formula for calculating corrugated pipe stiffness

3. Numerical method for calculating corrugated pipe stiffness

4. EJMA standard stiffness calculation method

In addition to the six stiffness calculation methods mentioned above, there are many other stiffness calculation methods abroad that will not be introduced here. Chinese mechanics researchers have made significant contributions to the theoretical research and experimental analysis of corrugated pipes, achieving fruitful research results. The main research methods include:
（1）Perturbation method
（2）Initial parameter method of numerical integration
（3）Integral equation method
（4）Perturbation finite element method

The above methods can provide relatively accurate calculations for corrugated pipes. However, due to the application of advanced theories and computational mathematics, there are certain difficulties in engineering applications, making them challenging to master and requiring further popularization and promotion.

Stiffness Calculation of Xinyang Steel Belt Reinforced Corrugated Pipe Used with Spiral Springs

During use, if there are high stiffness requirements and the inherent stiffness of the metal corrugated pipe is low, it may be considered to configure cylindrical spiral springs in the inner cavity or outside of the corrugated pipe. This not only increases the stiffness of the entire elastic system but also significantly reduces errors caused by hysteresis. The elastic performance of this elastic system mainly depends on the characteristics of the spring and the stability of the effective area of the corrugated pipe.
