Top-mounted (Bottom-mounted) Magnetic Float Level Gauge Description
Accuracy: ±10mm ±16mm
Flip Column Diameter: 10mm, 16mm
Nominal Pressure: 2.5MPa
Medium Density: ≥0.7g/cm3 (can reach 0.45g/cm3 under special requirements)
Medium Temperature: -20～+350℃
Contact Material: Stainless Steel 304/316/316L and PP Material
Medium Viscosity: ≤2.0Pa.s
Ambient Vibration: Frequency ≤25Hz Amplitude ≤0.5mm
Follow-up Speed: ≤0.05m/s
Flange Standard: HG20592～20635-97
Alarm and Remote Transmission Device: Technical parameters are the same as UHZ-25 series

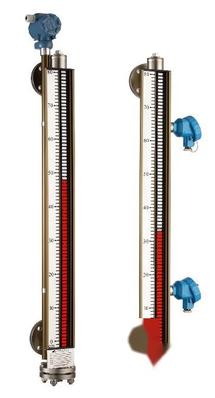

This product consists of a main body (composed of upper and lower pipes), a flip box (composed of red and white two-color magnetic small flaps), a float (composed of magnets, top rods, and float tubes), and a level transmitter, as illustrated. The working principle is as follows: The float in the container (developed according to different media and pressures) floats up and down with the change in liquid level in the lower pipe and moves the magnet up and down in the upper pipe via the top rod, causing the external flap to flip and indicate the liquid level height with red and white colors. At the same time, the level transmitter sends the liquid level signal to the control center for liquid level indication and control, and it can also be centrally monitored through a computer.
