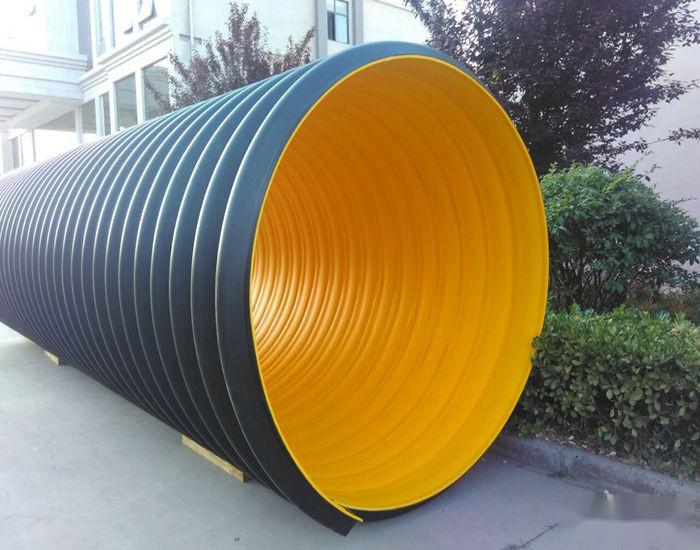

Application Value of Steel Belt Corrugated Pipe
Steel Belt Corrugated Pipe is made of high-density polyethylene (PE) as the base, using steel belts coated with adhesive resin to form a wavy shape as the main supporting structure, which is then wrapped and compounded with polyethylene material to form a double-walled spiral corrugated pipe. Professional Manufacturer - Luoyang Guorun Pipeline Co., Ltd. is a specialized manufacturer of steel belt corrugated pipes. Quality determines success or failure; the products we provide are our greatest motivation and goal.
Welcome to visit our factory! Business Inquiry: Manager Sun 13698887149!
Steel Belt Corrugated Pipe Product Performance:
1. Impact Resistance: The pipe wall adopts a 'U' shaped structure, which is impact-resistant and pressure-resistant, does not crack under foundation subsidence, and has strong recovery after deformation, providing good adaptability to the foundation;
2. Cold Resistance: The pipe will not crack or leak water due to freezing or expansion in an environment of -60℃;
3. Chemical Resistance: It is not contaminated or corroded by wastewater and chemicals, and does not corrode due to decaying substances in the soil;
4. Aging Resistance: The pipe is usually black and can withstand direct sunlight during storage and construction;
5. Completely Reliable Ring Stiffness: Due to the elastic modulus ratio of steel and plastic materials being greater than 200 and the weight ratio being greater than 7.85, compared with pure plastic pipes, the steel belt reinforcement easily gives the pipe (especially large-diameter pipes) sufficient safety and reliability in ring stiffness and a relatively high stiffness-to-weight ratio.
6. Convenient Connection: The pipes can be connected outside the trench first and then pushed into the trench with an excavator, reducing construction time and costs;
7. Good Stability of Pipeline System: The circular external rib structure of the pipe not only increases the ring stiffness of the pipe but also has a root resistance effect, solving the tension and top hole problems caused by longitudinal displacement of the pipeline.
8. Excellent Wear Resistance: More wear-resistant than steel pipes and cement pipes, with strong capacity for transporting domestic wastewater and solid waste;
9. Environmental Impact: HDPE is a non-toxic material, harmless to land and the environment, and can be fully recycled.
10. Economic Efficiency: Low construction, management, and maintenance costs;
11. Excellent Drainage Flow: Smooth inner surface reduces friction, allowing for faster drainage. Steel Belt Corrugated Pipe refers to a plastic pipe with a smooth inner wall and a corrugated outer wall (the corrugated shapes can be right-angled, trapezoidal, sinusoidal, etc.), formed by a simultaneous extrusion of the corrugated outer wall and a smooth inner wall through a single melt bonding process. In addition to the corrosion resistance, high insulation, and low flow resistance characteristics of ordinary plastics, it also utilizes special hollow ring stiffness and good strength and toughness. Under the same strength and stiffness requirements, using double-walled corrugated pipes can save 30%-50% of materials compared to ordinary plastic pipes, offering good economic and technical advantages, and is convenient for transportation and installation, reducing the labor intensity of construction personnel, while also lowering the overall cost of the project, with minimal curvature.
