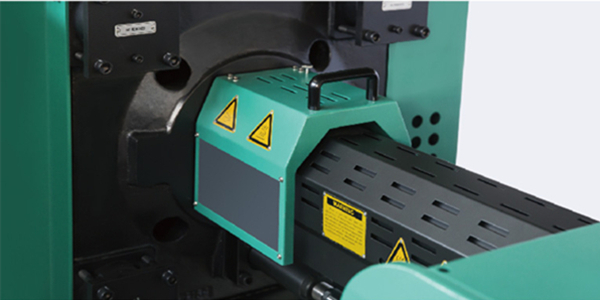

1. The injection components adopt a dual-cylinder balanced design, providing higher injection pressure, a simpler and more stable structure, shorter design space, and a lower failure rate.
2. Increase the injection displacement cylinder; large models adopt a dual injection displacement cylinder structure, effectively preventing leakage from the nozzle during high-speed machine operation due to machine vibration and other factors.
3. The injection guide bushing adopts a graphite liner, enhancing the wear resistance of the bushing, reducing the frequency of lubrication required for the bushing, and effectively improving the cleanliness of the injection components.
4. The injection cylinder and the shot cylinder use low-friction seals to improve the injection response speed and provide stability during injection in complex process conditions.
5. The bridge-type platen is designed as a whole, suitable for plasticizing components with different length-to-diameter ratios.
Solid bar
High Rigidity Template
Large Machine Tail Plate Flange
Gear adjustment
Large Machine Graphite Steel Bushing
Injection Molding Components
1. The front connecting rod adopts a monolithic structure, which enhances the rigidity of the connecting rod and ensures consistency in its machining dimensions. This can reduce the fit clearance between the pin shaft and the cylinder liner, ensuring the precision of the connecting rod mechanism and improving its service life.
2. The clamping head plate adopts a box-type structural design, with increased thickness of the template and reinforcement of internal ribs, enhancing the rigidity of the head plate and more effectively reducing the bending deformation of the tie bars when under force.
3. The unique tail plate flange design of medium and large models, when the tail plate deforms under force, generates a counter-torque through the cooperation and support between the tail plate flange and the tie rods, thereby reducing the deformation of the tail plate.
4. The gear mold adjustment structure offers high repeatability and strong mold clamping force.
Utilize a powerful and efficient dual-cylinder injection
Design of Balanced Dual Ejection Oil Cylinders for Medium and Large Machines
Unlubricated graphite bushing
Use low-friction seals
Movable bridge-type injection unit base
Low noise

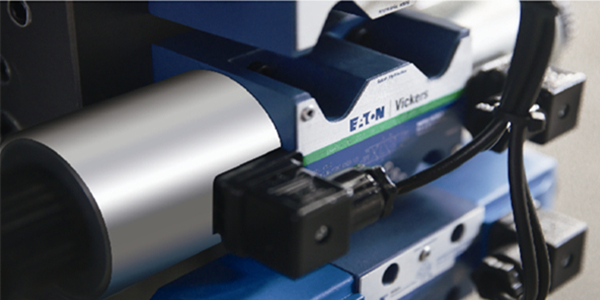

The hydraulic control structure is designed reasonably with high integration, and unique noise reduction treatment ensures smooth and quiet machine operation, making the working environment more comfortable.
Low fuel consumption
The reduction in oil temperature significantly extends the service life of the seals. The oil cleaning system can quickly and effectively filter out contaminants, ensuring the service life of hydraulic components.
Control system
1. The user-friendly computer interface is simple to operate, and the control box has a rotatable design for easy operation.
2. Optimized electrical design, using well-known brand dedicated injection molding machine computers, with fast response time and reliable control.
3. All data during the equipment production process is fully preserved, and the data lists, diagrams, and other presentation methods are entirely consistent with actual application needs.
Servo energy-saving system
1. Real-time monitoring of multiple signals such as actual pressure, flow, driver output current, and load rate is achieved through high-speed communication via the bus.
2. Large and medium-sized injectors use a dual-pump or multi-pump confluence method, employing special control technology for the servo to achieve perfect synchronization of servo oil pump control, resulting in an optimal effect of multiple oil pumps working in unison.
Servo drive features
Energy-saving effect test case
Test Product: Fast Food Container Raw Material: PP Weight: 21g Wall thickness: 0.43mm Cavity count: 1 out 2
Test Conditions: Three Machines The oil pump displacement is the same; Parameter settings are the same; normal production for several hours; Wait for the oil temperature to stabilize at 40℃; Electricity consumption monitoring
After practical testing, the S8 servo energy-saving injection molding machine saves 45.5% energy compared to traditional fixed displacement pump injection molding machines during production, with a maximum energy saving of up to 80%.
